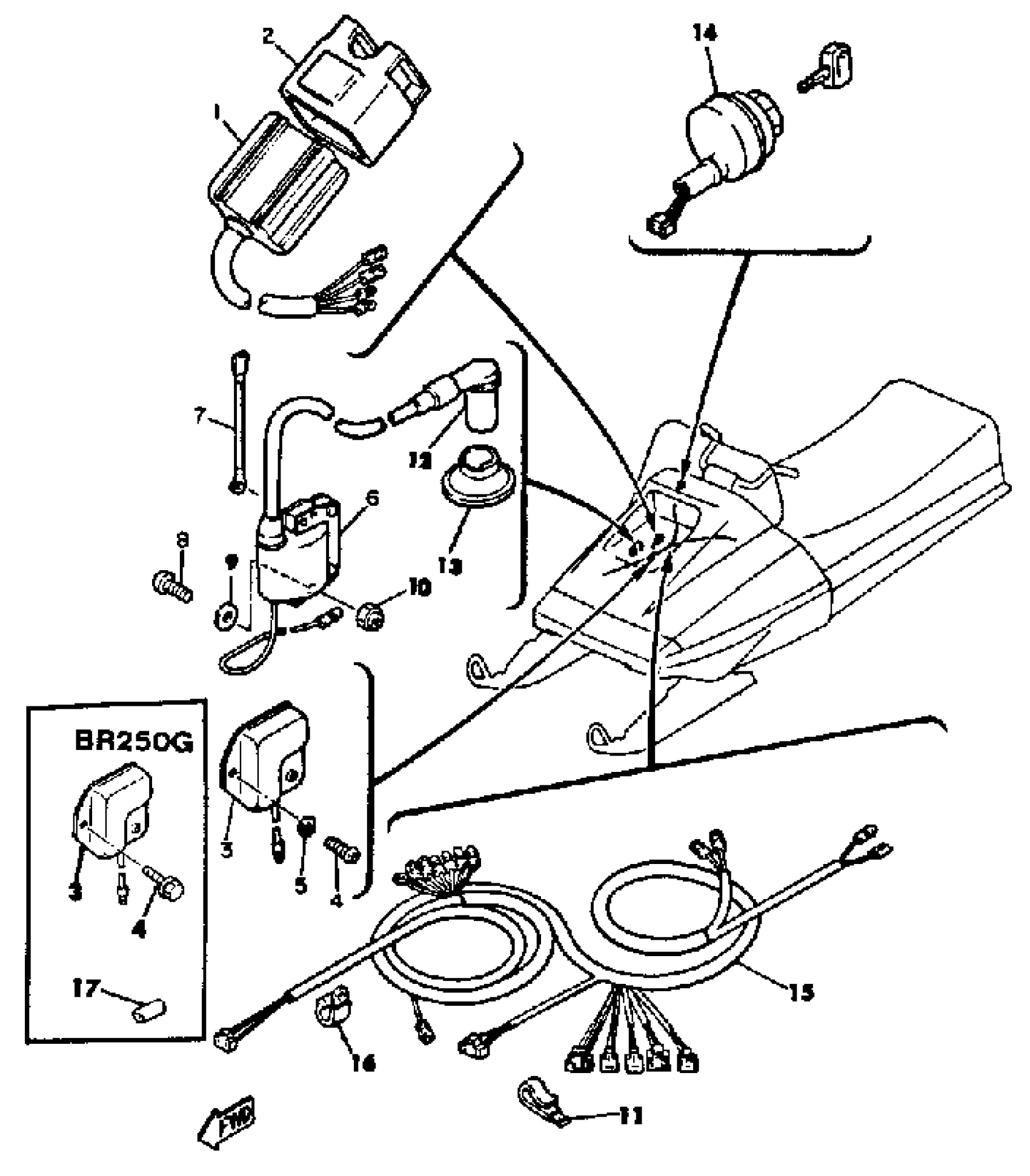

Find the part on the Electrical 1 BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha BR250F Electrical 1 BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8R4-85540-M0-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

4

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

IGNITION COIL ASSEMBLY

8X8-82310-20-00

1
Out of stock

7

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

8

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

12

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

13

SEAL

8G5-82372-00-00

1

$4.66

In stock

14

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

15

WIRE HARNESS ASSEMBLY

8R4-82590-20-00

1
Out of stock

16

CLAMP

90465-08028-00

1

$4.62

In stock

17

HOSE

90446-07182-00

1
Out of stock
