1987 Kawasaki Big Wheel Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

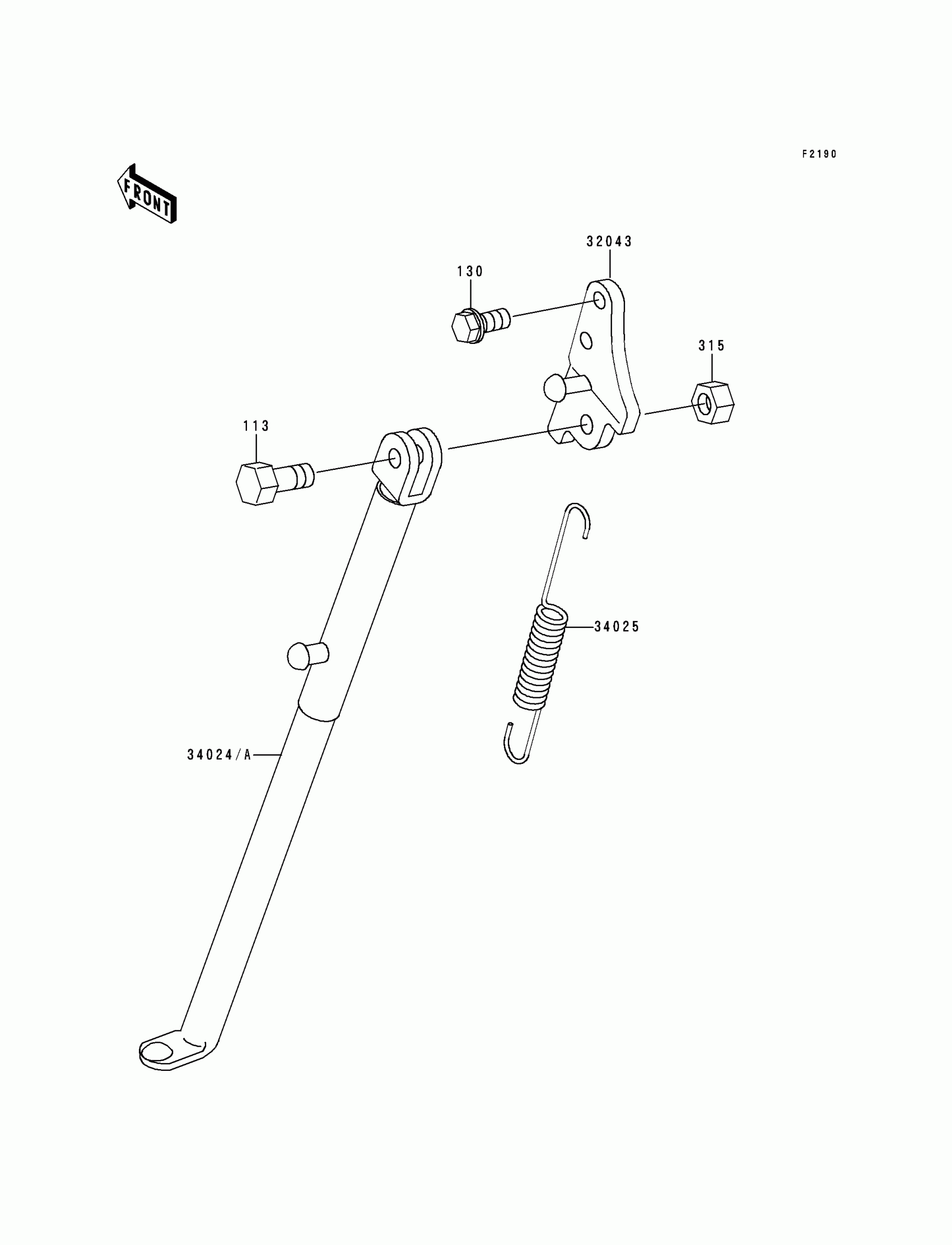

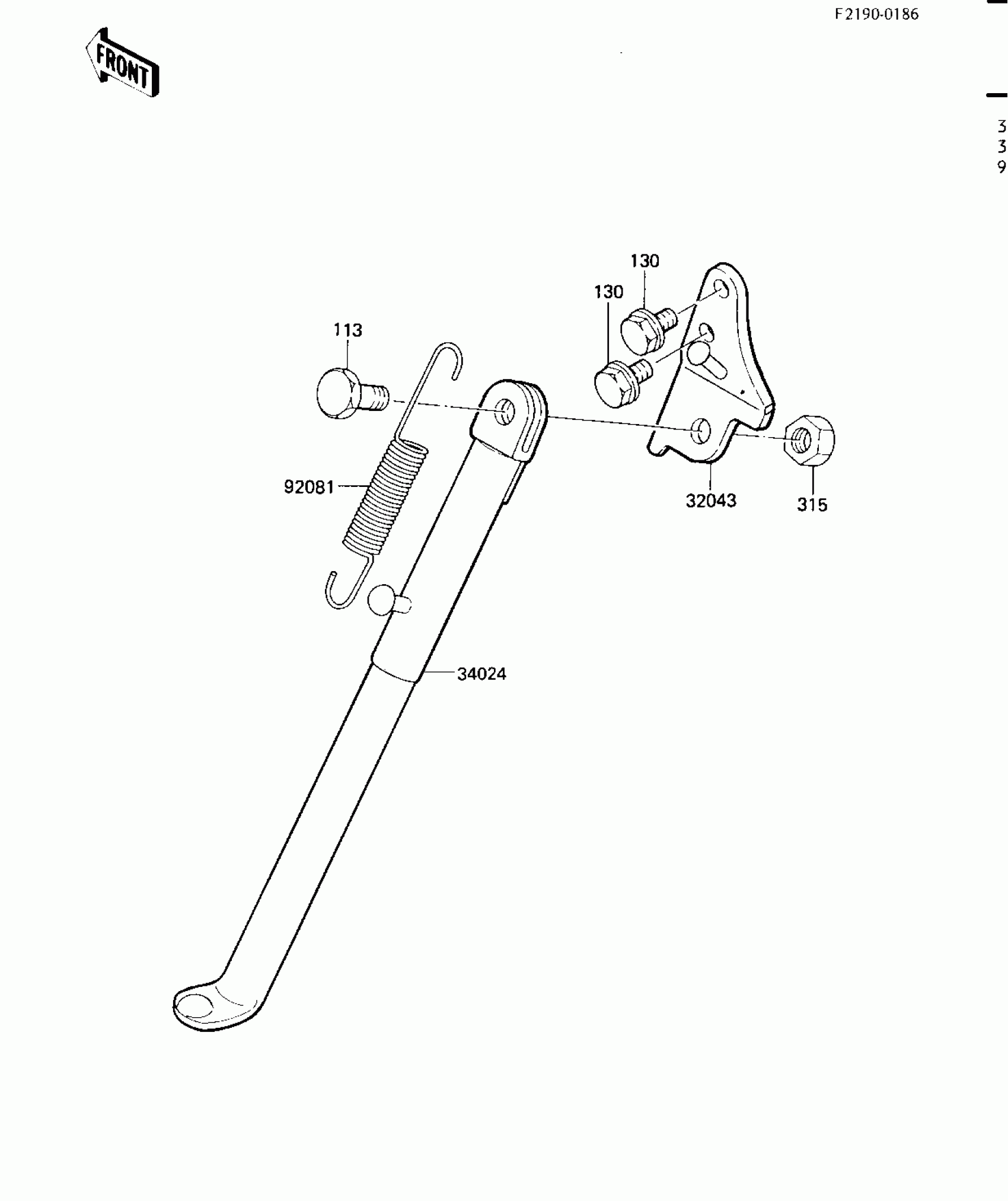

1987 Kawasaki Big Wheel Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE,SILVER

32043-1318-CE

1
Out of stock

34024

STAND-SIDE,SILVER NO.25

34024-1242-CE

1
Out of stock

92081

SPRING,STAND

34025-005

1

$6.03

In stock

113

BOLT,HEX HEAD,10X25

113G1025

1
Out of stock

130

BOLT-FLANGED,8X12

130G0812

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock
