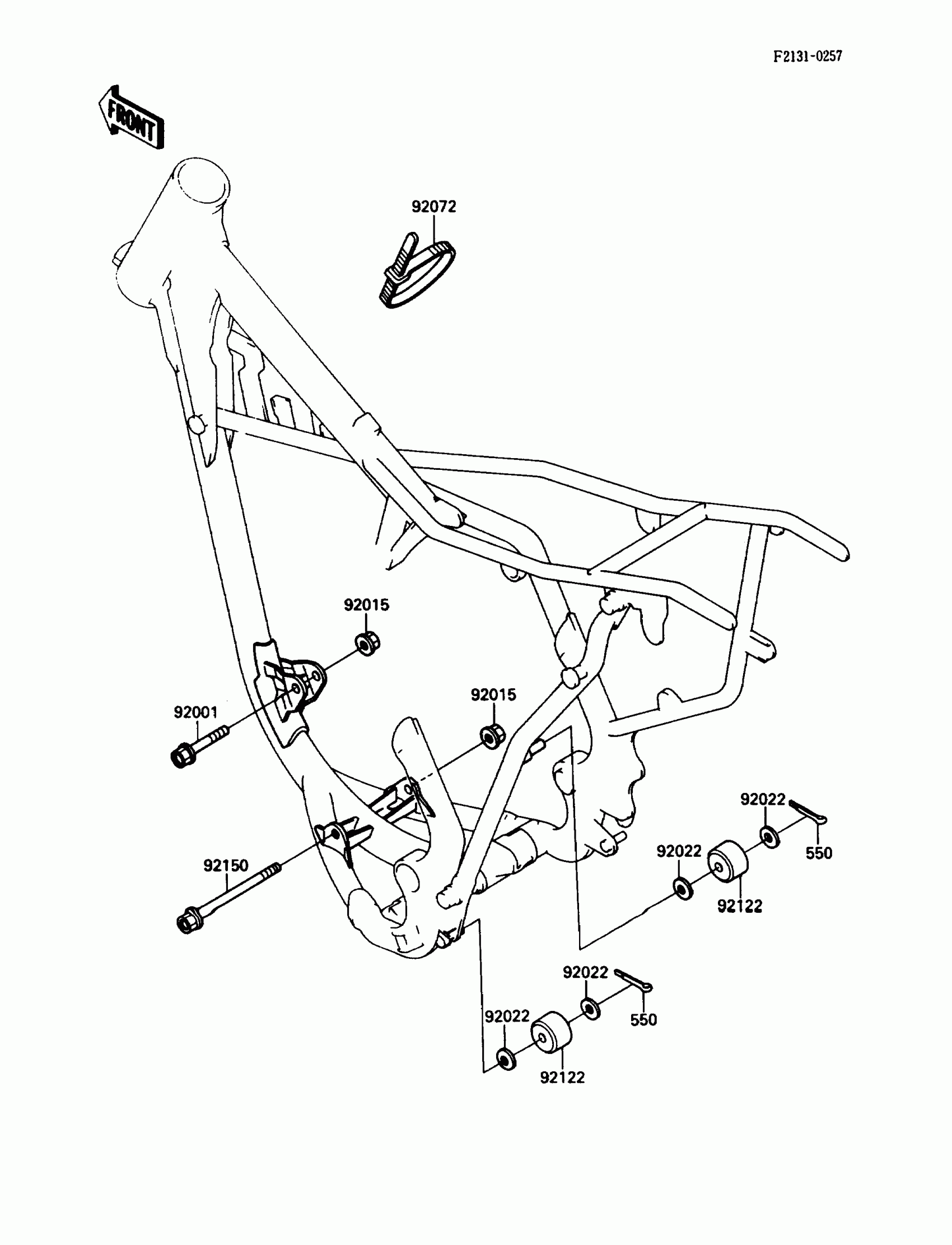

Kawasaki Big Wheel FRAME FITTINGS Diagram

Description

Price

92001

BOLT,8X63

92002-1215

$8.54

92001A

BOLT,8X105

92001-1367

Unavailable

92001B

BOLT,6X43

92002-1881

$5.76

92002

BOLT,8X16

92001-1897

$4.92

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,10.5X20X1

92022-239

$3.12

92027

COLLAR,6.5X10X14.1

92027-1183

$4.37

92037

CLAMP,RESERVOIR TANK

92037-1688

$15.17

92072

BAND,L=123

92072-030

$3.97

92075

DAMPER,RESERVOIR TANK

92075-1760

Unavailable

92122

ROLLER,CHAIN GUIDE

92122-1030

$35.15

550

PIN-COTTER,2.5X15

550D2515

$0.51
