1987 Kawasaki Big Wheel Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

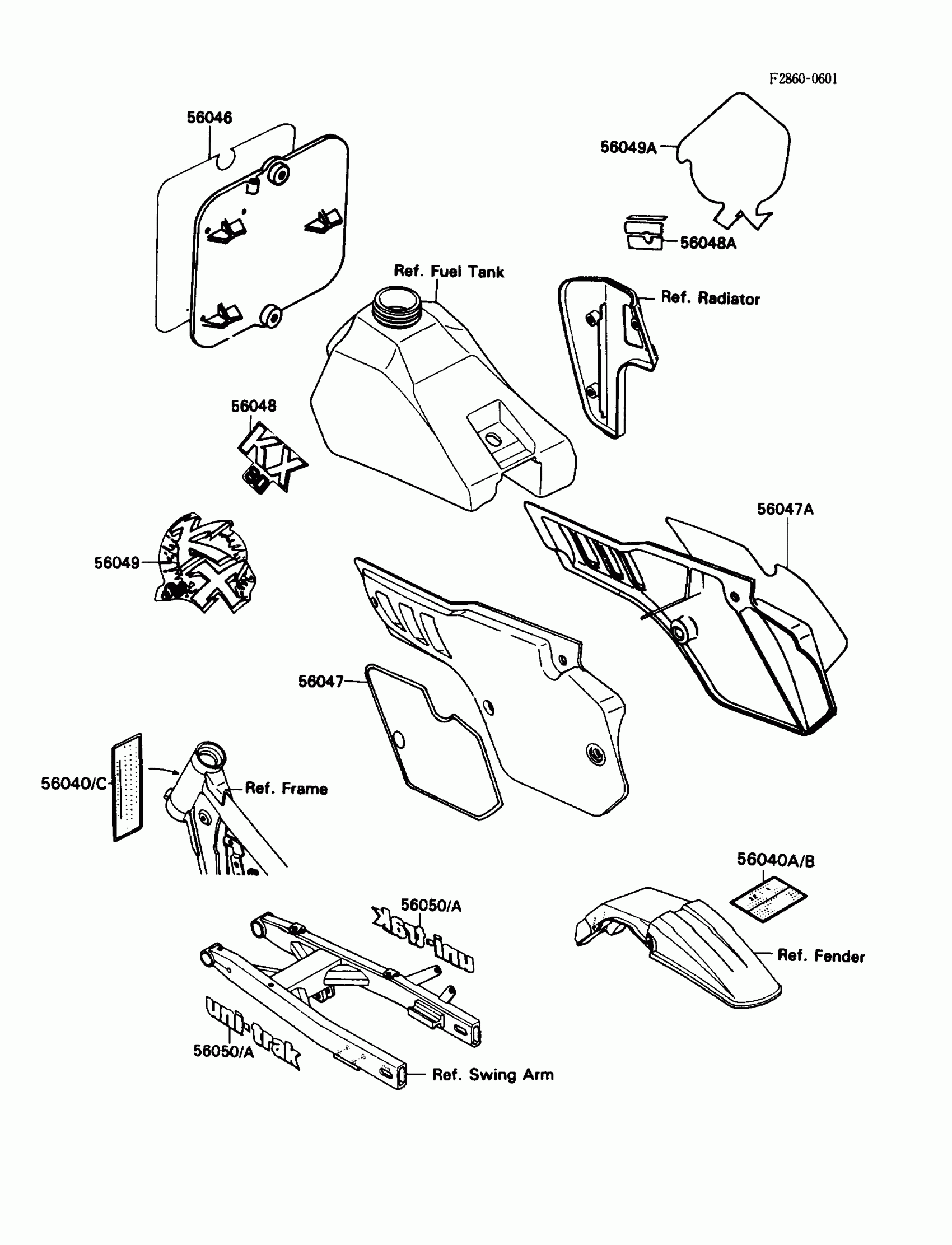

1987 Kawasaki Big Wheel Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56014

EMBLEM,FUEL TANK

56014-1145

1
Out of stock

56014A

EMBLEM,SHROUD,RH

56014-1146

1
Out of stock

56018

MARK,SWING ARM,UNI-TRAK

56018-1904

1
Out of stock

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock
← Frame Fittings Number Plate →
