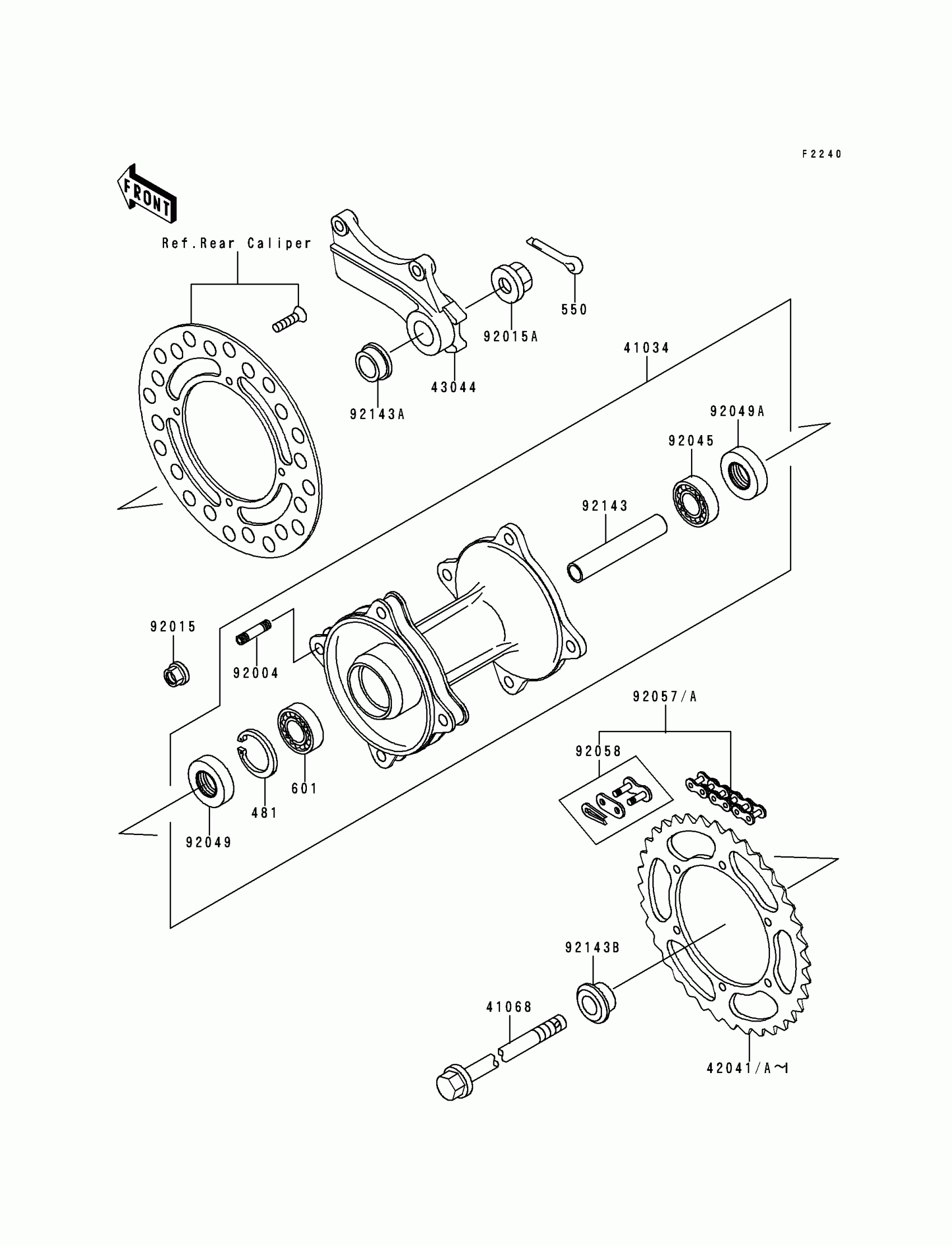

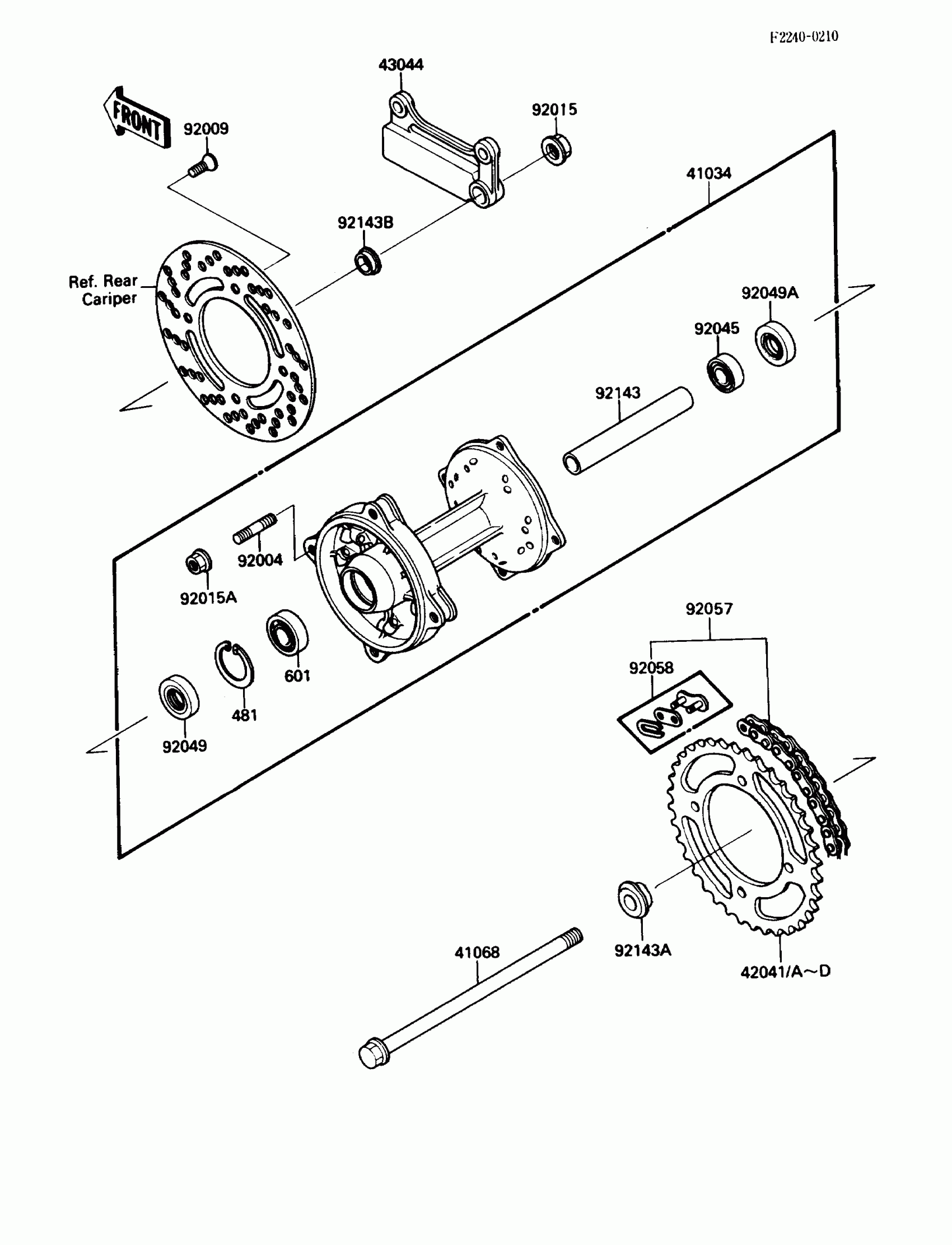

Find the part on the Rear Hub diagram for your 1988 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Big Wheel Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$344.16

In stock

41068

AXLE,RR

41068-1251

1

$39.12

In stock

42041

SPROCKET-HUB,54T

42041-1223

1
Out of stock

42041A

SPROCKET-HUB,52T

42041-1245

1

$68.50

In stock

42041B

SPROCKET-HUB,53T

42041-1246

1

$68.50

In stock

42041C

SPROCKET-HUB,55T

42041-1247

1
Out of stock

42041D

SPROCKET-HUB,56T

42041-1248

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1073

1

$124.21

In stock

92004

STUD,8X16

92004-1183

1
Out of stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015A

1

$3.38

In stock

92045

1

$24.47

In stock

92049

SEAL-OIL,DD20377

92049-1096

1
Out of stock

92049A

SEAL-OIL,DC17343.5

92049-1290

1
Out of stock

92057

1

$125.17

In stock

92058

JOINT-CHAIN

92058-1053

1
Out of stock

92143

1

$19.59

In stock

92143A

1

$18.64

In stock

92143B

1

$13.03

In stock

481

1

$2.37

In stock

601

1

$23.98

In stock
