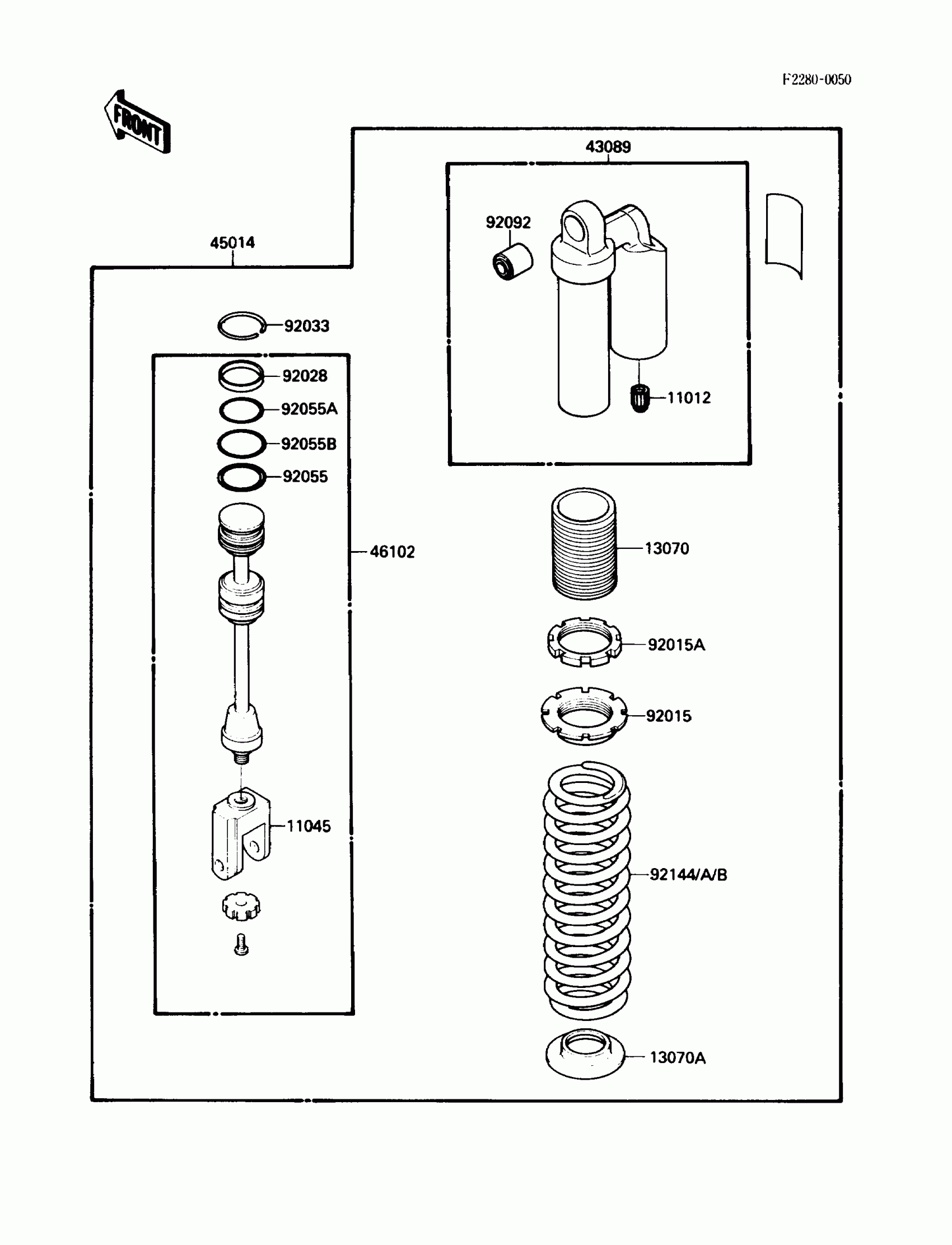

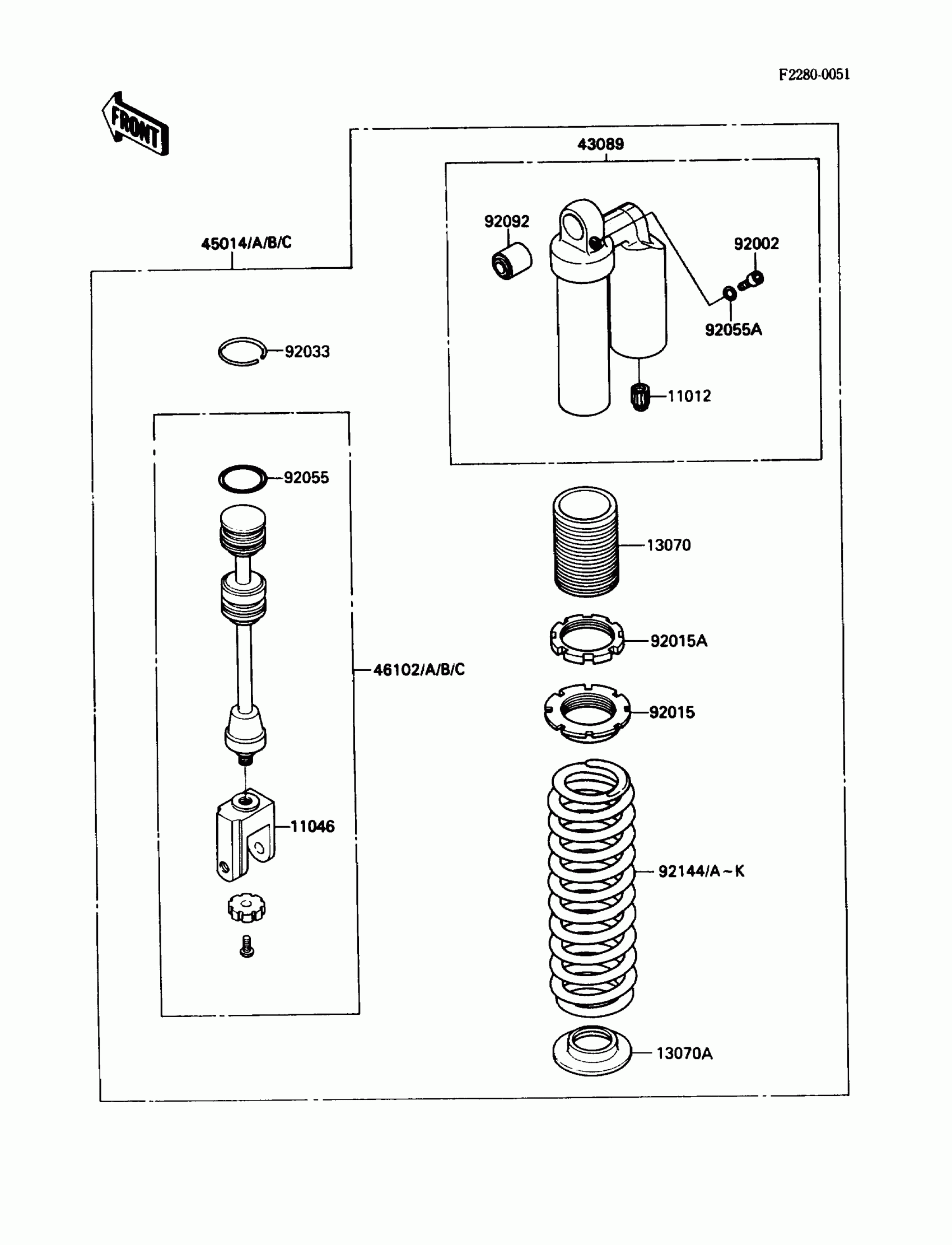

Kawasaki Big Wheel Shock Absorber(s) Diagram

Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.02

11045

BRACKET,PISTON ROD

11045-1409

Unavailable

13070

GUIDE

13070-1184

Unavailable

13070A

GUIDE,SPRING

13070-1193

Unavailable

43089

CYLINDER-SHOCKABSORBER

43089-1124

$288.19

45014

SHOCKABSORBER

45014-1382

$740.76

46102

ROD,SHOCKABSORBER

46102-1231

$431.56

92015

NUT,SPRING ADJUST

92015-1679

$35.79

92015A

NUT,SPRING ADJUST LOCK

92015-1713

$32.17

92028

BUSHING,ROD

92028-1412

$21.56

92033

RING-SNAP,SHOCKABSORBER

92033-1211

$3.81

92055

RING-O,ROD

92055-1334

$7.25

92055A

RING-O,ROD

92055-1335

Unavailable

92055B

RING-O,ROD

92055-1336

$7.56

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$30.51

92144

SPRING,SHOCKABSORBER,K=3.2

92144-1208

$180.80

92144A

SPRING,SHOCKABSORBER,K=3.0

92144-1296

$202.93

92144B

SPRING,SHOCKABSORBER,K=3.4

92144-1297

$203.33
