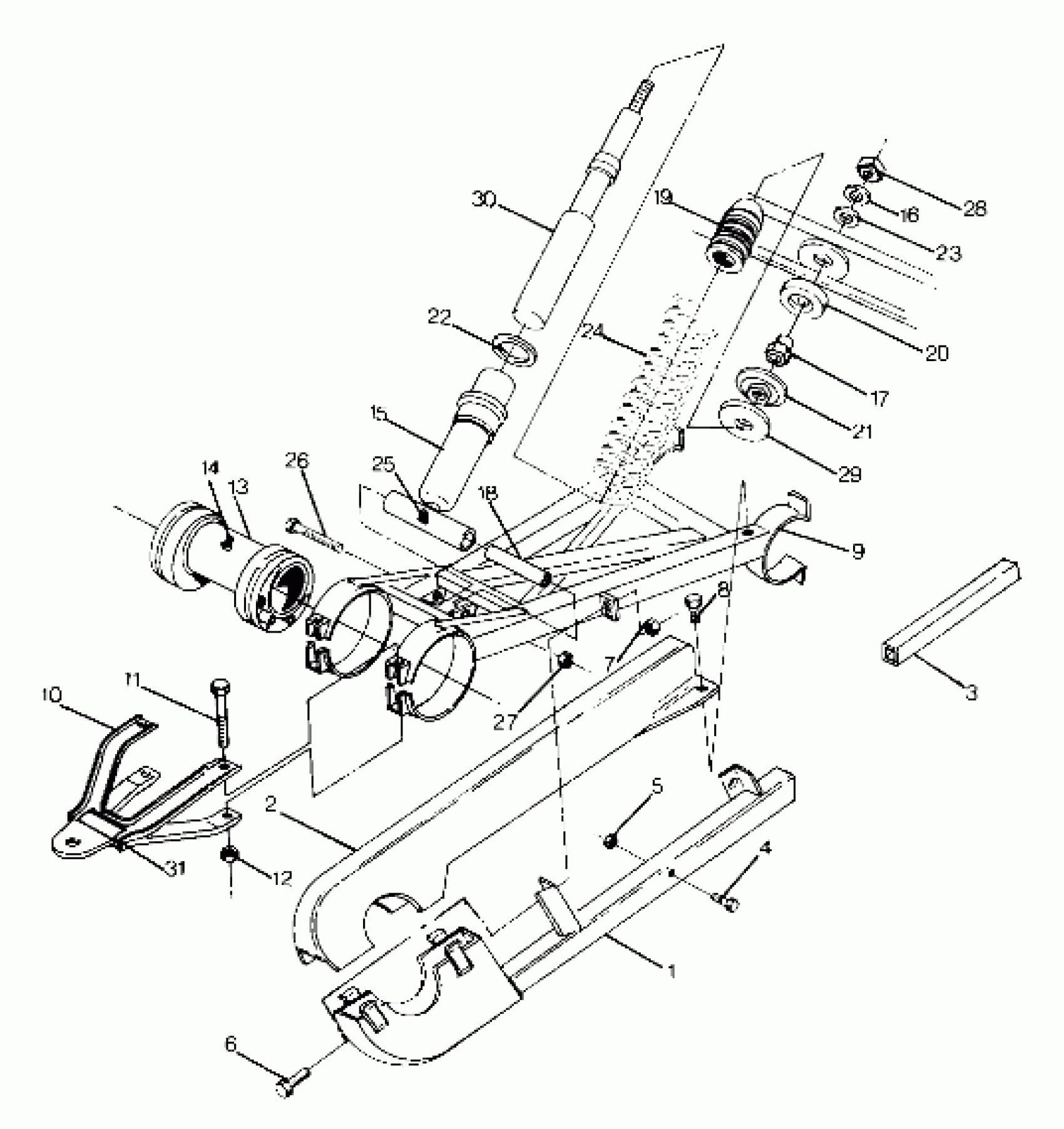

Polaris BIG BOSS 4X6 - W908627 Swing Arm Weldment (Rear) Updated 5/90 (4917741774027A) Diagram

#

Description
Price

1

GUARD, CHAIN, WELD. Substituted by 1040184-067

1040184

Unavailable

2

GUARD, TOP CHAIN

5431101

$61.90

3

GUIDE, R.CHAIN

5521207

Unavailable

4

SCREW(10)

7511987

Unavailable

5

NUT(10)

7541925

$1.49

6

BOLT(10)

7512325

$2.39

7

NUT, NYLOK(10)

7542327

$4.79

8

SCREW(10)

7512252

Unavailable

9

S.ARM EXT. WELD. Substituted by 1580036-067

1580036

Unavailable

10

HITCH WELD. Substituted by 2200472

1040162-067

Unavailable

11

BOLT(10)

7512569

Unavailable

12

NUT,FLANGE(10)

7542522

$5.59

13

HOUSING, AXLE

5130663

Unavailable

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

15

STRUT&SHOCK ASM,REAR Substituted by 1580051-132

1580038

Unavailable

16

WASHER(10)

7555749

$1.49

17

SPACER, THREADED

5130631

Unavailable

18

SPACER

5332971

Unavailable

19

BUMPER

5410535

Unavailable

20

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

21

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

22

ADAPTER,SPRING,SEAT

5630351

Unavailable

23

SPACER-RUBBER

5810291

$3.99

24

SPRING,COMP,REAR

7041204-067

$64.99

25

FITTING-LUBE.(10) Substituted by 7080561

7080220

$4.76

26

BOLT(10)

7512531

Unavailable

27

NUT, LOCK,(10)

7542503

$10.39

28

NUT,FLEX LOC(10)

7542507

$3.99

29

WASHER(10)

7555740

$1.59

30

SHOCK,FR.STRUT Substituted by 7041451

7041211

Unavailable

31

DECAL, HITCH Substituted by 7078261

7072533

Unavailable
