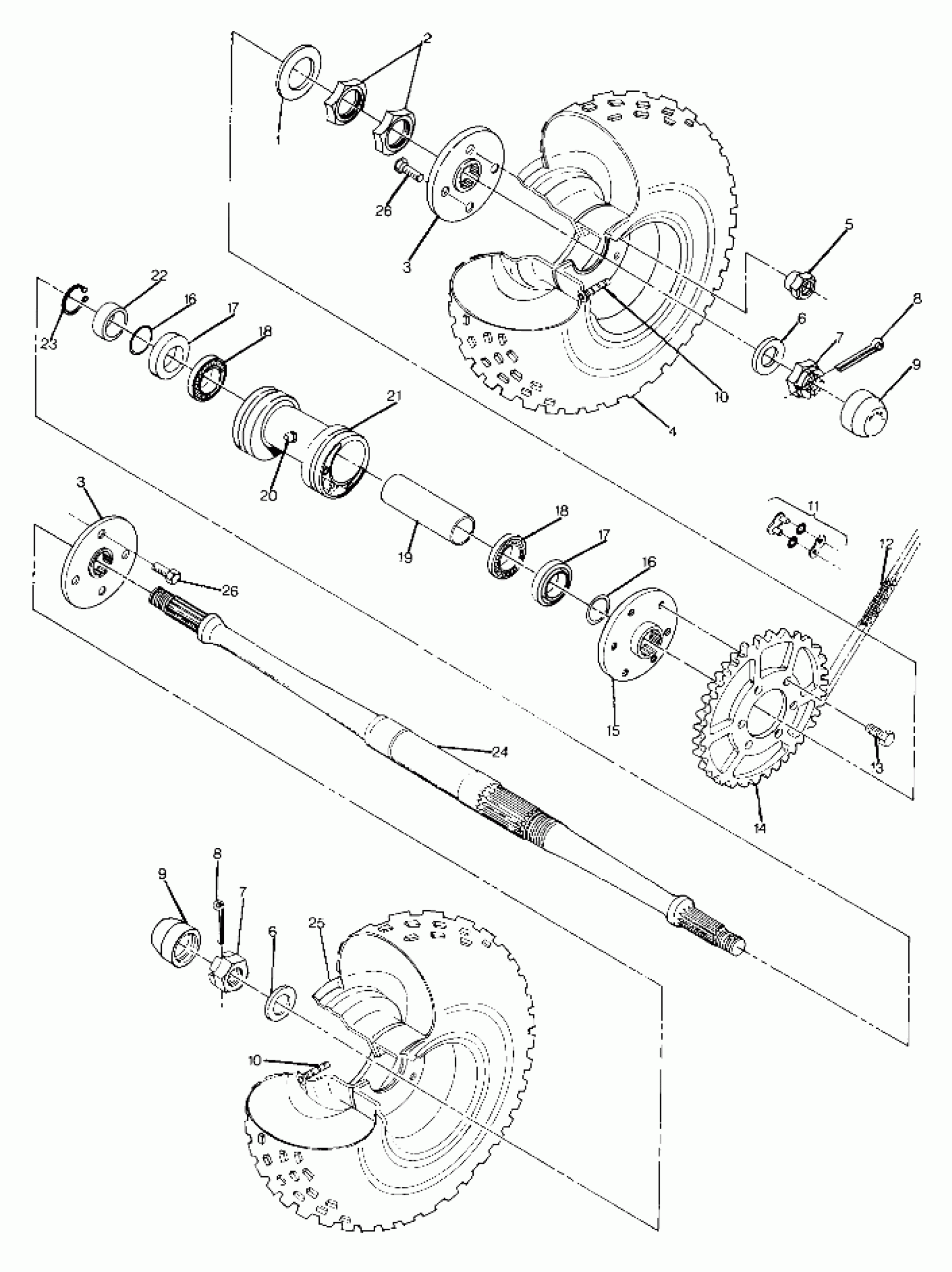

Polaris BIG BOSS 4X6 - W908627 Rear Wheel Drive Assembly (4917741774021A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

HUB, WHEEL Substituted by 2200341

5130664

$93.08

3

HUB, WHEEL Substituted by 2200341

5130664

$93.08

4

TIRE,REAR,(4X6)

5410539

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

$7.19

6

WASHER(10)

7555745

$7.19

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.79

8

PIN, COTTER(10)

7661404

$4.79

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

10

VALVE-RIM

1525017

$5.59

10

VALVE-RIM

1525017

$5.59

11

CONNECTOR LINK

3225024

$19.99

12

CHAIN,DRIVE,108P (Includes Connector)

3224045

Unavailable

13

BOLT(10)

7515488

Unavailable

14

SPROCKET, 30T

3222047

$189.99

15

HUB, SPROCKET Substituted by 1380025-067

1380025

Unavailable

15

HUB,SPKT,EXT.BLK. Substituted by 1380026

1380026-067

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR

5020504

$239.99

25

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

1520128

Unavailable

26

BOLT, WHEEL(10)

7512673

$3.19

26

BOLT, WHEEL(10)

7512673

$3.19
