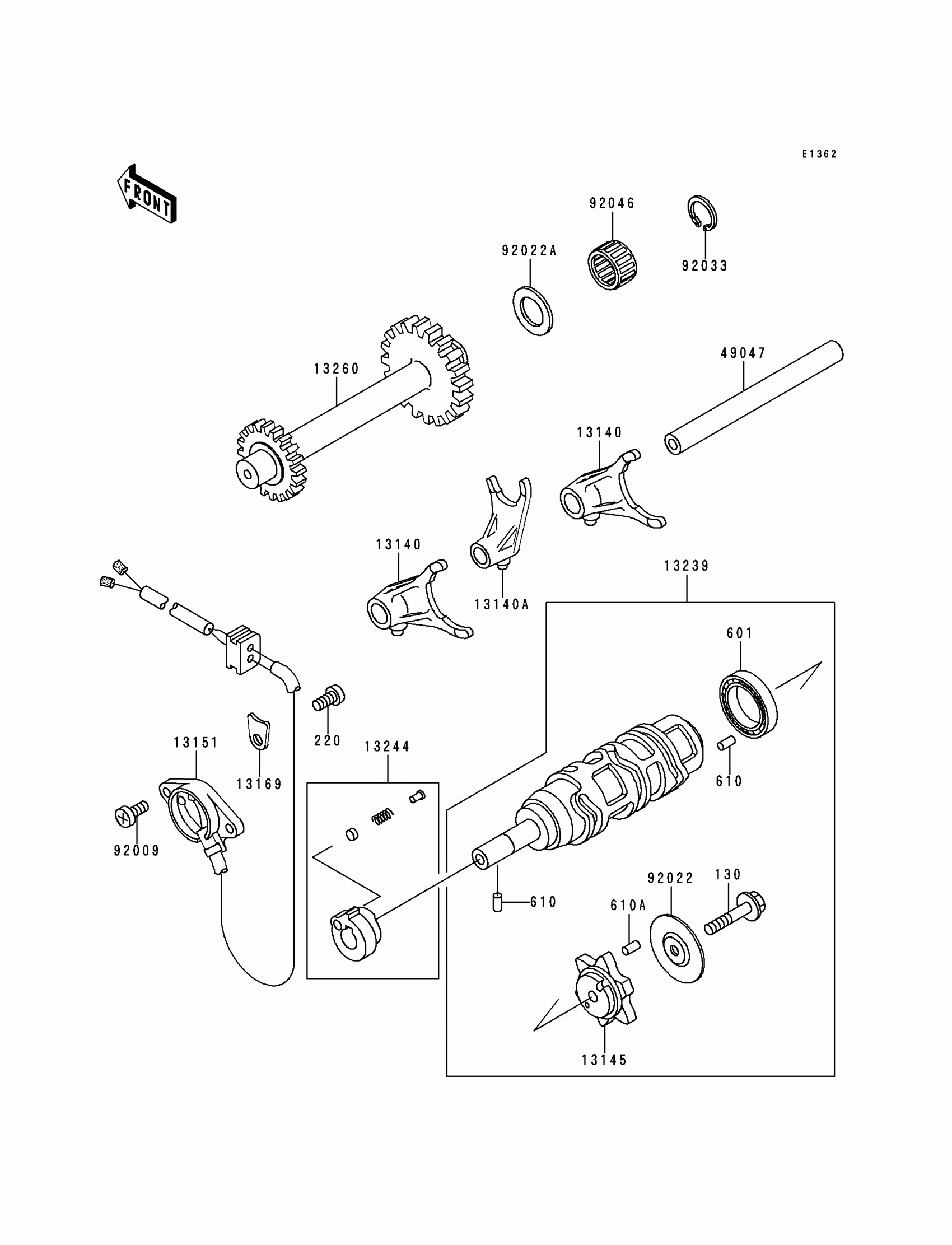

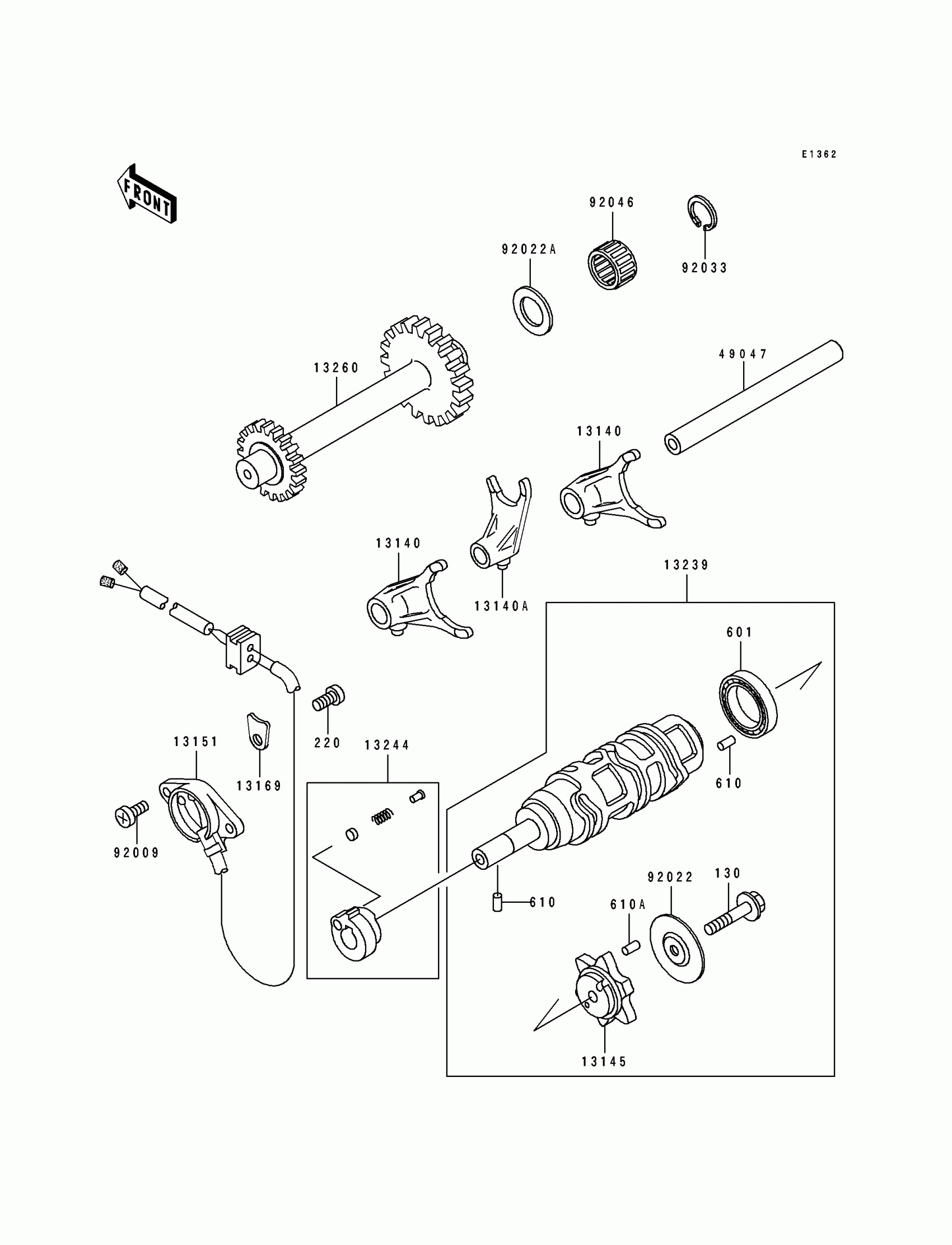

Kawasaki Bayou 400 4X4 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT

13140-1210

Unavailable

13140A

FORK-SHIFT

13140-1211

Unavailable

13145

CAM-CHANGE DRUM

13145-1064

$47.94

13151

SWITCH-COMP

13151-1077

Unavailable

13169

PLATE,HARNESS

13169-1788

$4.68

13239

DRUM-ASSY-CHANGE

13239-1170

Unavailable

13244

STOPPER-ASSY,REVERSE

13244-1055

Unavailable

13260

GEAR,REVERSE,22T&30T

13260-1220

Unavailable

49047

ROD-SHIFT

49047-1085

Unavailable

92009

SCREW,5X14

92009-1341

$3.75

92022

WASHER,CHANGE DRUM

92022-1886

$6.71

92022A

WASHER,17.3X28X1

92022-255

$6.55

92033

RING-SNAP

92033-032

$3.78

92046

BEARING-NEEDLE

92046-1184

$17.18

130

BOLT-FLANGED,6X35

130G0635

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

601

BEARING-BALL

601A6005

$10.48

610

ROLLER,4X6

610A0406

$3.29

610A

ROLLER,4X12

610A0412

$4.85
