1995 Kawasaki Bayou 400 4X4 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

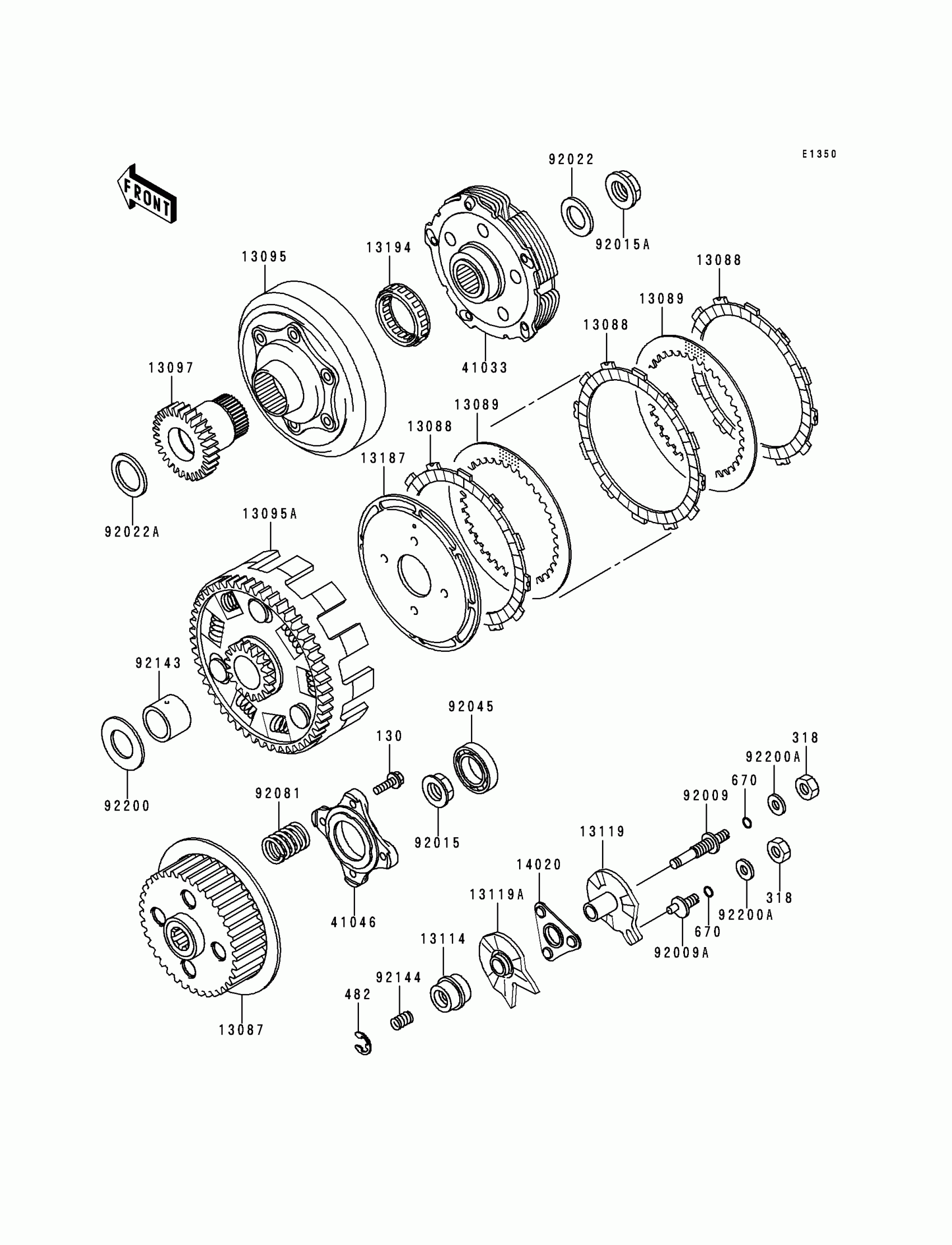

1995 Kawasaki Bayou 400 4X4 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-1142

1
Out of stock

13088

PLATE-FRICTION

13088-1091

1
Out of stock

13089

PLATE-CLUTCH,T=1.6

13089-1095

1
Out of stock

13095

HOUSING-COMP-CLUTCH,FRONT

13095-1242

1
Out of stock

13095A

HOUSING-COMP-CLUTCH

13095-1243

1
Out of stock

13097

GEAR-PRIMARY SPUR,CLUTCH,29T

13097-1273

1
Out of stock

13114

PUSHER-CLUTCH

13114-1060

1
Out of stock

13119

CAM-RELEASE

13119-1067

1
Out of stock

13119A

CAM-RELEASE

13119-1070

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1081

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1093

1
Out of stock

14020

RETAINER,CLUTCH RELEASE

14020-1092

1
Out of stock

41033

HUB-ASSY,CLUTCH

41033-1931

1
Out of stock

41046

HOUSING-BEARING

41046-1063

1
Out of stock

92009

SCREW

92009-1525

1
Out of stock

92009A

SCREW

92009-1526

1
Out of stock

92015

NUT,16MM

92015-1581

1
Out of stock

92015A

NUT,20MM

92015-1880

1
Out of stock

92022

WASHER,20.5X34X1.4

92022-168

1
Out of stock

92022A

WASHER,27.3X38X1.5

92022-1683

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92081

SPRING,CLUTCH

92081-1848

1
Out of stock

92143

COLLAR,CLUTCH

92143-1576

1
Out of stock

92144

SPRING

92144-1272

1
Out of stock

92200

WASHER,22.2X34X4.5

92200-1136

1
Out of stock

92200A

WASHER,8.5X18X2.3

92200-1213

1
Out of stock

130

BOLT-FLANGED,6X20

130P0620

1
Out of stock

318

NUT-HEX-SMALL,8MM

318B0800

1
Out of stock

482

CIRCLIP-TYPE-E,7MM

482J7000

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock
