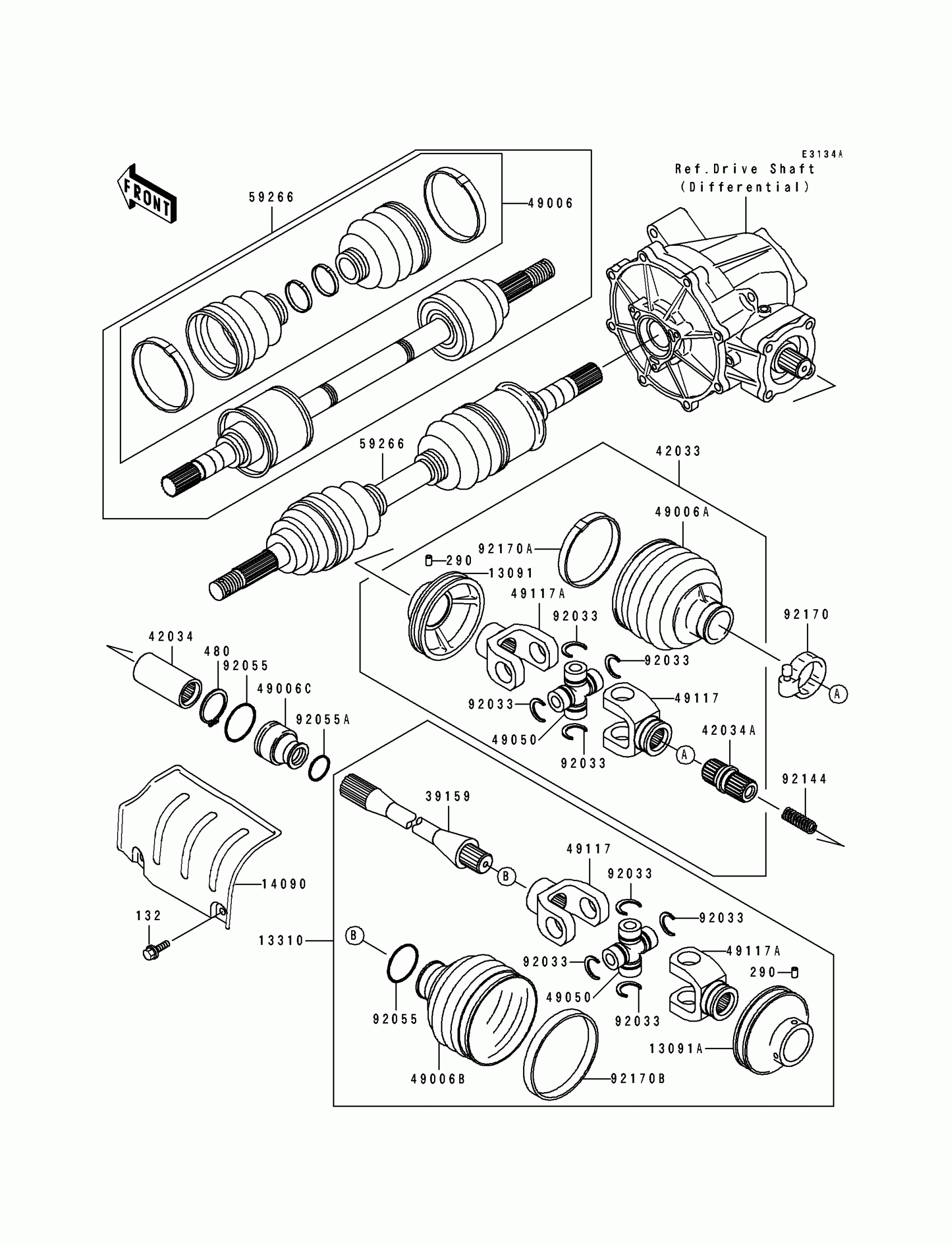

Kawasaki Bayou 400 4X4 Drive Shaft(Front)(KLF400-B3) Diagram

Description

Price

13091

HOLDER

13091-1863

Unavailable

13091A

HOLDER

13091-1892

Unavailable

13310

SHAFT-ASSY,DRIVE

13310-1013

Unavailable

14090

COVER

14090-1515

Unavailable

39159

SHAFT-DRIVE

39159-1080

Unavailable

42033

COUPLING-ASSY

42033-1175

$115.08

42034

COUPLING

42034-1103

Unavailable

42034A

COUPLING

42034-1127

$61.05

49006

BOOT,BJ&DOJ SET

49006-1252

$152.37

49006A

BOOT,COUPLING

49006-1293

$34.85

49006B

BOOT,DRIVE SHAFT

49006-1294

$28.54

49006C

BOOT,DRIVE SHAFT

49006-1295

$13.30

49050

SPIDER

49050-1057

$116.26

49117

YOKE

49117-1075

Unavailable

49117A

YOKE

49117-1076

Unavailable

59266

JOINT-BALL

59266-1096

$664.21

92033

RING-SNAP

92033-1283

$7.69

92055

RING-O,19.5X3.0

92055-1451

$3.72

92055A

RING-O,15X3.0

92055-1531

Unavailable

92144

SPRING

92144-1276

Unavailable

92170

CLAMP,COOLING HOSE

92170-1284

$6.51

92170A

CLAMP

92170-1316

Unavailable

92170B

CLAMP

92170-1519

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

290

SCREW-SET-SOCKET

290Q0508

$2.97

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.97
