1986 Kawasaki Bayou 300 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

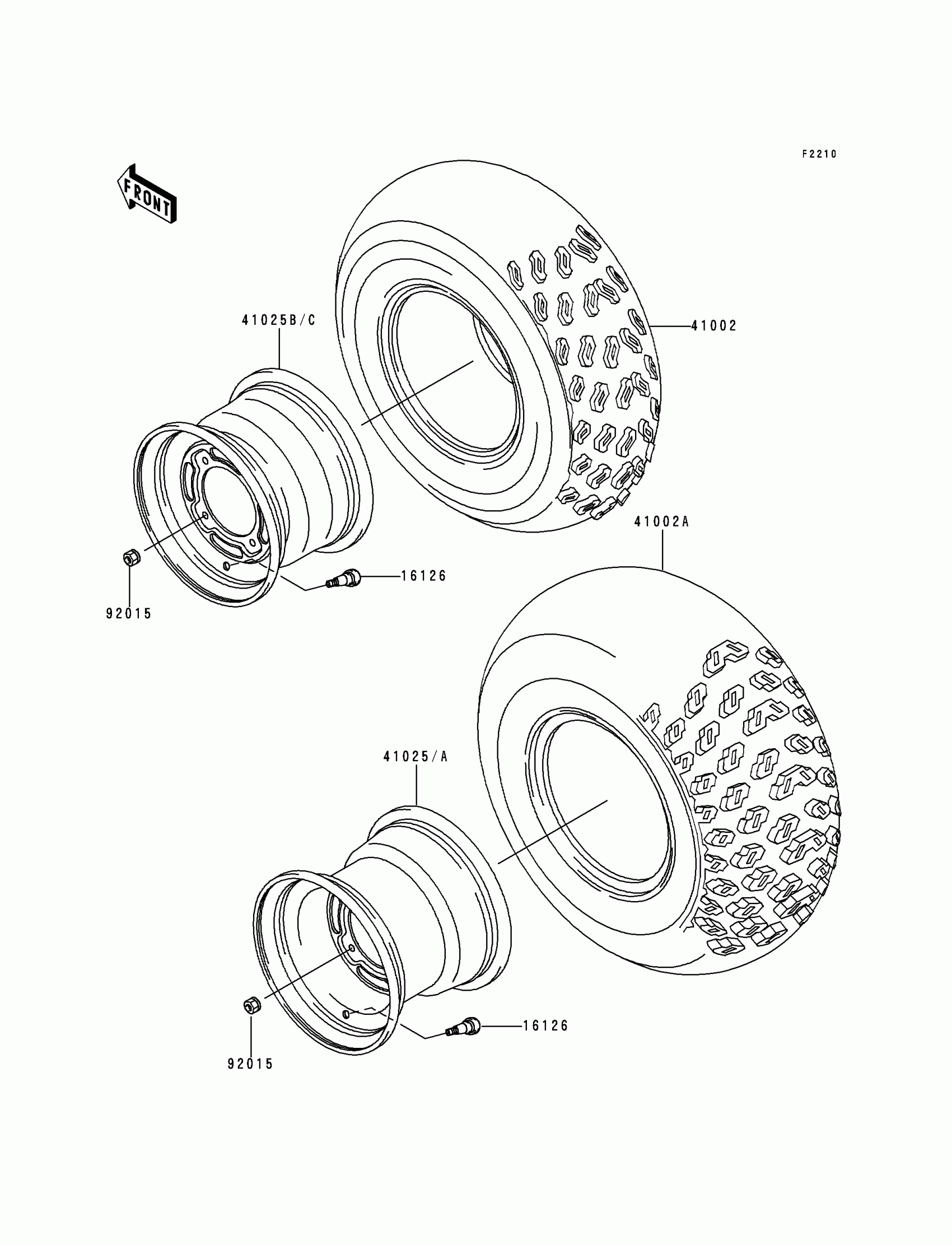

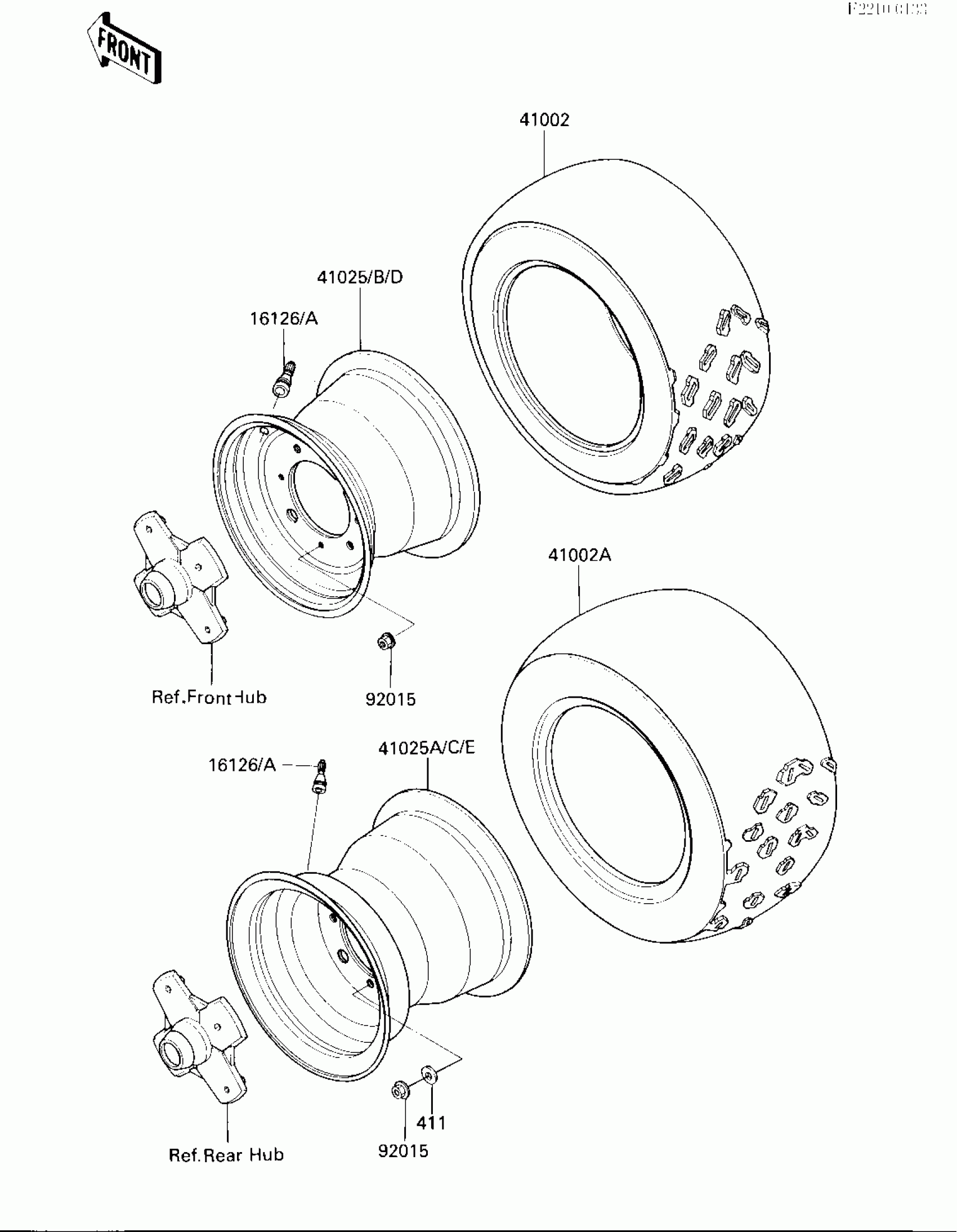

1986 Kawasaki Bayou 300 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,TIRE

16126-1140

1
Out of stock

16126A

VALVE

16126-4001

1
Out of stock

41002

TIRE,FR,AT22X9-10,KT761(D)

41002-1525

1
Out of stock

41002A

1

$155.47

In stock

41025

RIM,FR,10X7.00,AL

41025-1124

1
Out of stock

41025A

RIM,RR,10X8.50,AL

41025-1125

1
Out of stock

41025B

RIM-FRONT-SIL

41025-1128-F2

1
Out of stock

41025C

RIM-REAR-SILVER

41025-1129-F2

1
Out of stock

41025D

41025-1128-F2 (Canada)

41025-1152-F2

1
Out of stock

41025E

41025-1129-F2 (Canada)

41025-1153-F2

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock
