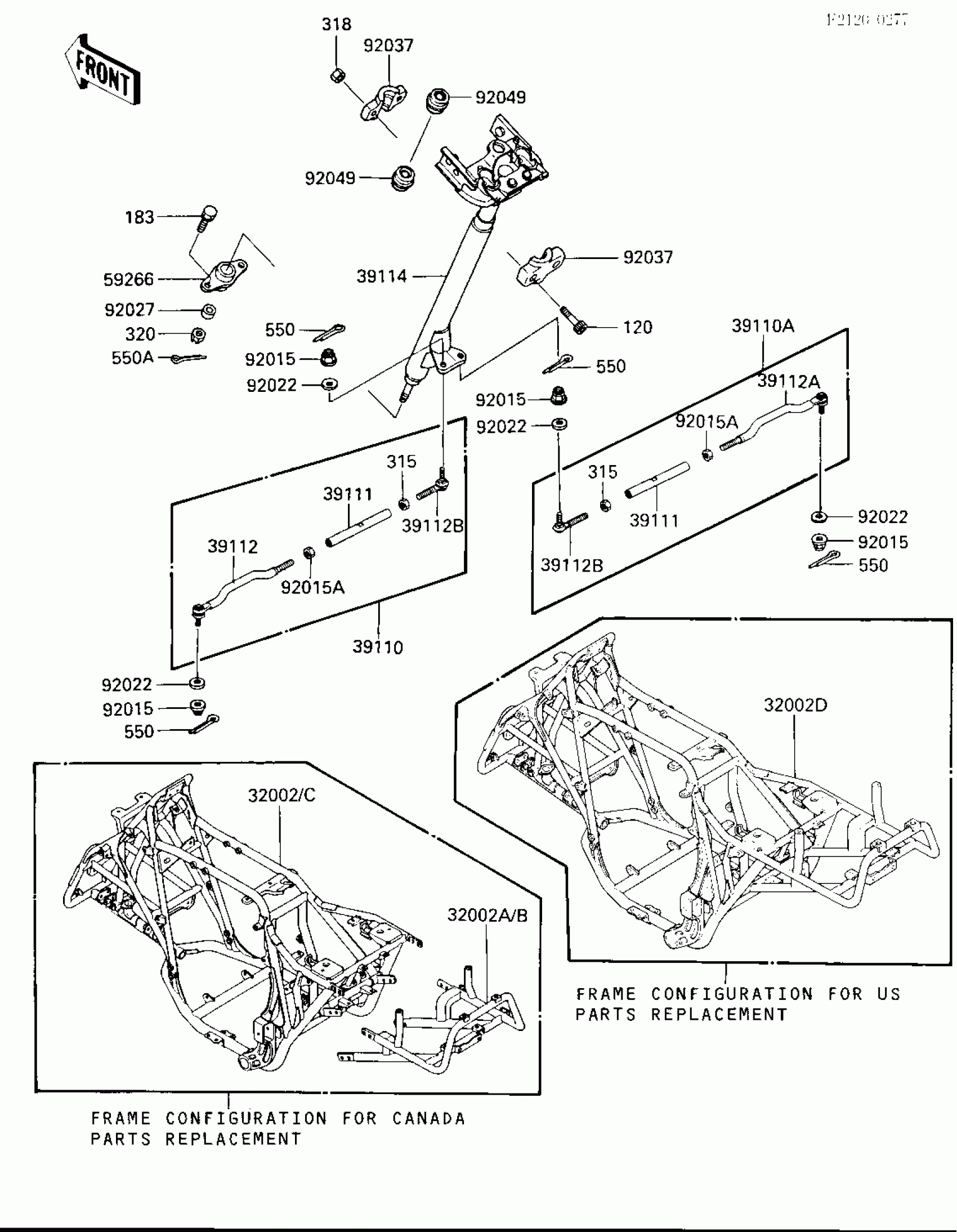

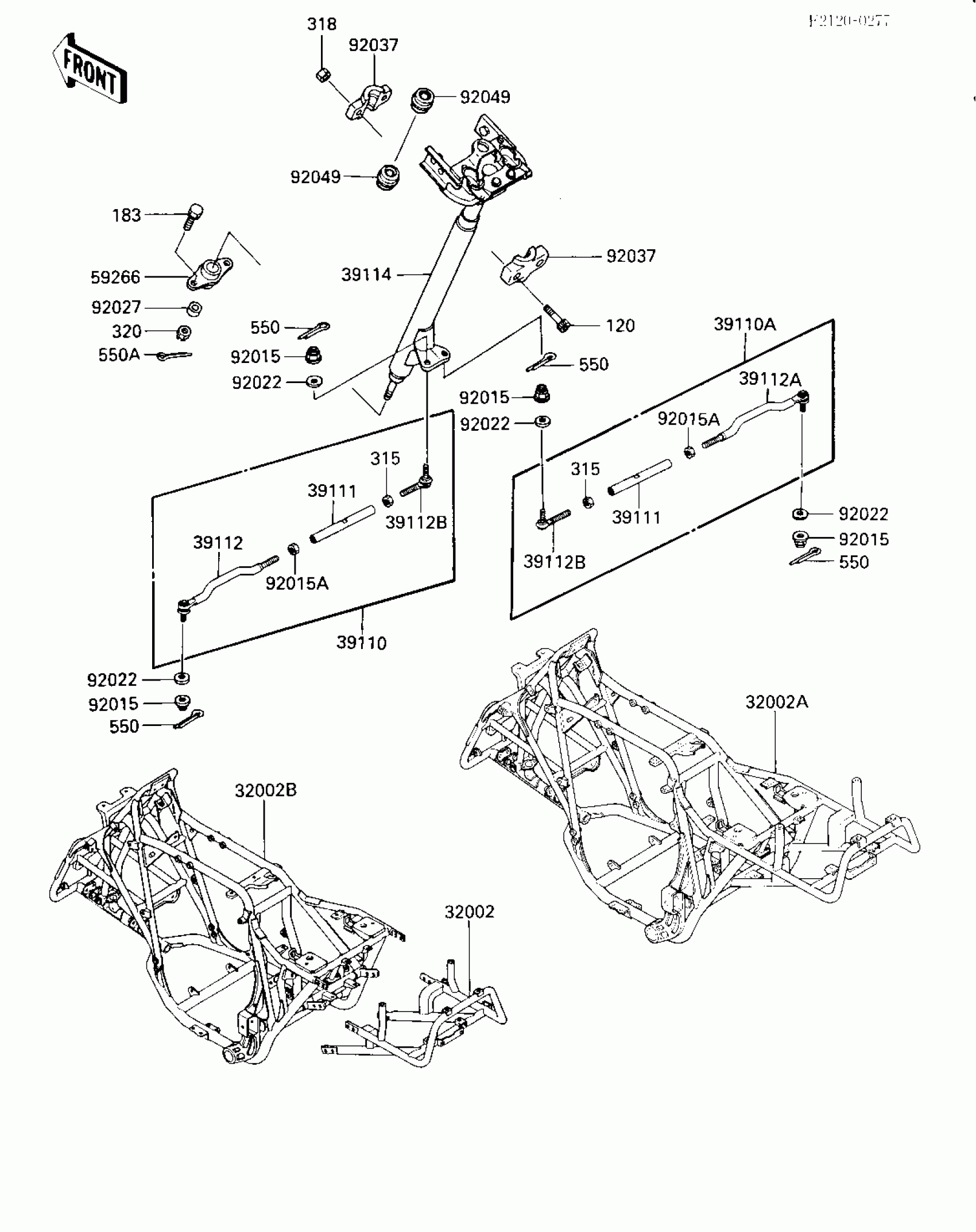

Kawasaki Bayou 300 FRAME/STEERING Diagram

#

Description
Price

32002

FRAME,COMP

32002-1906

$800.27

32002A

FRAME-COMP,RR

32002-1811

$339.36

32002B

FRAME-COMP,RR

32002-1811

$339.36

32002B

FRAME-COMP,RR

32002-1811

$339.36

32002C

FRAME,COMP

32002-1906

$800.27

32002C

FRAME,COMP

32002-1906

$800.27

32002D

FRAME,COMP

32002-1906

$800.27

39110

ROD-ASSY-TIE,LH

39110-1061

$147.41

39110A

ROD-ASSY-TIE,RH

39110-1062

$272.99

39111

ROD-TIE

39111-1062

Unavailable

39112

RODEND-TIE

39112-1055

$151.28

39112A

RODEND-TIE

39112-1056

$151.28

39112B

RODEND-TIE

39112-1057

$95.68

39114

SHAFT-COMP-STRG

39114-1052

$167.68

59266

JOINT-BALL

59266-1066

$144.36

92015

NUT,LOCK,FLANGED,10MM

92015-1338

$8.16

92015A

NUT,12MM,LEFT SCREW

92015-1532

Unavailable

92022

WASHER,10.5X20X1

92022-239

$3.12

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92037

CLAMP,STEERING SHAFT

92037-1572

$79.38

92049

SEAL-OIL,MY25X33X8

92049-1199

$15.61

120

BOLT,ALLEN,8X45

120P0845

Unavailable

183

BOLT-UPSET-WS-SMALL

183G0822

Unavailable

315

NUT-HEX-FINE

315C1200

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.63

320

NUT-CASTLE

320H1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61
