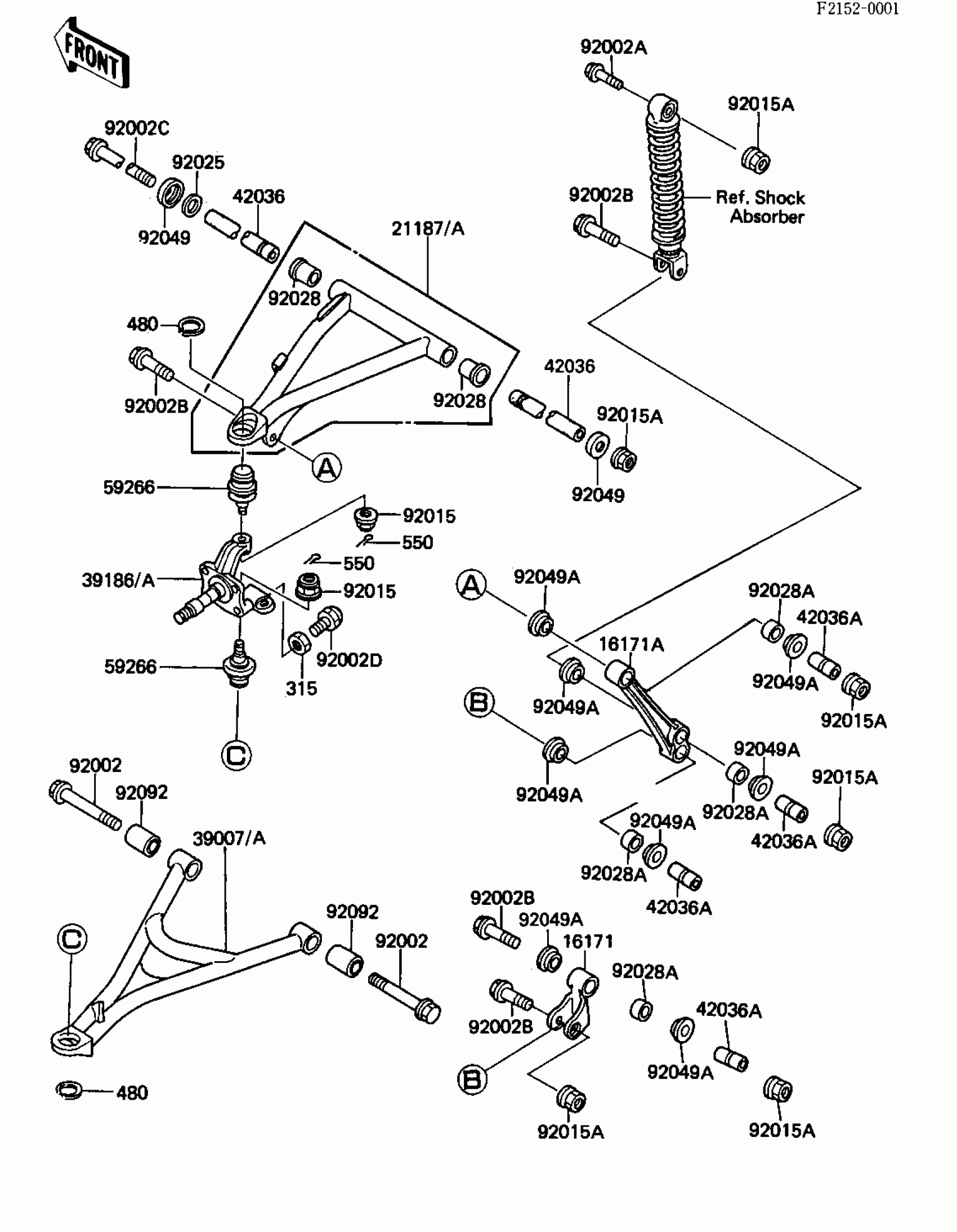

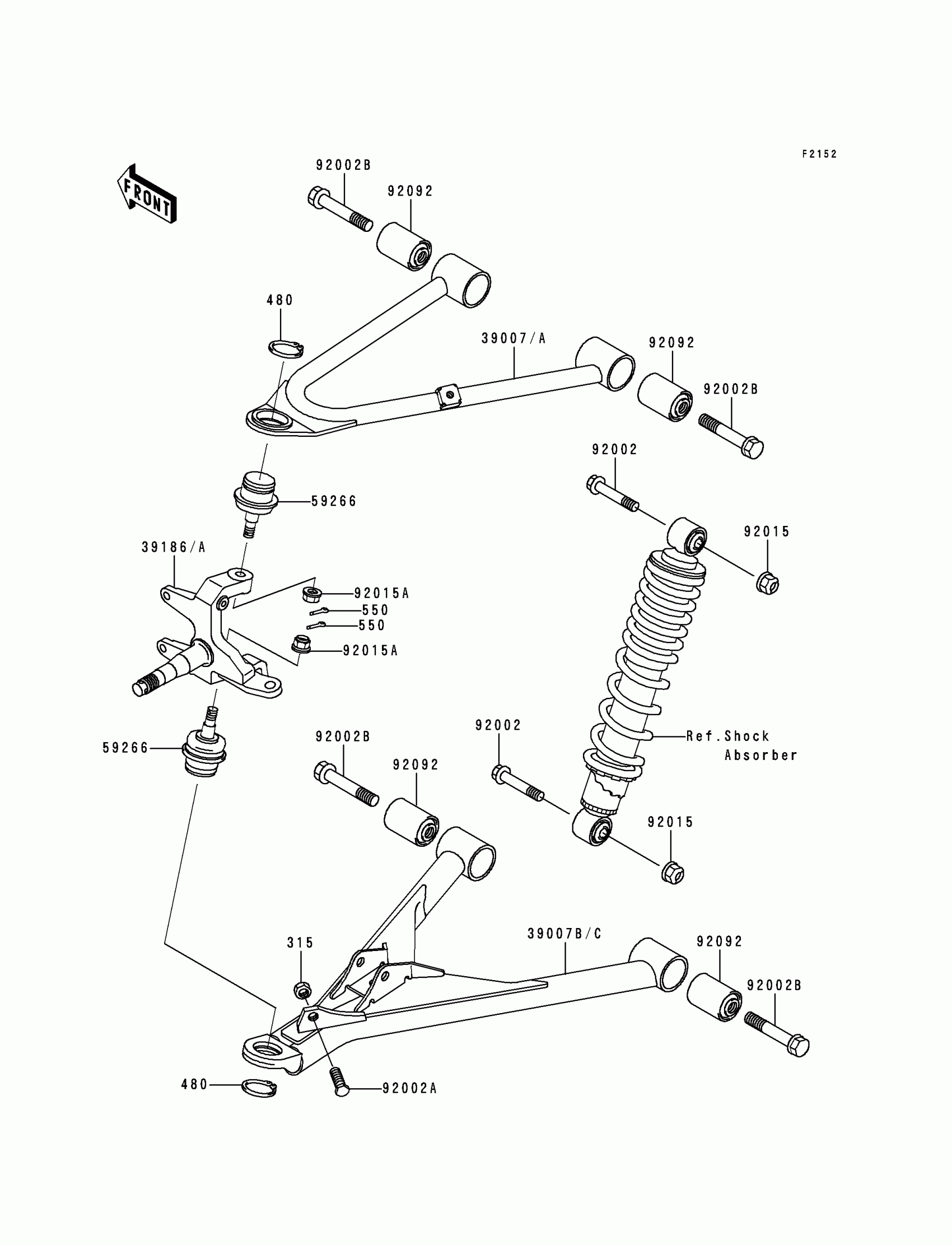

Kawasaki Bayou 300 FRONT SUSPENSION Diagram

#

Description
Price

16171

LINK,SUSPENSION,FR,LW

16171-1052

$120.47

16171A

LINK,SUSPENSION,FR,UP

16171-1055

$120.34

21187

ARM-ASSY,SUSPENSION,F

21187-1051

$90.99

21187A

ARM-ASSY,SUSPENSION,F

21187-1052

$90.99

39007

ARM-SUSP,FR,LH,LWR

39007-1076

$51.43

39007A

ARM-SUSP,FR,RH,LWR

39007-1077

$71.50

39186

KNUCKLE,LH

39186-1054

$305.37

39186A

KNUCKLE,RH

39186-1055

$305.37

42036

SLEEVE,SUSPENSION ARM

42036-1160

Unavailable

42036A

SLEEVE

42036-1176

Unavailable

59266

JOINT-BALL

59266-1060

$103.55

92002

BOLT,FLANGED,12X60

92002-1456

$14.53

92002A

BOLT,FLANGED,10X46.5

92002-1528

$5.86

92002B

BOLT,FLANGED,10X53.5

92002-1529

$8.20

92002C

BOLT,FLANGED,10X291.5

92002-1549

Unavailable

92002D

BOLT,10X30

92002-1559

$10.63

92015

NUT,LOCK,FLANGED,10MM

92015-1338

$7.83

92015A

NUT,LOCK,10MM

92015-1522

$7.49

92025

SHIM,18X28.5X0.3

92025-1678

$7.56

92028

BUSHING,KNUCKLE

92028-1318

Unavailable

92028A

BUSHING,SUSPENSION LI

92028-1373

Unavailable

92049

SEAL-OIL,KNUCKLE

92049-1198

$16.19

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92092

BUSHING-RUBBER

92092-1057

$41.78

315

NUT-HEX-FINE

315J1000

$4.17

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

550

PIN COTTER 2.0X15

550D2015

Unavailable
