Description

Price

112

BOLT-UPSET

112H0640

Unavailable

130

BOLT-FLANGED,10X16

130B1016

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

11012

CAP,WHEEL

11012-1519

Unavailable

14014

PLATE-POSITION

14014-1072

$17.54

41035B

PANEL-ASSY-BRAKE,RR,RH

41035-1239

$468.61

41035C

PANEL-ASSY-BRAKE,RR,LH

41035-1273

$546.10

41038

DRUM,RR

41038-1201

$335.86

41048A

SHOE-BRAKE

41048-1069

$22.11

41050

CAM-BRAKE

41050-1074

$55.25

41053

LEVER-BRAKE CAM

41053-1064

$50.70

41085

INDICATOR

41085-1053

$13.17

92002

BOLT,10X30

92002-1918

$5.75

92015

NUT,6MM

41072-007

$2.99

92015A

NUT,CASTLE,18MM

42045-018

$7.01

92022

WASHER,18.3X34X4.5

92022-1658

$3.42

92037

CLAMP,TUBE

92037-147

$5.61

92041

COTTER,4.0X35

92041-1053

$2.99

92049

SEAL-OIL

92049-1242

$127.75

92055

RING-O,ID=16.4

92055-1376

$4.08

92055A

RING-O,59.6X2.4

92055-3018

$4.67

92059

TUBE,4.7X9.5X1240

92059-1968

$21.61

92072

BAND,L=123

92072-030

$3.81

92081

SPRING,BRAKE SHOE

42020-004

$6.48

92150

BOLT,10MM

92150-1110

$4.43

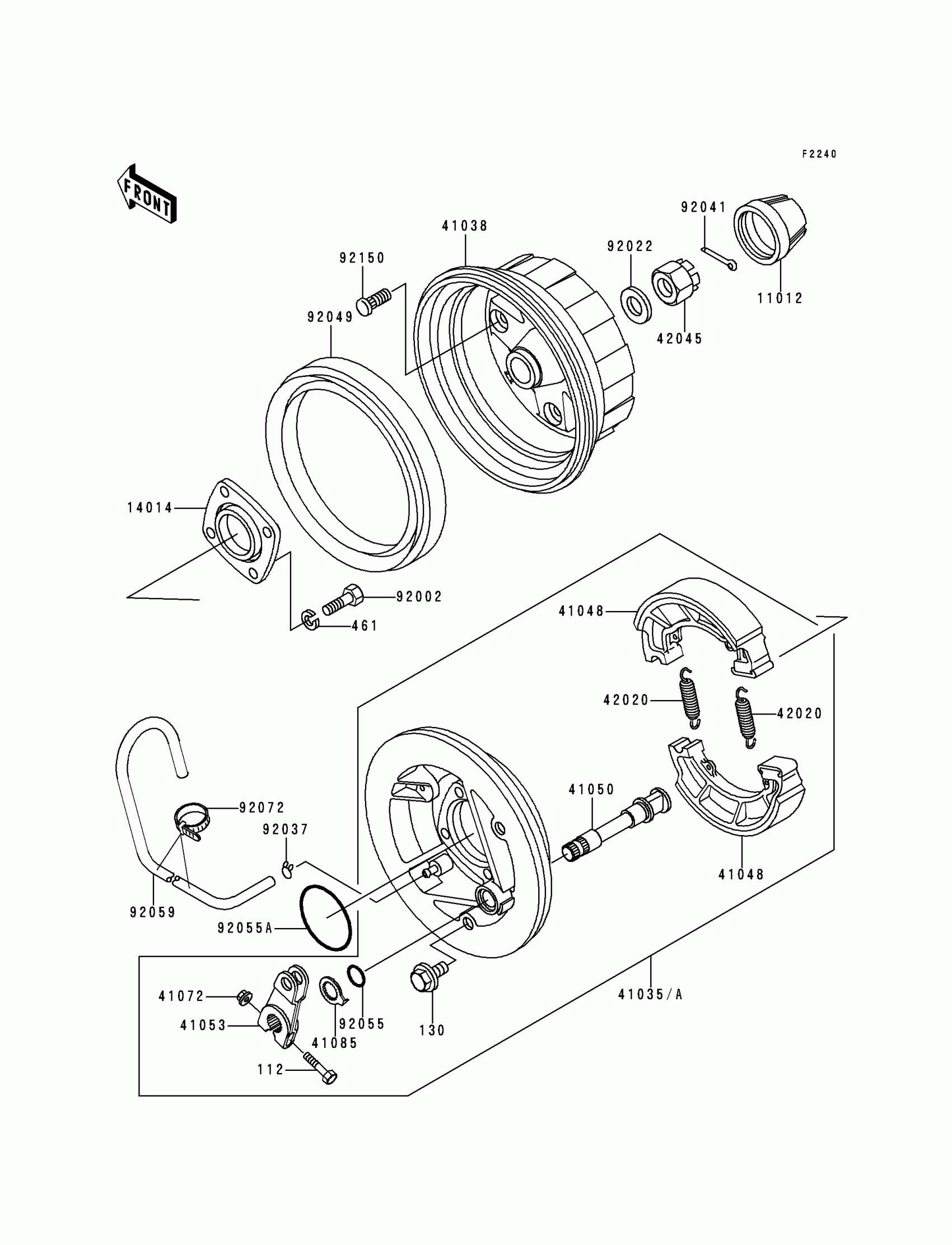

Kawasaki Bayou 300 Rear Hub Diagram

BOLT-UPSET

BOLT-FLANGED,10X16

WASHER SPRING 10MM

CAP,WHEEL

PLATE-POSITION

PANEL-ASSY-BRAKE,RR,RH

PANEL-ASSY-BRAKE,RR,LH

DRUM,RR

SHOE-BRAKE

CAM-BRAKE

LEVER-BRAKE CAM

INDICATOR

BOLT,10X30

NUT,6MM

NUT,CASTLE,18MM

WASHER,18.3X34X4.5

CLAMP,TUBE

COTTER,4.0X35

SEAL-OIL

RING-O,ID=16.4

RING-O,59.6X2.4

TUBE,4.7X9.5X1240

BAND,L=123

SPRING,BRAKE SHOE

BOLT,10MM
