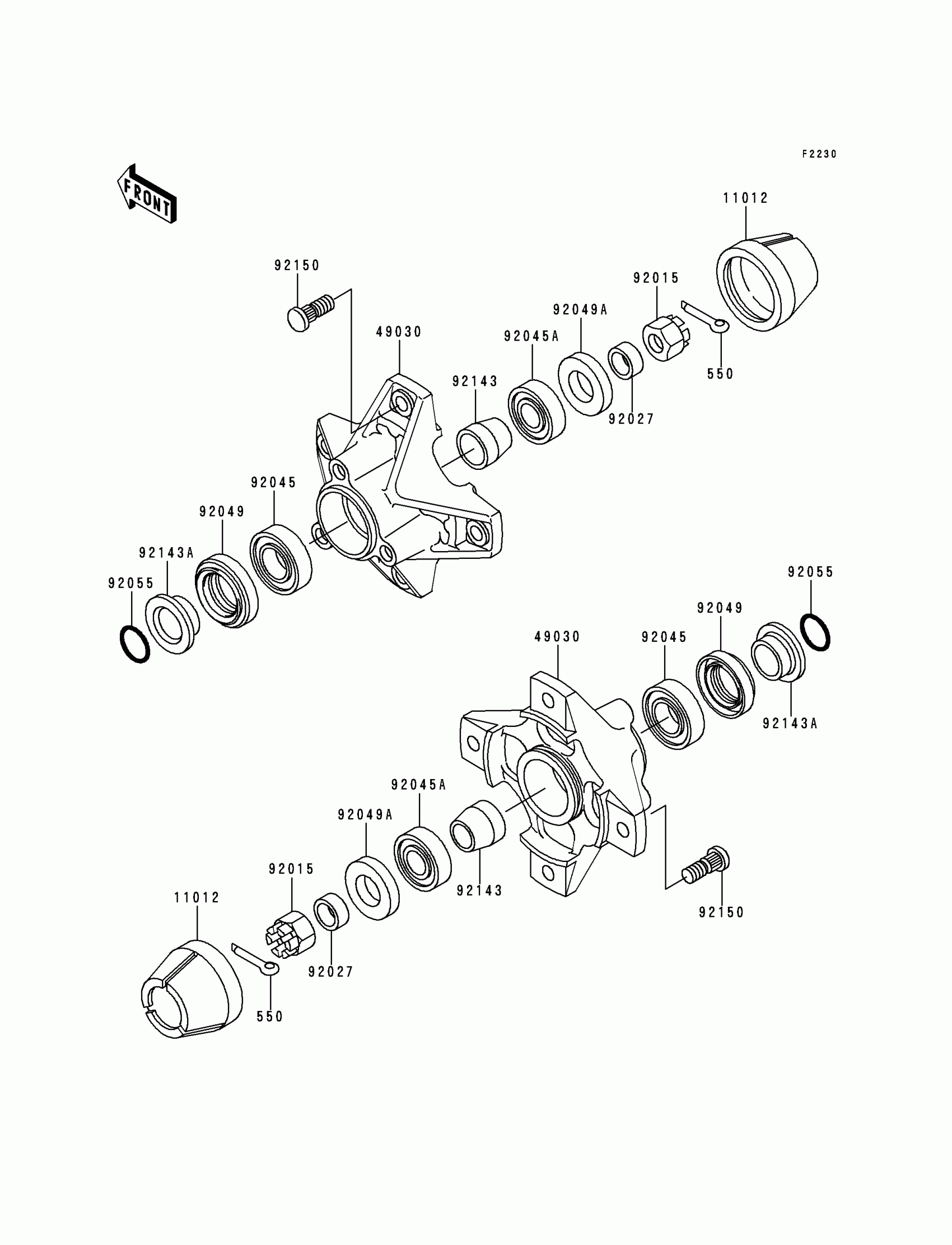

Kawasaki Bayou 300 Front Hub Diagram

Description

Price

550

PIN COTTER 4.0X30

550D4030

Unavailable

11012

CAP,WHEEL

11012-1519

Unavailable

49030

HUB,FR

49030-1088

$154.92

92015

NUT,CASTLE,16MM

42045-014

$7.54

92027

COLLAR,16.0X22X9.5

92027-1815

Unavailable

92045

BEARING-BALL,60/222RS

92045-1170

$30.63

92045A

BEARING-BALL,6203DDU2 AV2S

92045-1228

$17.09

92049

SEAL-OIL,SDD4 28 44 8

92049-1260

Unavailable

92049A

SEAL-OIL

92049-1318

$2.87

92055

RING-O,21.5X1.5

92055-1293

$3.81

92143

COLLAR,L=25

92143-1007

Unavailable

92143A

COLLAR,L=14.1

92143-1008

Unavailable

92150

BOLT

92150-1289

$4.04
