1986 Kawasaki Bayou 300 Fuel Tank Diagram

← All diagrams

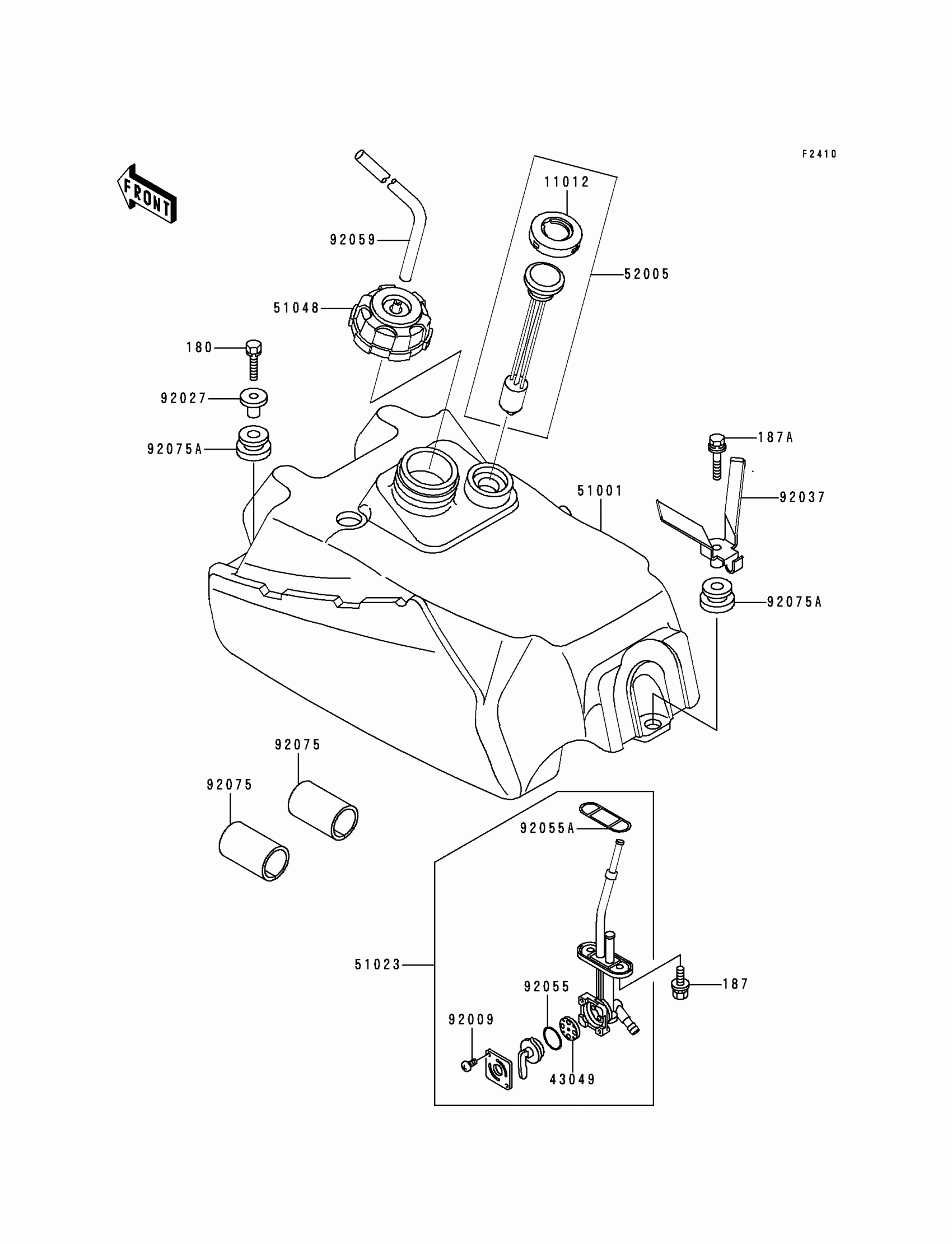

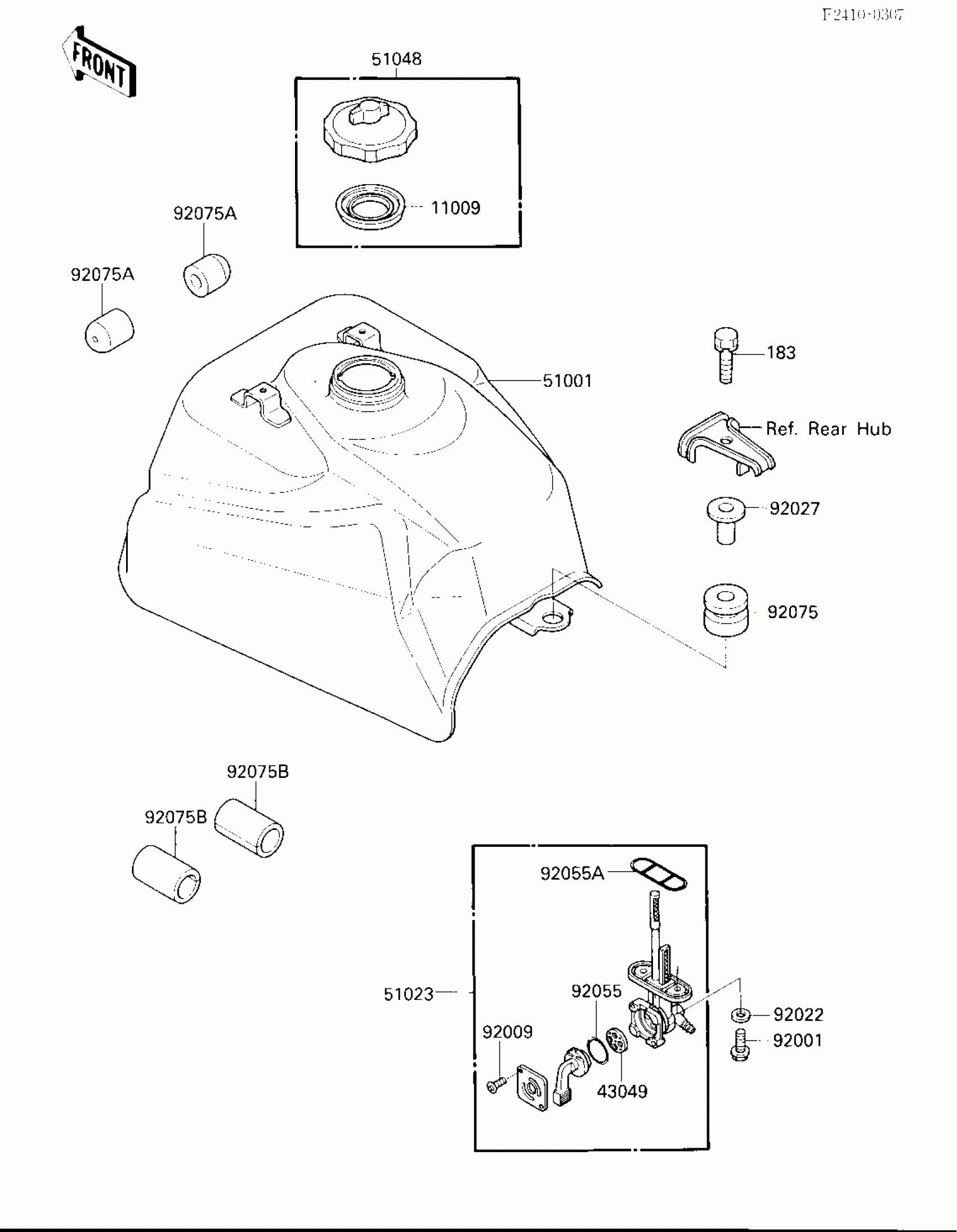

Find the part on the Fuel Tank diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Bayou 300 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL TANK CAP

51059-006

1
Out of stock

43049

PACKING,FUEL TAP LEVER

43049-1017

1
Out of stock

51001

TANK-COMP-FUEL

51001-1210

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1141

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-1068

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92009

SCREW PAN HEAD 3X5

220B0305A

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92055

RING-O,FUEL TAP LEVER

92055-1111

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92075

DAMPER RUBB TANK REAR

92075-030

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-044

1
Out of stock

92075B

DAMPER,FUEL TANK,FR,UNDER

92075-1369

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183D0835

1
Out of stock
