2004 Kawasaki Bayou 300 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2004 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

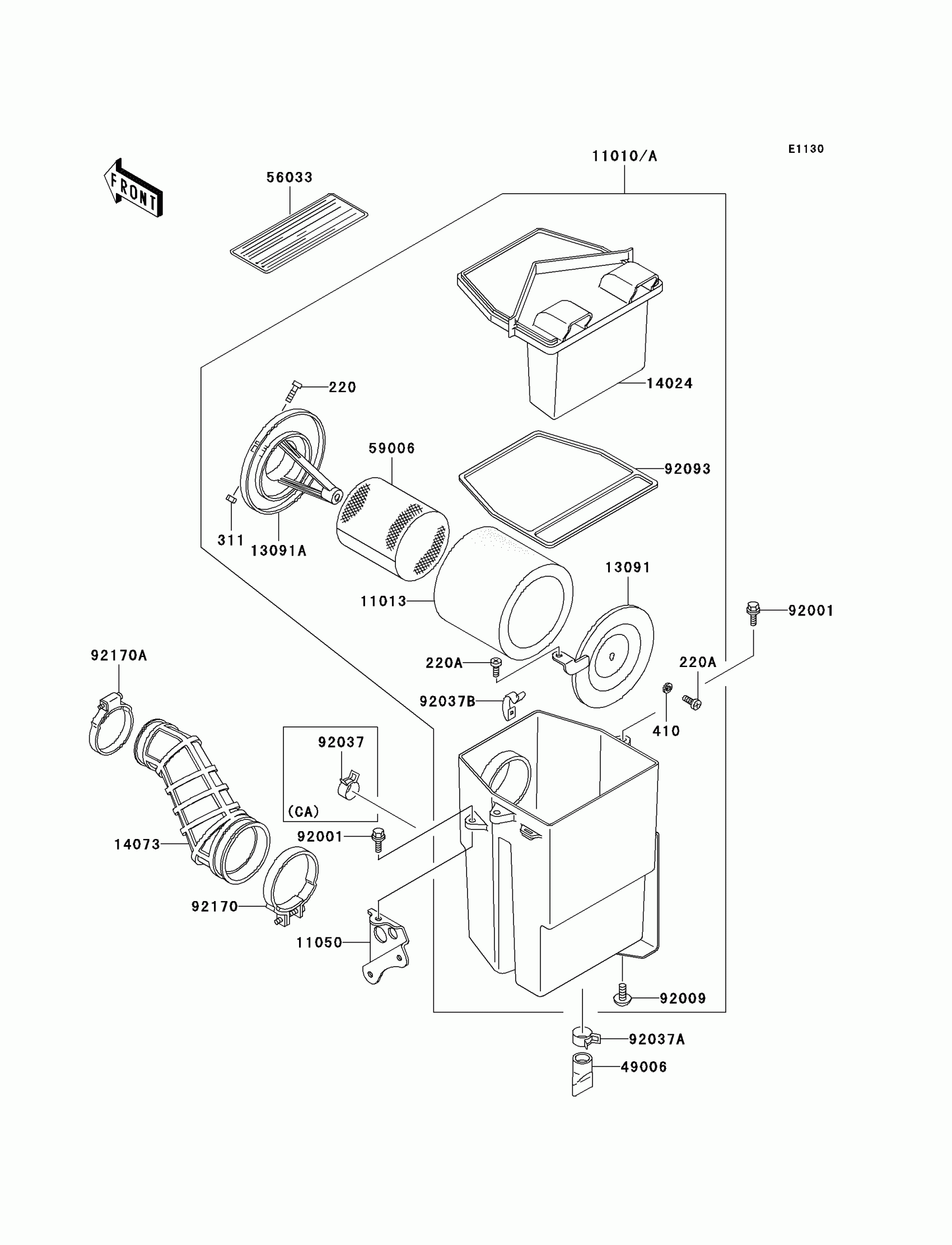

2004 Kawasaki Bayou 300 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 5X16

220B0516

1
Out of stock

220A

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1275

1
Out of stock

11050

BRACKET

11050-1979

1
Out of stock

13091

HOLDER,ELEMENT

13091-1488

1

$18.50

In stock

13091A

1

$14.65

In stock

14024

COVER,AIR FILTER

14024-1703

1

$41.46

In stock

14073

DUCT

14073-1372

1

$34.30

In stock

49006

BOOT

49006-1199

1
Out of stock

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

1
Out of stock

59006

ARRESTER-FLAME

59006-1052

1
Out of stock

92001

BOLT,6X20

92001-1460

1
Out of stock

92009

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92037A

CLAMP,HOSE CLIP

92037-1460

1
Out of stock

92037B

CLAMP,AIR FILTER

92037-1783

1
Out of stock

92093

SEAL,AIR FILTER

92093-1241

1
Out of stock

92170

CLAMP

92170-1149

1

$9.01

In stock

92170A

CLAMP

92170-1674

1

$9.32

In stock

11010

FILTER-ASSY-AIR

11010-1648

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-1649

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock
