1986 Kawasaki Bayou 300 Chassis Electrical Equipment Diagram

← All diagrams

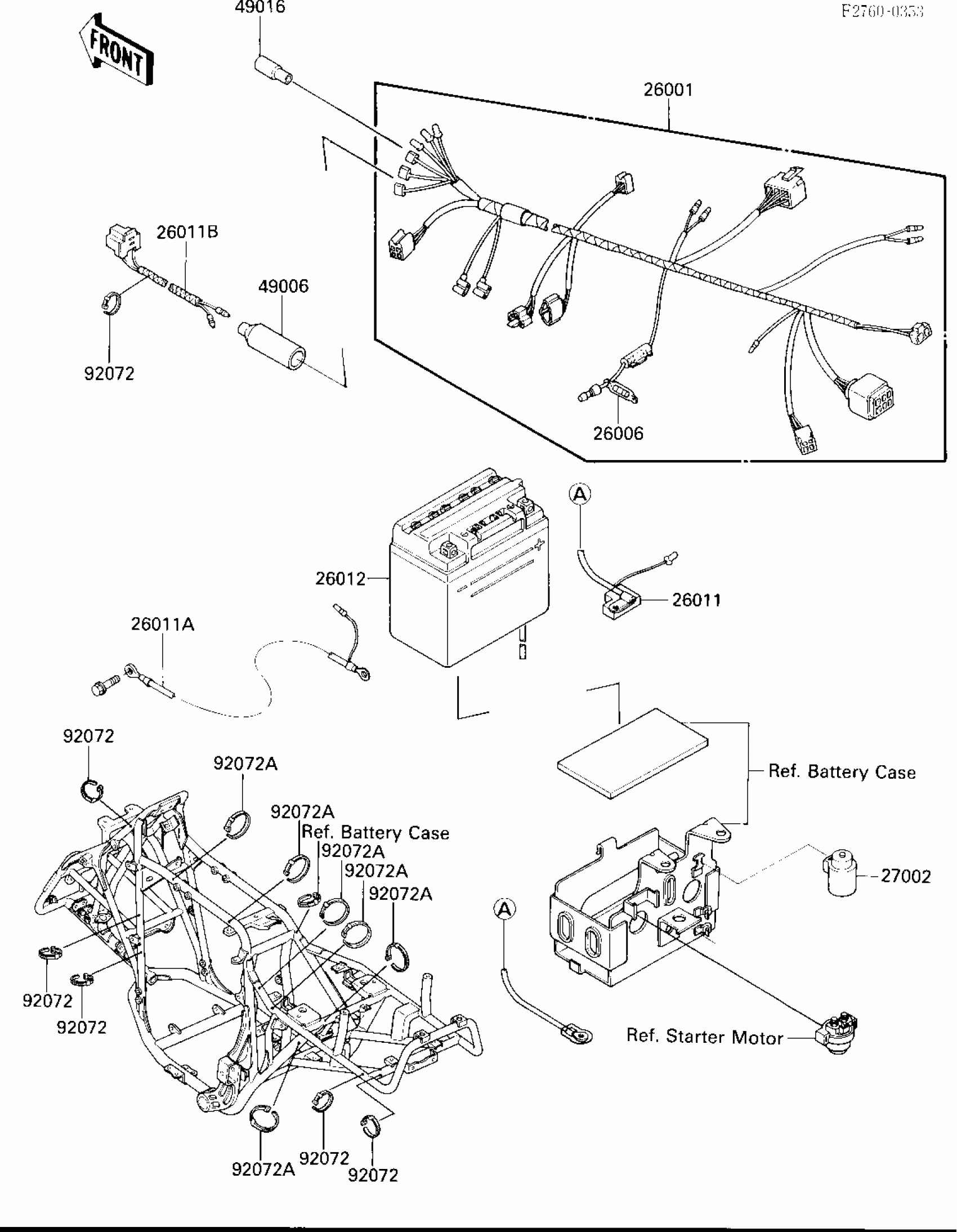

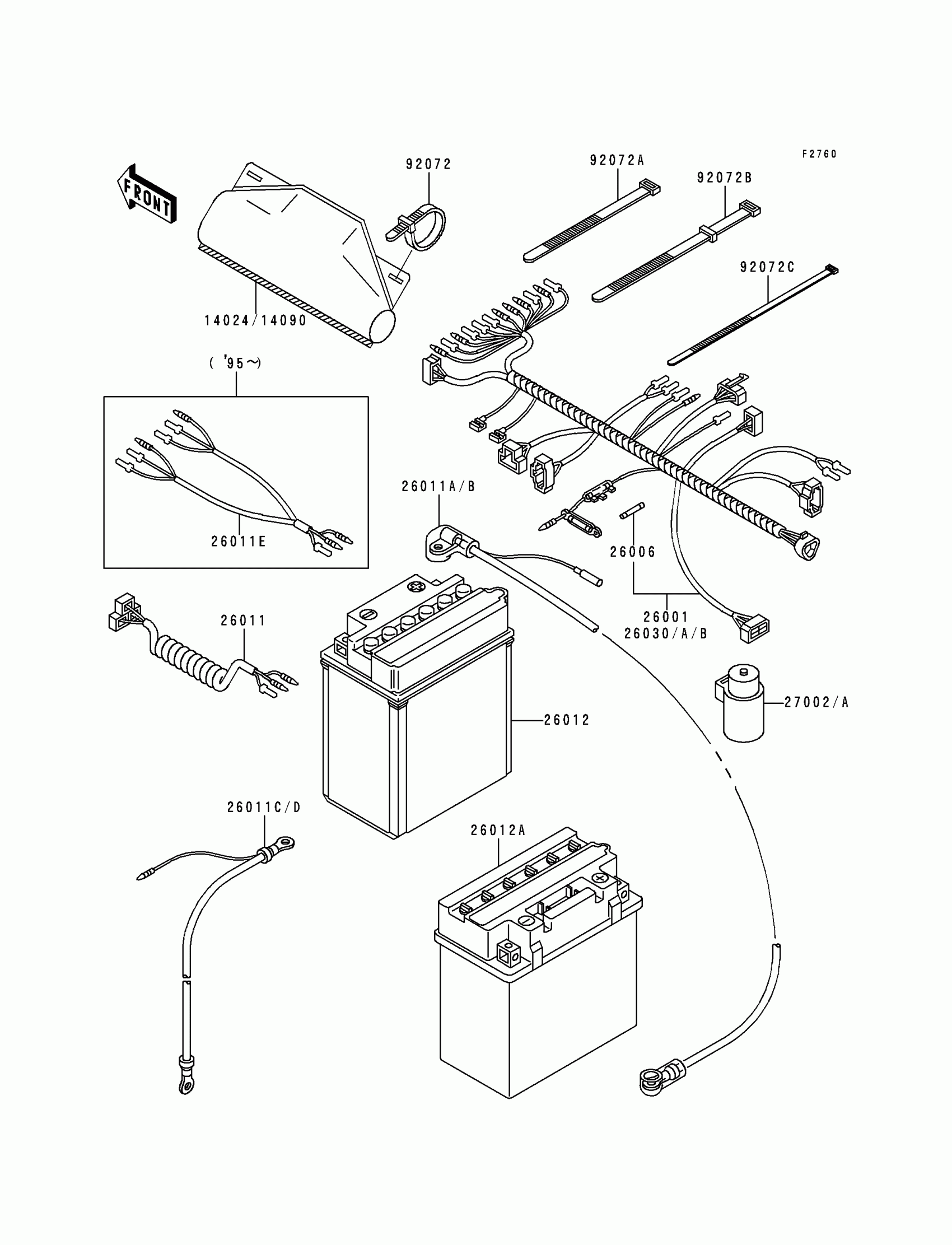

Find the part on the Chassis Electrical Equipment diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Bayou 300 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,MAIN

26001-1712

1
Out of stock

26006

FUSE,30A,L=30

26006-1059

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1302

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1303

1
Out of stock

26011B

WIRE-LEAD,HEAD LAMP

26011-4011

1
Out of stock

26012

FB BAT FB16CL-B

26012-1118

1
Out of stock

27002

RELAY-ASSY

27002-1051

1
Out of stock

49006

BOOT,HARNESS

49006-4007

1
Out of stock

49016

COVER-SEAL

49016-1119

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock
