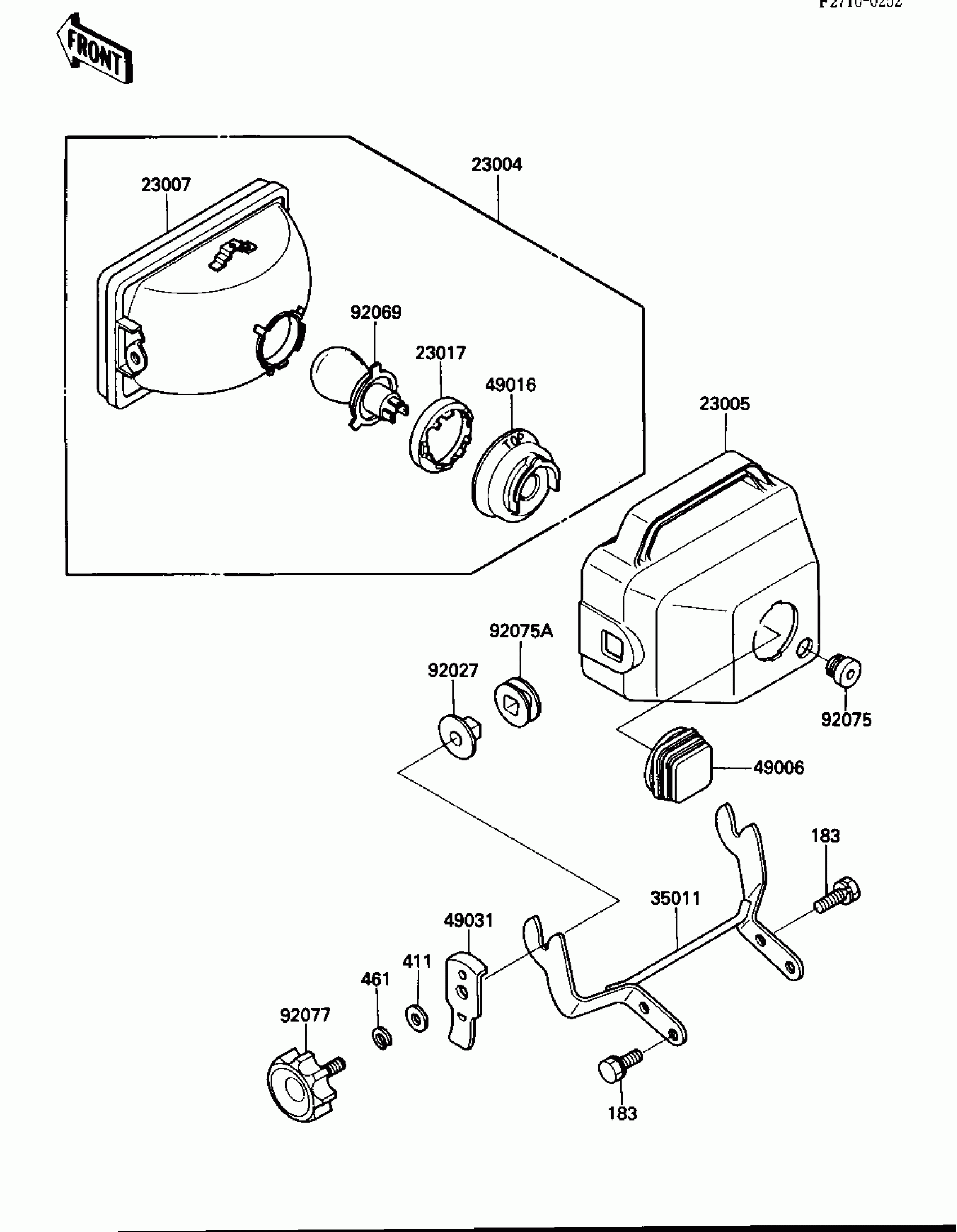

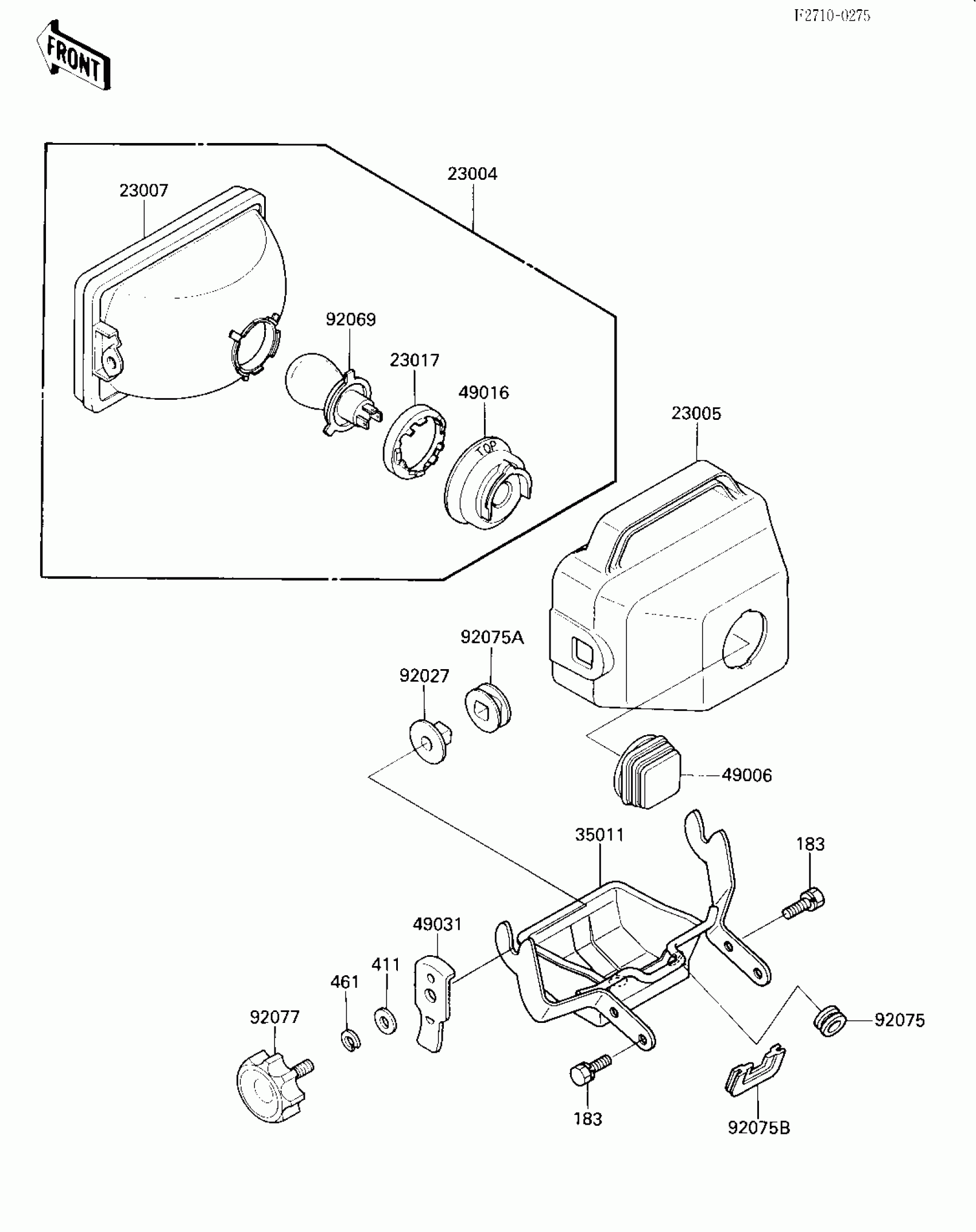

Kawasaki Bayou 300 HEADLIGHT Diagram

Description

Price

23004

LAMP-HEAD

23004-1192

$139.14

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1064-6Z

$171.59

23007

LENS-COMP,HEAD LAMP

23007-1138

$134.34

23017

SOCKET,BULB

23017-1051

Unavailable

35011

STAY,HEAD LAMP

35011-1256

$34.36

49006

BOOT,HEAD LAMP BODY

49006-1172

$22.41

49016

COVER-SEAL,BULB SOCKET

49016-1111

Unavailable

49031

LATCH,HEAD LAMP

49031-1052

$10.63

92027

COLLAR,L=11.9

92027-1938

$10.63

92069

BULB,12V 65/60W

92069-1069

Unavailable

92075

DAMPER

92075-1767

Unavailable

92075A

DAMPER,HEAD LAMP FITTING

92075-1768

$8.54

92077

KNOB,HEAD LAMP

92077-1060

$17.44

183

BOLT-UPSET-WS-SMALL

183J0814

Unavailable

411

WASHER PLAIN

411F0800

Unavailable

461

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable
