2001 Kawasaki Bayou 220 Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2001 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

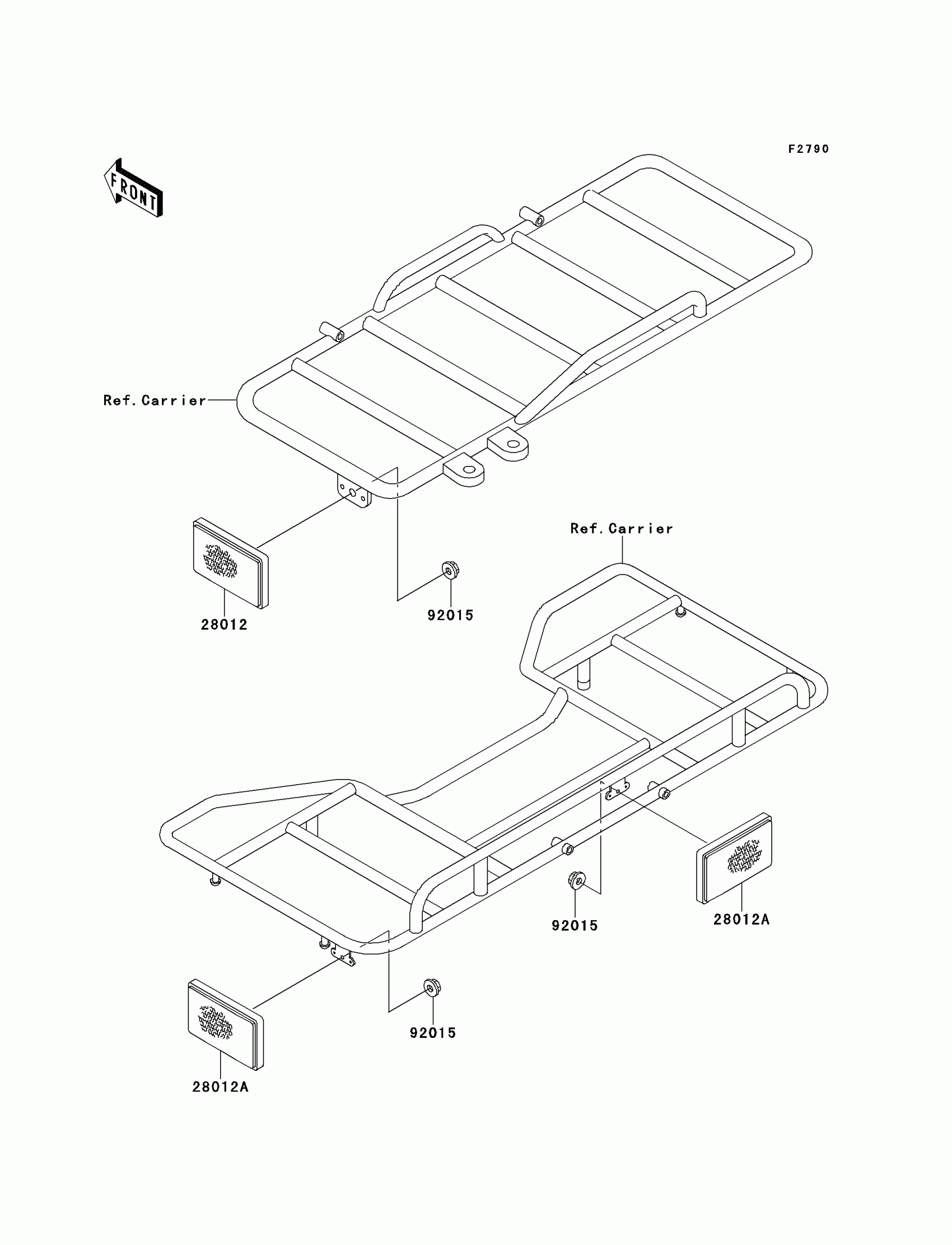

2001 Kawasaki Bayou 220 Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1088

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock
