1996 Kawasaki Bayou 220 Chassis Electrical Equipment Diagram

← All diagrams

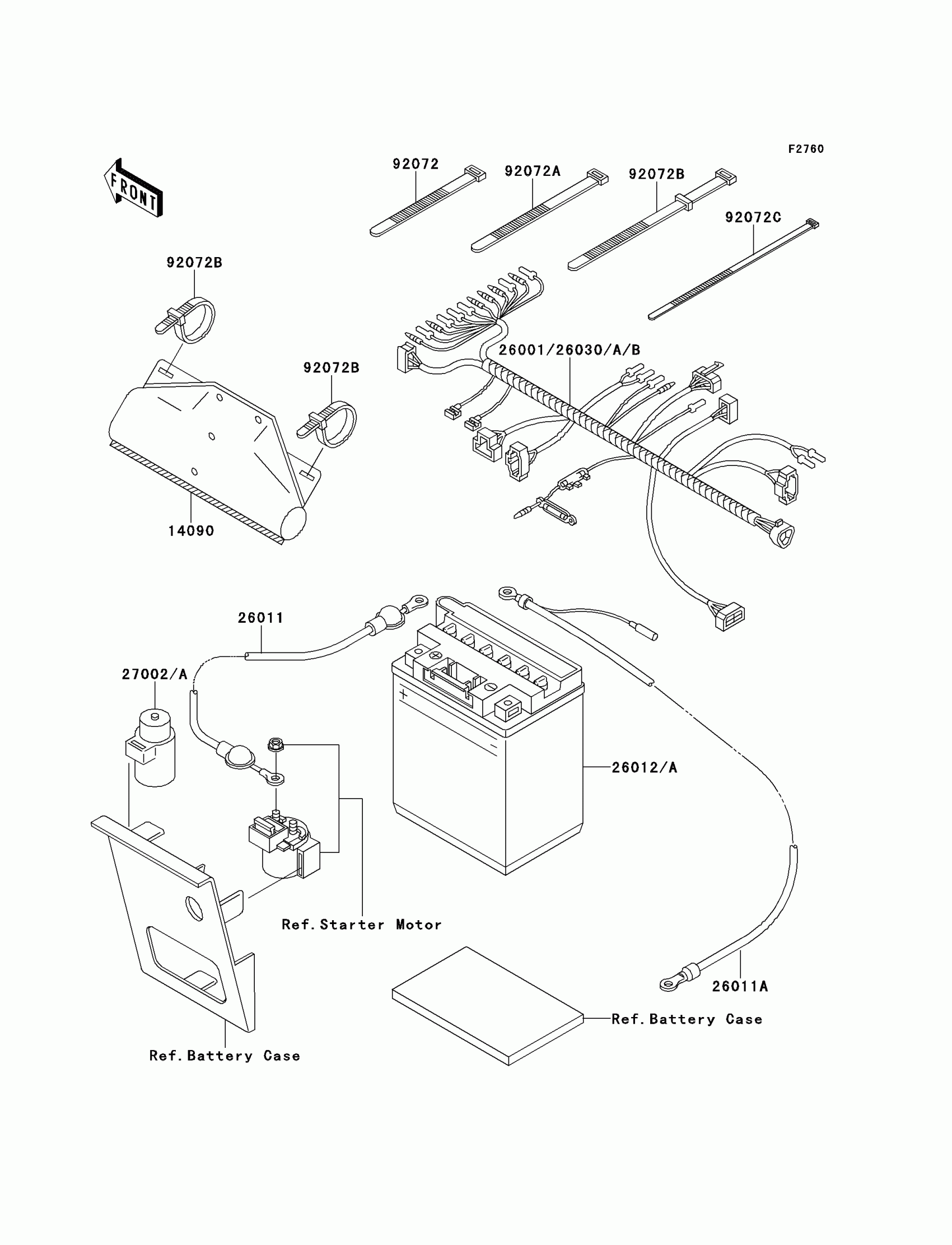

Find the part on the Chassis Electrical Equipment diagram for your 1996 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Bayou 220 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14090

COVER,COUPLER

14090-1611

1

$8.31

In stock

26011

WIRE-LEAD,BATTERY(+)

26011-1398

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1558

1
Out of stock

27002A

RELAY-ASSY

27002-1095

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92072B

BAND,L=186

92072-056

1
Out of stock

92072C

BAND,L=188

92072-1239

1
Out of stock

26012

BATTERY,12V 11AH,YB10A-A2

26012-1229

1
Out of stock

26012A

BATTERY,YB14A-A2,12V 14AH

26012-1271

1
Out of stock

26030A

HARNESS,MAIN

26030-1408

1
Out of stock

26030B

HARNESS,MAIN

26030-1422

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock
