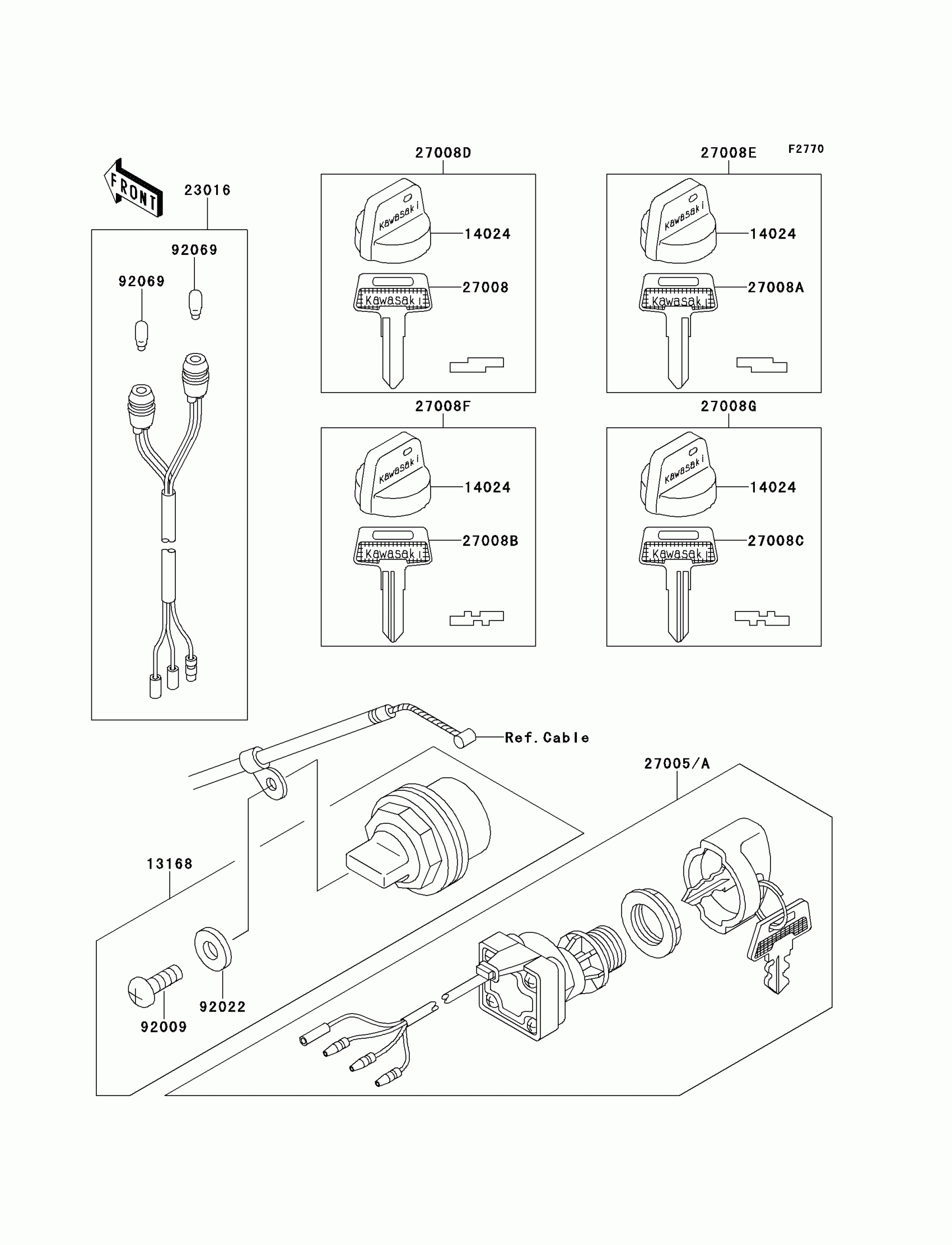

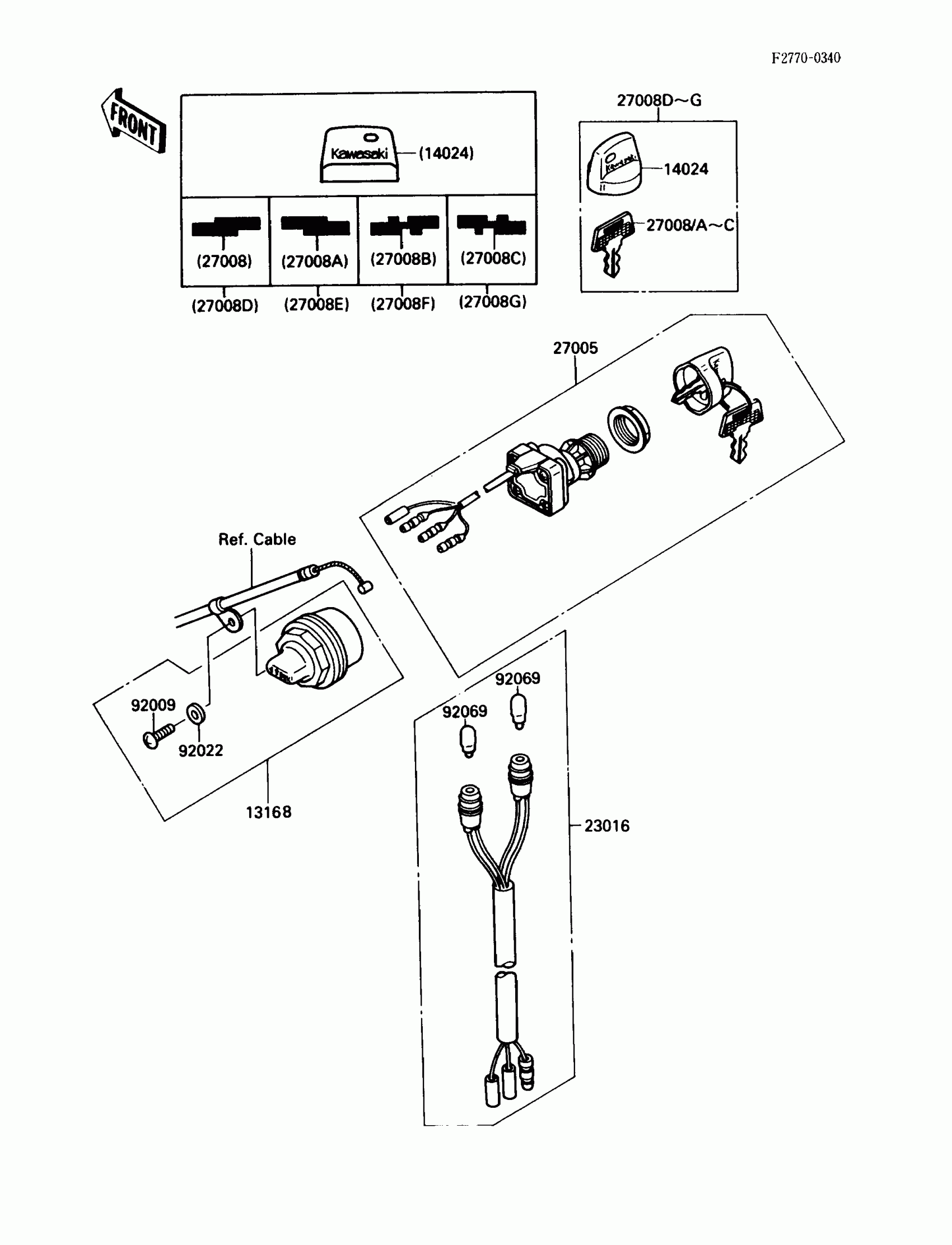

Kawasaki Bayou 220 Ignition Switch Diagram

Description

Price

13168

LEVER,REVERSE LOCK

13168-1352

Unavailable

14024

COVER,KEY

14024-1551

$4.72

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$51.76

27005

SWITCH-ASSY-IGNITION

27005-1131

$140.96

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$17.51

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$17.51

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$14.12

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$14.12

92009

SCREW,TAPPING,4X12

92009-1533

$4.68

92022

WASHER,PLAIN,4MM

92022-1947

$4.42

92069

BULB,12V 3W,T7

92069-1020

Unavailable
