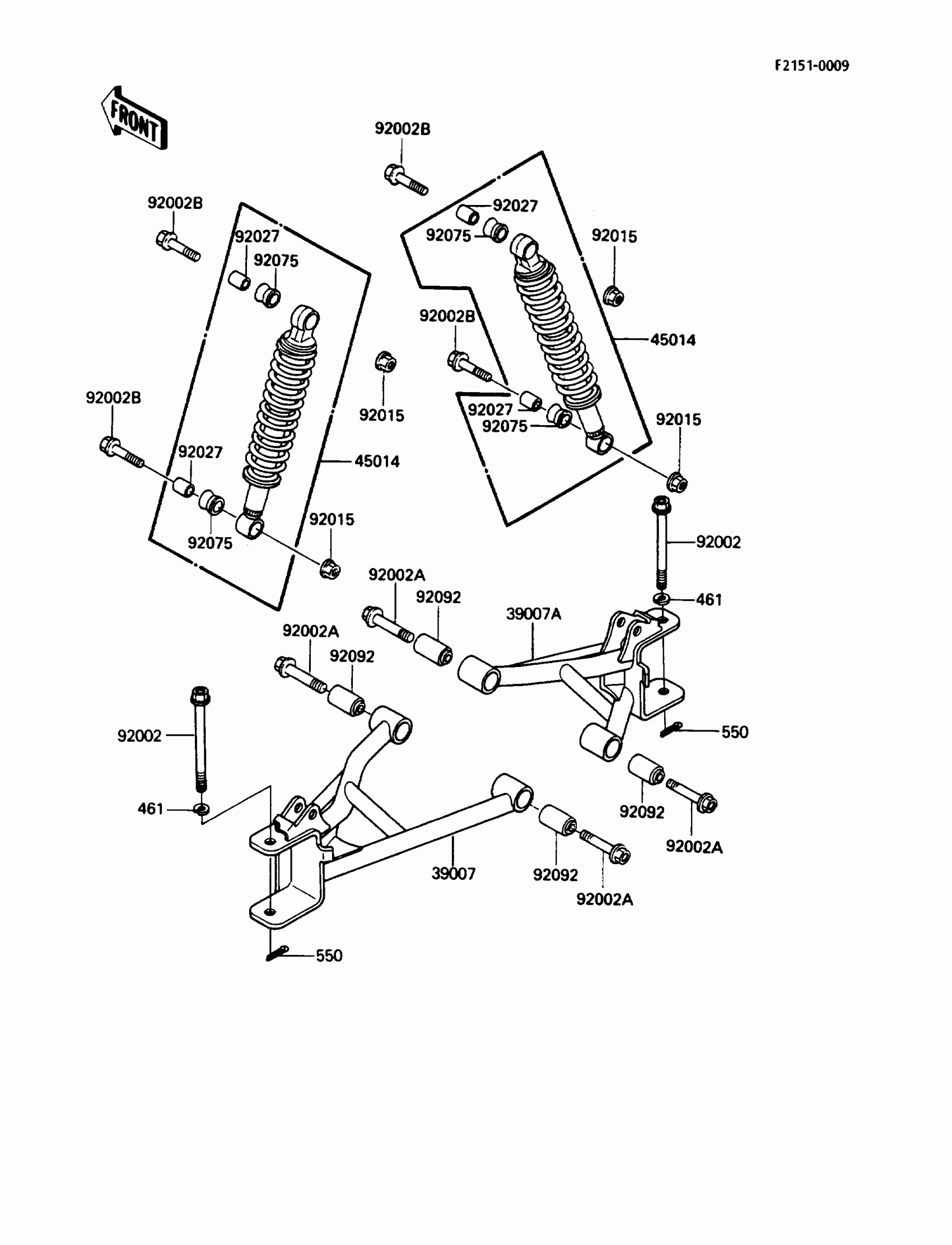

Kawasaki Bayou 185 Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,LH

39007-1095

$152.83

39007A

ARM-SUSP,RH

39007-1096

$258.22

45014

SHOCKABSORBER,FR

45014-1293

$224.43

92002

BOLT,FLANGED,10X130

92002-1376

Unavailable

92002A

BOLT,FLANGED,12X60

92002-1456

$14.53

92002B

BOLT,FLANGED,10X42

92002-1545

$8.75

92015

NUT,LOCK,10MM

92015-1597

$4.18

92027

COLLAR,SHOCKABSORBER

92027-4024

$3.15

92075

DAMPER,SHOCKABSORBER

92075-4030

$14.14

92092

BUSHING-RUBBER

92092-005

$10.71

461

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN-COTTER,2.0X18

550D2018

$1.80
