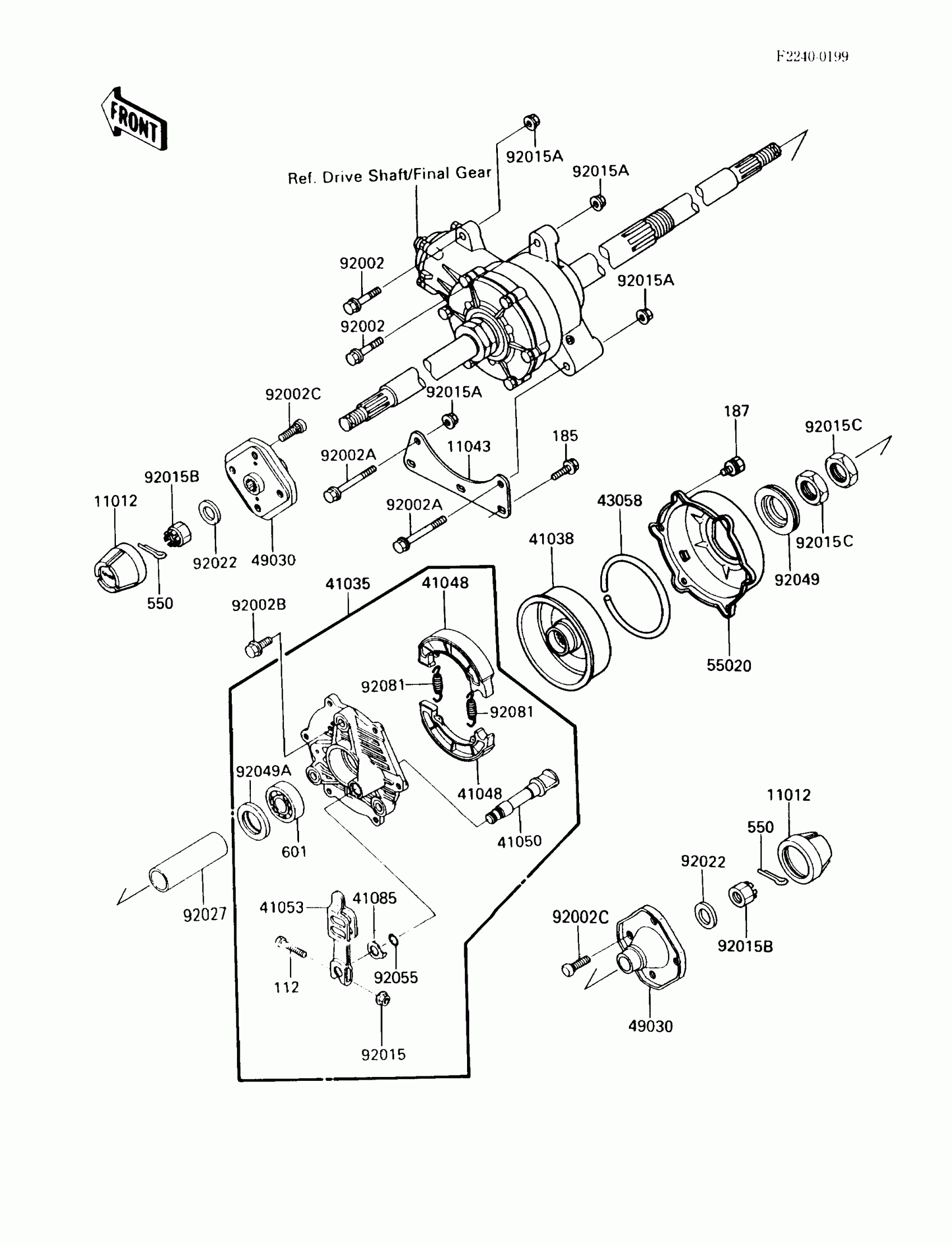

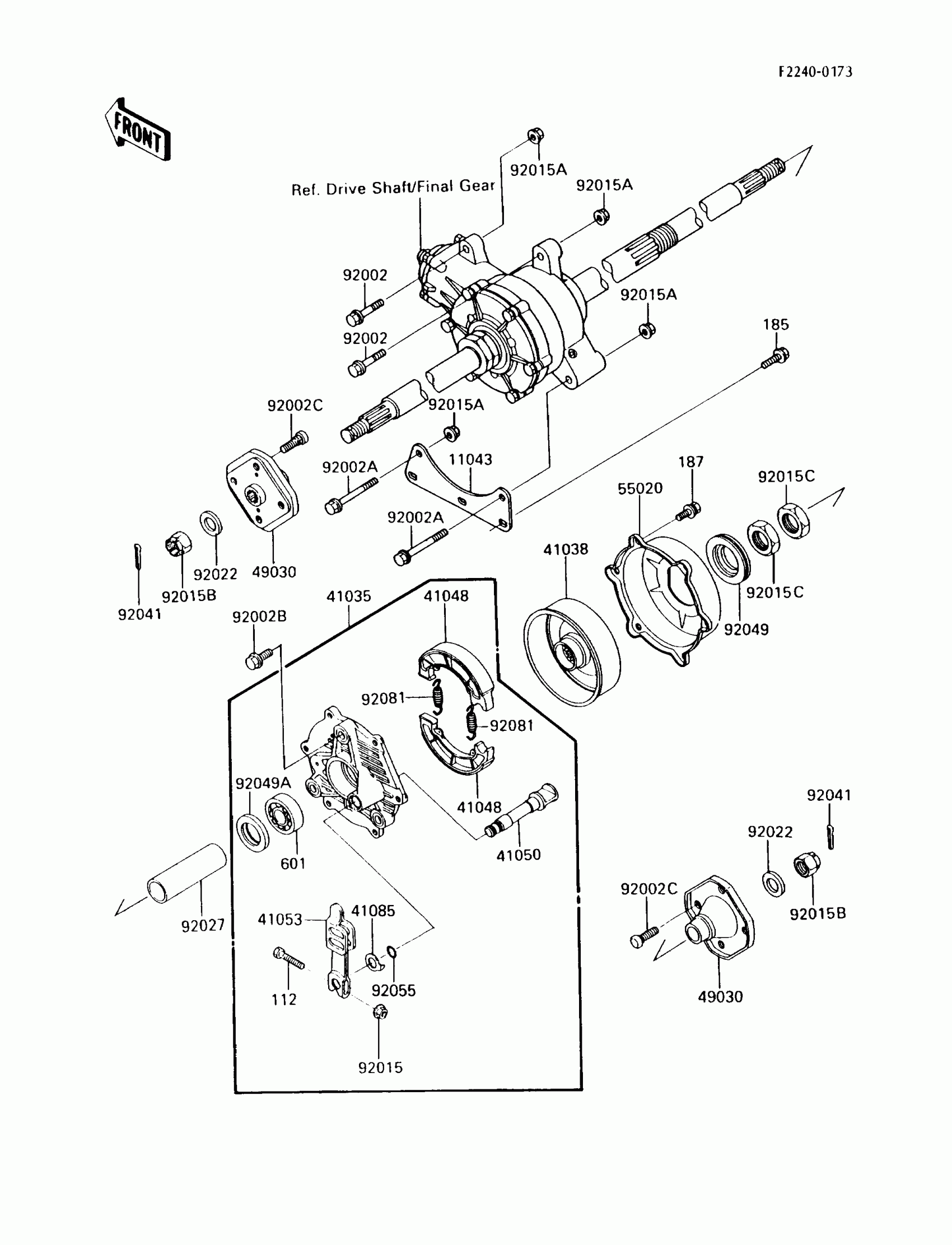

Find the part on the Rear HUB diagram for your 1986 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Bayou 185 Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET

11043-1550

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1246

1

$566.59

In stock

41038

DRUM,RR BRAKE

41038-1163

1

$224.48

In stock

41048

SHOE-BRAKE

41048-1058

1

$24.30

In stock

41050

CAM-BRAKE

41050-1062

1

$64.88

In stock

41053

LEVER-BRAKE CAM

41053-1056

1

$34.95

In stock

41085

INDICATOR

41085-1053

1
Out of stock

49030

HUB,RR

49030-1076

1
Out of stock

55020

GUARD,RR BRAKE DRUM

55020-1175

1
Out of stock

92002

BOLT,FLANGED,10X38

92002-1313

1
Out of stock

92002A

BOLT,FLANGED,10X70

92002-1315

1
Out of stock

92002B

BOLT,FLANGED,10X20

92002-1368

1
Out of stock

92002C

BOLT,10MM

92002-1459

1
Out of stock

92015

NUT,6MM

41072-007

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1366

1
Out of stock

92015B

NUT,CASTLE,18MM

92015-1441

1
Out of stock

92015C

NUT,LOCK,32MM

92015-1493

1
Out of stock

92022

WASHER,18.3X34X4.5

92022-1658

1
Out of stock

92027

COLLAR,RR HUB,L=124.5

92027-1758

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92049

SEAL-OIL,RR BRAKE DRUM

92049-1194

1
Out of stock

92049A

SEAL-OIL,REAR HUB

92049-4001

1
Out of stock

92055

RING-O,16.8X2.4

92055-1258

1
Out of stock

92081

SPRING,BRAKE SHOE

42020-004

1
Out of stock

112

BOLT-UPSET

112H0640

1
Out of stock

185

BOLT-UPSET-WSP-SMALL

185H0818

1
Out of stock

187

BOLT-UPSET-WSP,6X14

187D0614

1
Out of stock

601

BEARING-BALL,#6007UU

601A6007UU

1
Out of stock
