Partiron

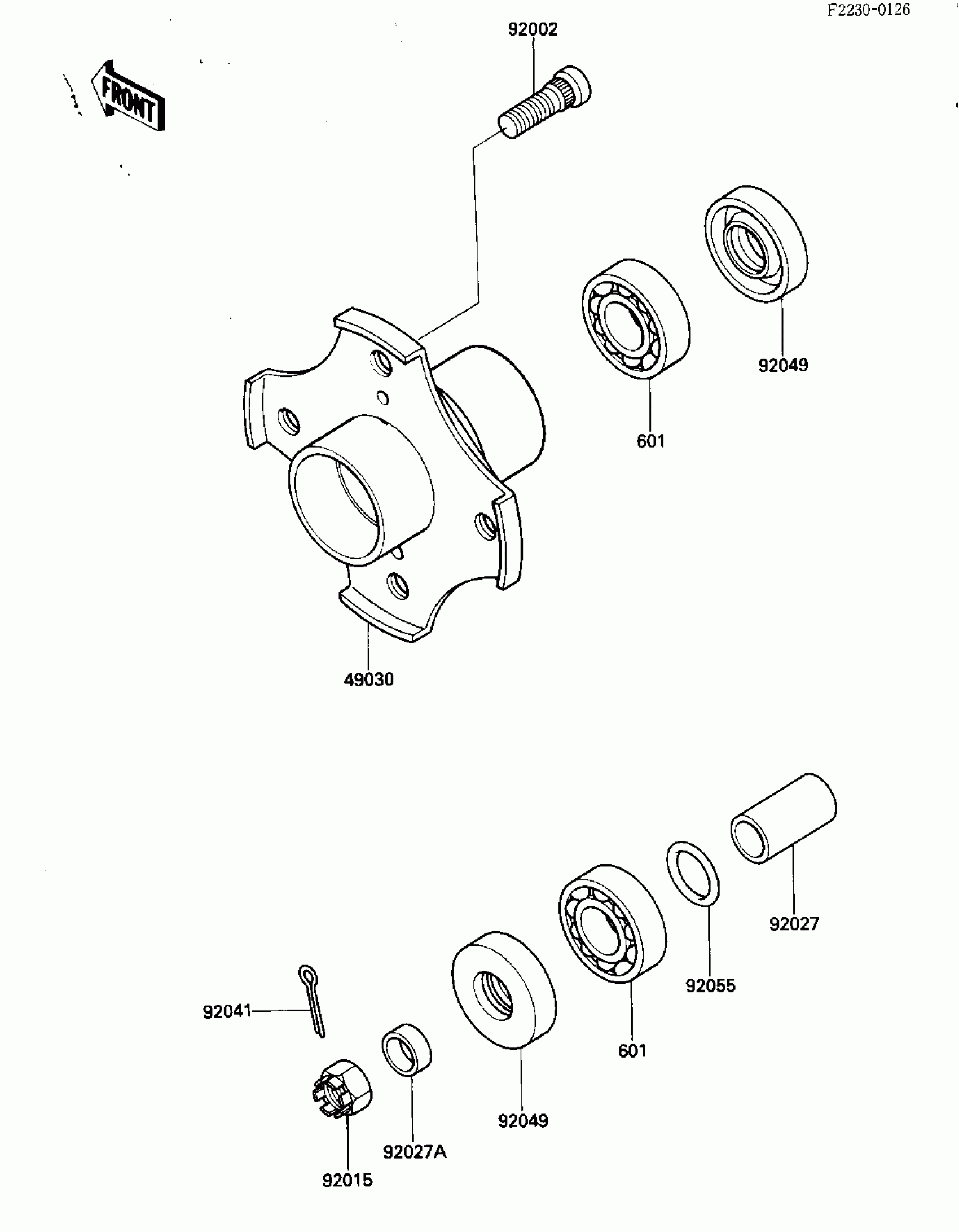

Kawasaki Bayou 185 FRONT HUB Diagram

#

Description
Price

49030

HUB,FR

49030-1066

Unavailable

92002

BOLT,10MM

92002-1459

$4.04

92015

NUT,16MM

92015-1455

$11.03

92027

COLLAR,17.2X22.2X45

92027-1814

$53.53

92027A

COLLAR,16.0X22X9.5

92027-1815

$11.41

92041

COTTER,4.0X35

92041-1053

$2.99

92049

SEAL-OIL

92049-1197

Unavailable

92055

RING-O,22.2MM

92055-1285

Unavailable

601

BEARING-BALL,#6203UU

601A6203UU

$17.09
