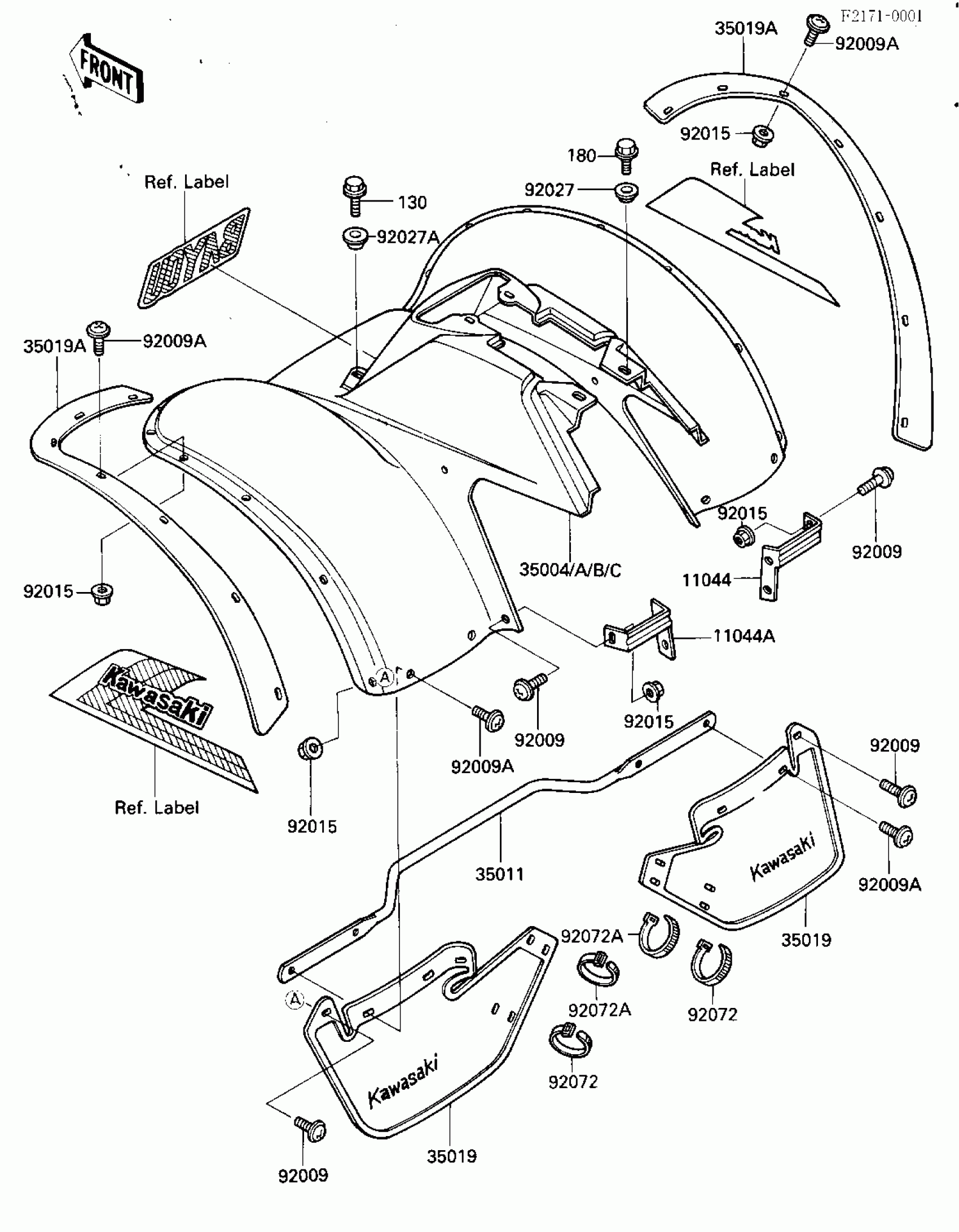

Kawasaki Bayou 185 FRONT FENDER Diagram

Description

Price

11044

BRACKET,FR FLAP,RH

11044-1071

Unavailable

11044A

BRACKET,FR FLAP,LH

11044-1072

Unavailable

35004

FENDER-FRONT,EBONY

35004-1184-6C

$604.60

35004A

FENDER-FRONT,F.RED

35004-1184-6L

$380.93

35004B

35004-1185-6C (Canada)

35004-1171-6C

Unavailable

35004C

35004-1185-6L (Canada)

35004-1171-6L

Unavailable

35011

STAY,FR FENDER

35011-1255

$81.97

35019

FLAP,FR

35019-1142

Unavailable

35019A

FLAP,SIDE

35019-1145

$65.51

92009

SCREW,6X18

92009-1663

Unavailable

92009A

SCREW,6X14

92009-1288

$2.99

92015

NUT,FLANGED,6MM,BLACK

92015-1237

$4.18

92027

COLLAR

92027-122

$6.56

92027A

COLLAR

92027-1908

$8.37

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=186

92072-056

$3.81

130

BOLT-FLANGED,8X25

130C0825

Unavailable

180

BOLT-UPSET-WS

180B0618

Unavailable
