1985 Kawasaki Bayou 185 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1985 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

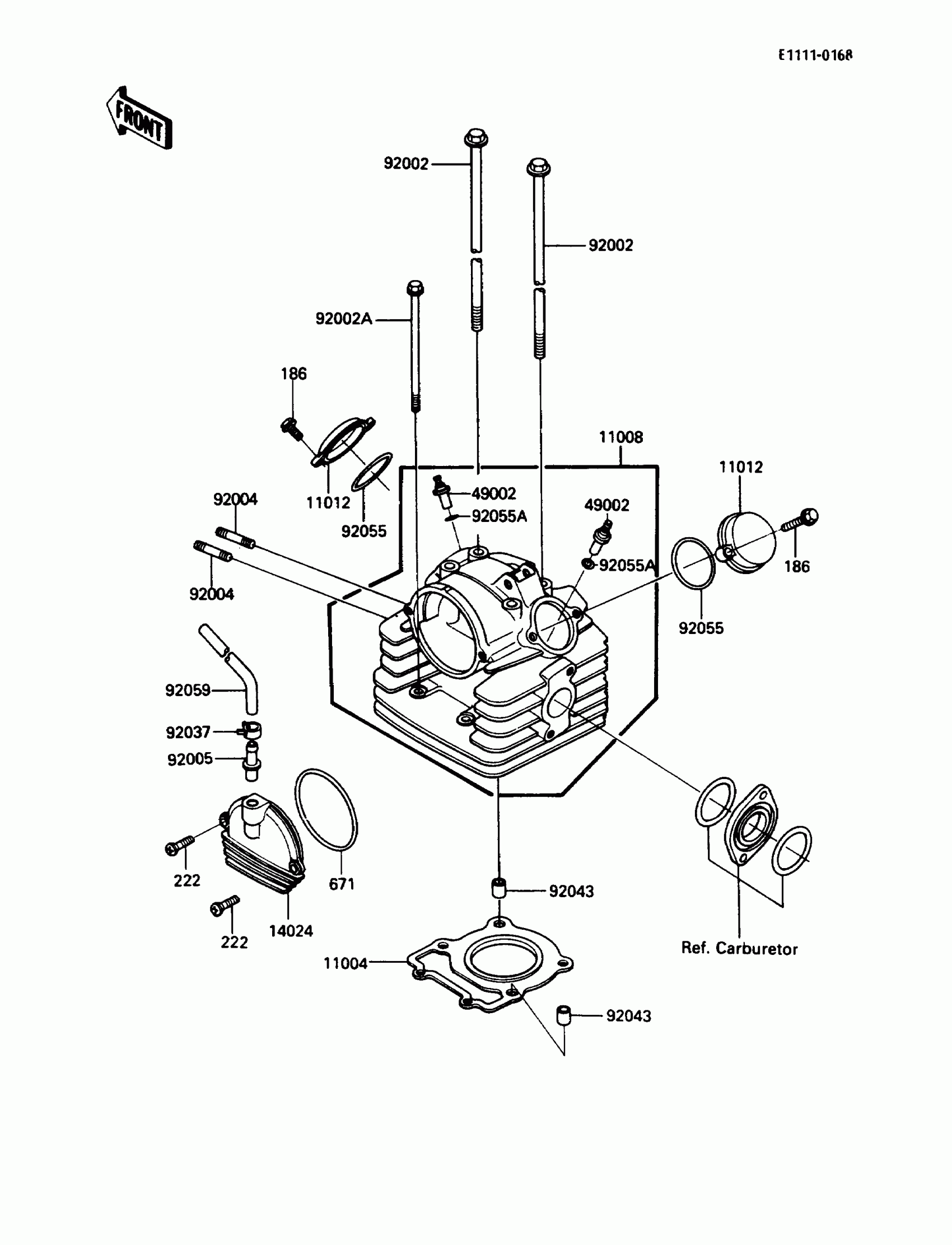

1985 Kawasaki Bayou 185 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1124

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1152

1
Out of stock

11012

CAP,ROCKER ARM

11012-1486

1
Out of stock

14024

COVER,CAMSHAFT

14025-1974

1
Out of stock

49002

GUIDE-VALVE

49002-1058

1
Out of stock

92002

BOLT,8X211

92001-1892

1
Out of stock

92002A

BOLT,6X97

92001-1893

1
Out of stock

92004

STUD,6X30

92004-1128

1
Out of stock

92005

FITTING,BREATHER PIPE

92005-1124

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92055A

RING-O,VALVE GUIDE

92055-1177

1
Out of stock

92059

TUBE,BREATHER

92059-1552

1
Out of stock

186

BOLT-UPSET-WP

186G0625

1
Out of stock

222

SCREW,OVL CNTSNK,6X16

222E0616

1
Out of stock

671

O RING,95MM

671B2595

1
Out of stock
