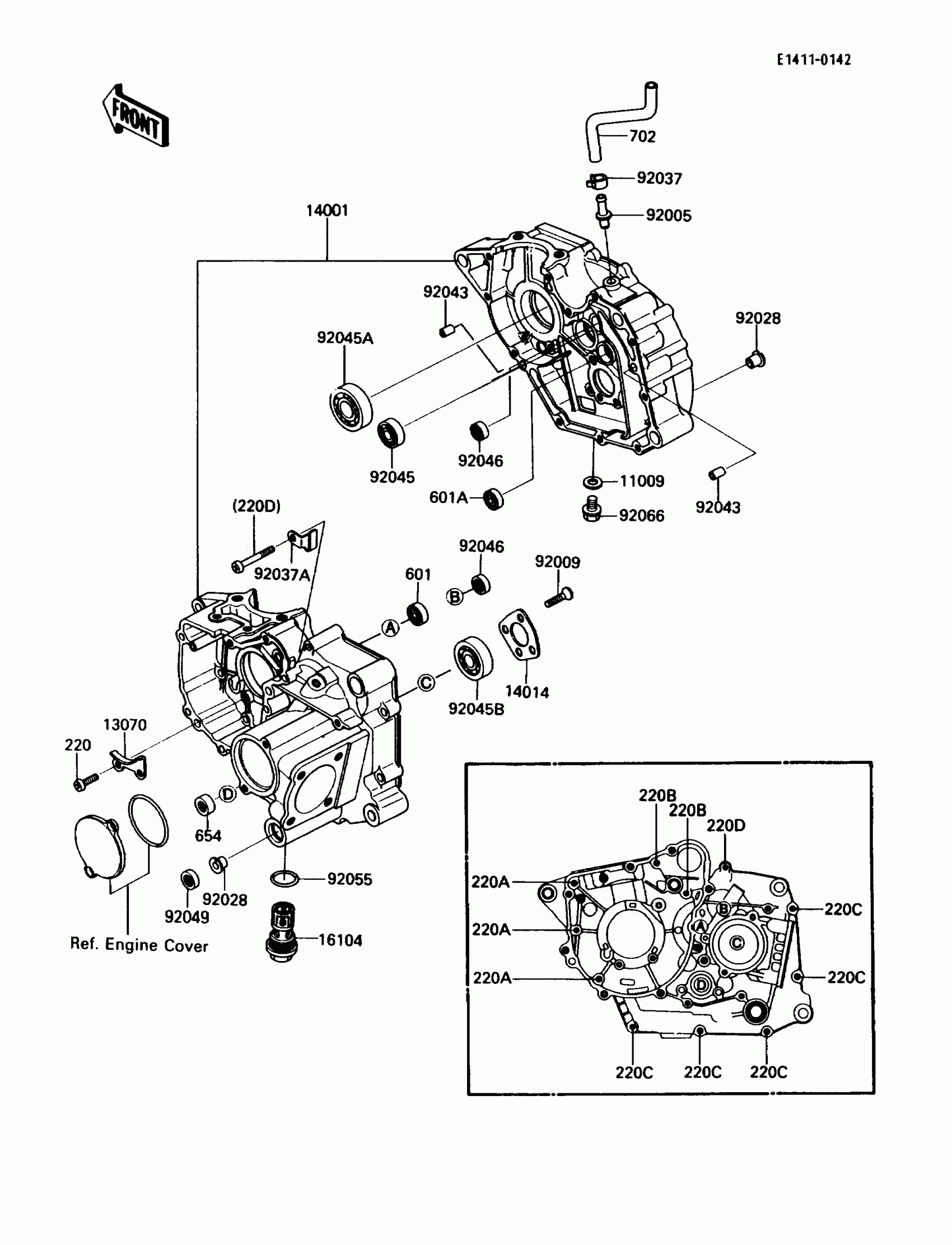

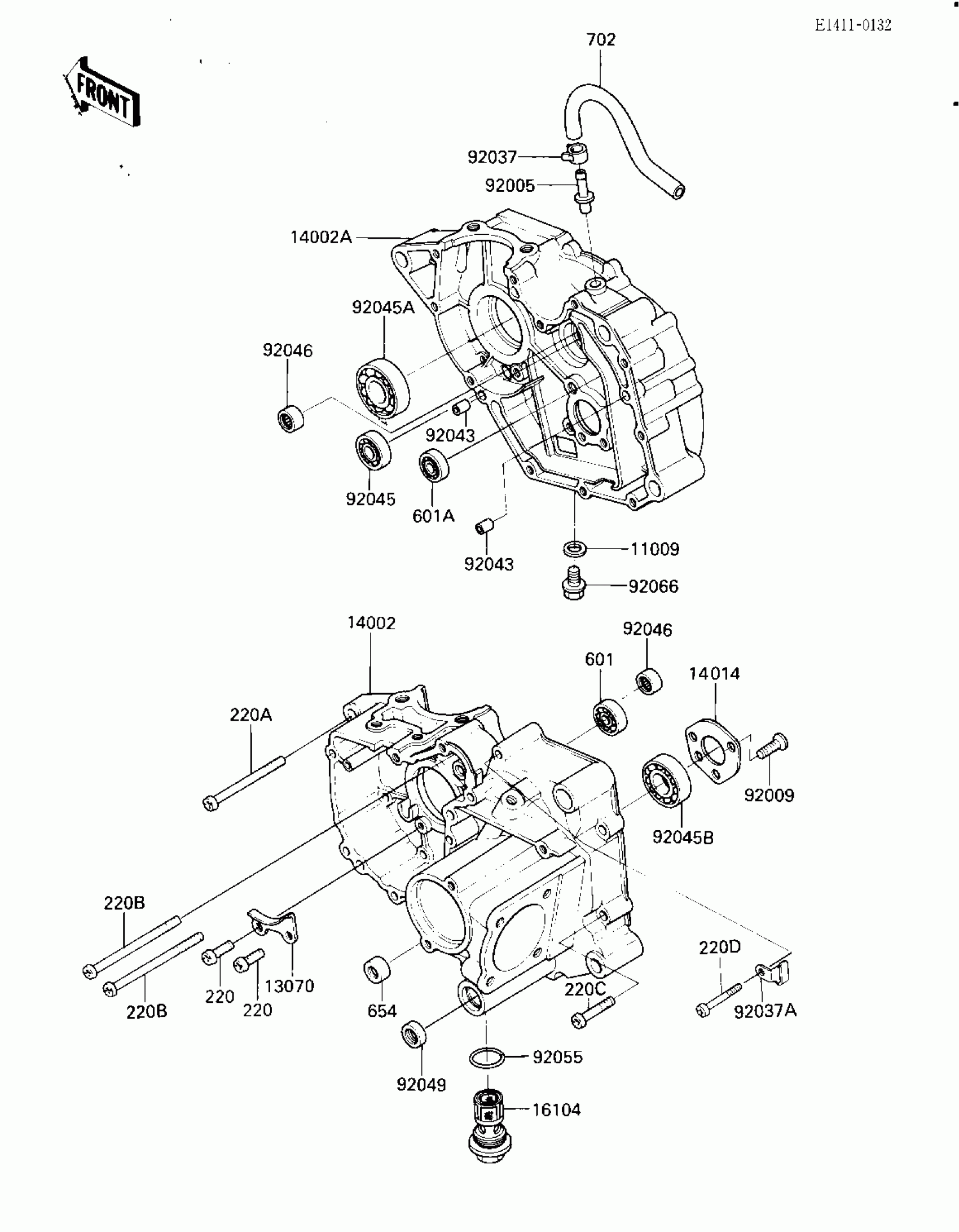

Kawasaki Bayou 185 CRANKCASE Diagram

#

Description
Price

11009

GASKET,12X22X2

92065-097

$0.66

13070

GUIDE,CAM CHAIN

13070-1110

Unavailable

14002

CRANKCASE,LH

14002-1337

Unavailable

14002A

CRANKCASE,RH

14002-1338

Unavailable

14014

PLATE-POSITION

14014-1055

Unavailable

16104

FILTER-COMP

16104-1055

Unavailable

92005

FITTING,BREATHER PIPE

92005-1124

$18.68

92009

SCREW,6X14

92009-1349

$3.19

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP

92037-1724

$4.68

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,#6204

92045-1032

$21.26

92045A

BEARING-BALL,6305JR2C3

92045-1120

$32.40

92045B

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92046

BRG,NEEDLE,HMK1515B

92046-060

Unavailable

92049

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,25.7X2.4

92055-1136

$3.81

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

220A

SCREW-PAN-CROS,6X60

220B0660

Unavailable

220B

SCREW PAN HEAD 6X70

220B0670

Unavailable

220C

SCREW-PAN-CROS

220X0635

Unavailable

220D

SCREW-PAN-CROS

220X0650

Unavailable

601

BEARING-BALL

601A6202Z

$17.27

601A

BEARING-BALL,#6202C3

601B6202

$6.58

654

SEAL OIL

654B14257

Unavailable

702

TUBE-RUBBER

702A08400

Unavailable
