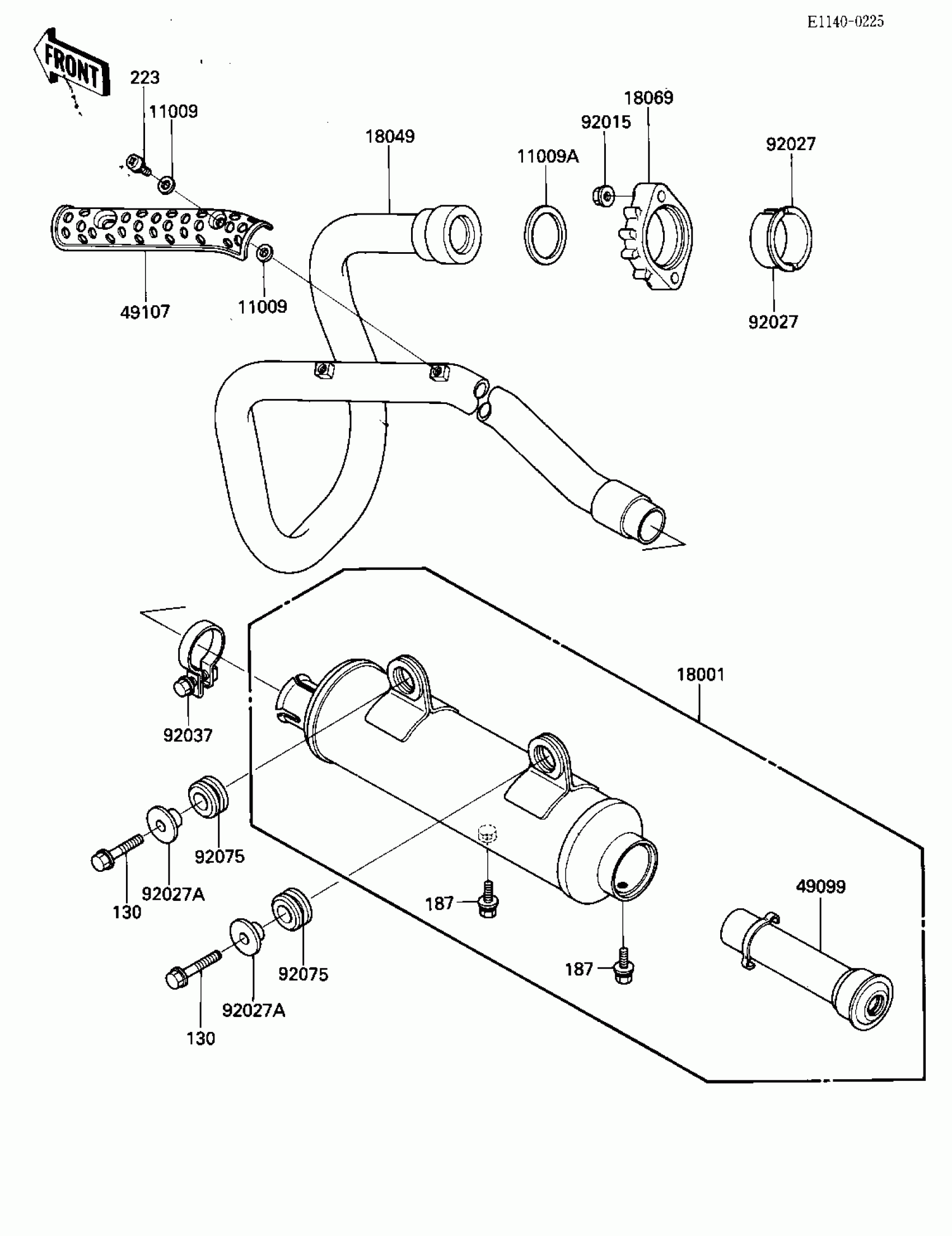

Kawasaki Bayou 185 MUFFLER Diagram

Description

Price

11009

GASKET,6.2X11.5X1.5

11060-1109

$3.49

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

18001

MUFFLER

18001-1574

Unavailable

18049

PIPE-EXHAUST

18049-1306

$321.10

18069

HOLDER,EXHAUST PIPE

18069-1006

$22.09

49099

BAFFLE-PIPE MUFFLER

49099-1223

Unavailable

49107

COVER-EXHAUST PIPE

49107-1064

$44.05

92015

NUT,6MM

92015-1365

$3.81

92027

COLLAR,L=14.5

92027-1142

$3.81

92027A

COLLAR

92027-1873

$5.97

92037

CLAMP

92037-1650

Unavailable

92075

DAMPER RUBB TANK FRNT

92075-013

$3.76

130

BOLT-FLANGED,8X30

130J0830

Unavailable

187

BOLT-UPSET-WSP

187C0612

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14
