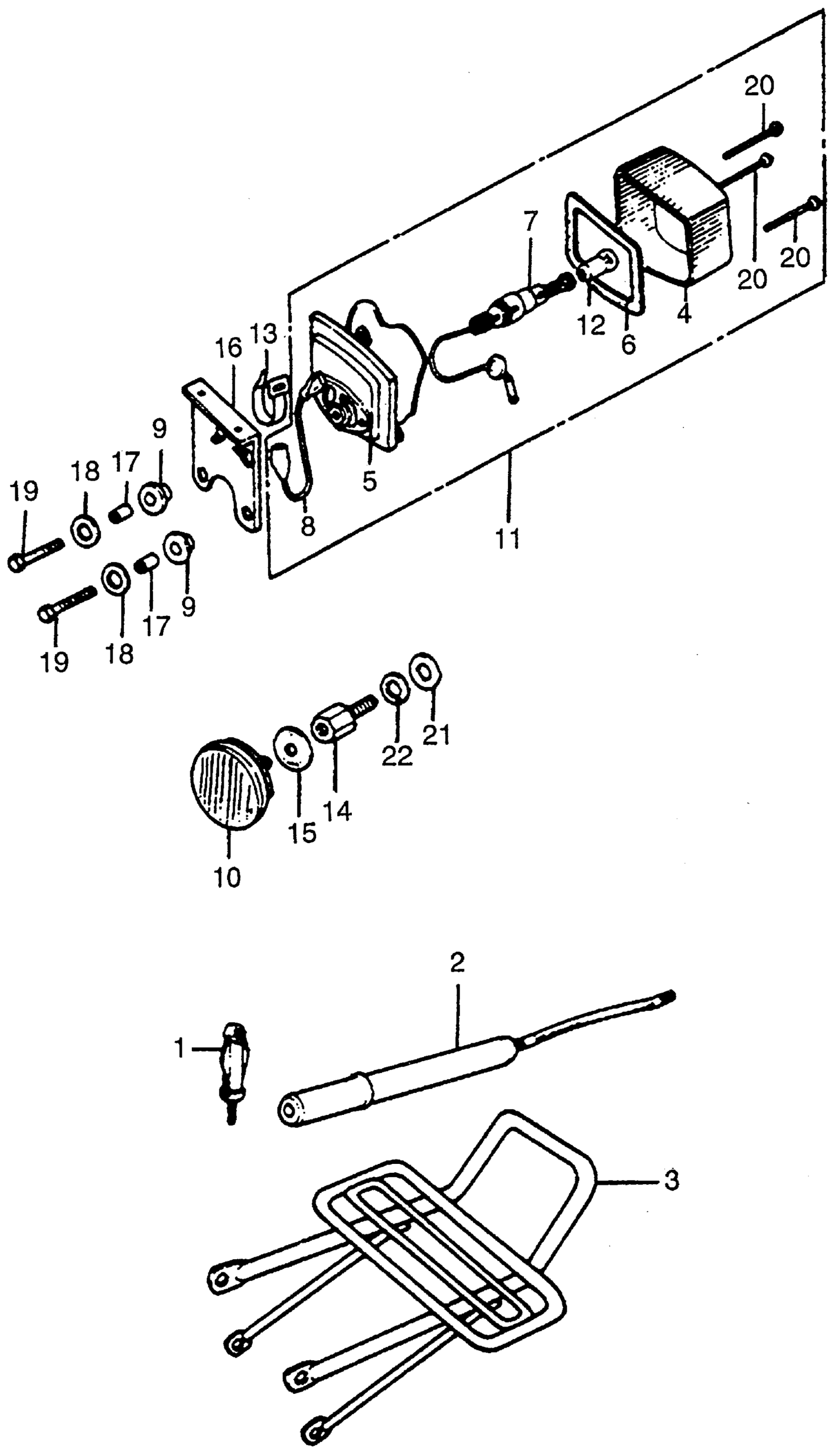

Honda ATC90A ALL-TERRAIN, JPN, VIN# US90-100122 OPTIONAL PARTS Diagram

#

Description
Price

1

GAUGE, TIRE (NOT AVAILABLE)

89301-918-672

Unavailable

2

TIRE, PUMP This part replaces 08105-25900.

0Y105-25900

Unavailable

3

CARRIER (NOT AVAILABLE)

04503-918-010

Unavailable

4

LENS, TAILLIGHT

33702-329-671

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

SOCKET, TAILLIGHT (NOT AVAILABLE)

33710-918-670

Unavailable

8

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33711-918-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

11

UNIT, TAILLIGHT (NOT AVAILABLE)

33800-918-670

Unavailable

12

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

13

STRAP, HOLDING (NOT AVAILABLE)

38903-538-000

Unavailable

14

BOLT, REFLECTOR (NOT AVAILABLE)

51420-918-670

Unavailable

15

SEAT, REFLECTOR (NOT AVAILABLE)

51421-918-670

Unavailable

16

STAY, TAILLIGHT

81201-918-670

Unavailable

17

COLLAR, TAILLIGHT UNIT (NOT AVAILABLE)

84706-342-000

Unavailable

18

WASHER (20MM)

90581-310-000

$1.90

18

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

SCREW, PAN (4X55)

93500-04055-4J

$1.49

21

WASHER, PLAIN (8MM)

94101-08200

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49
