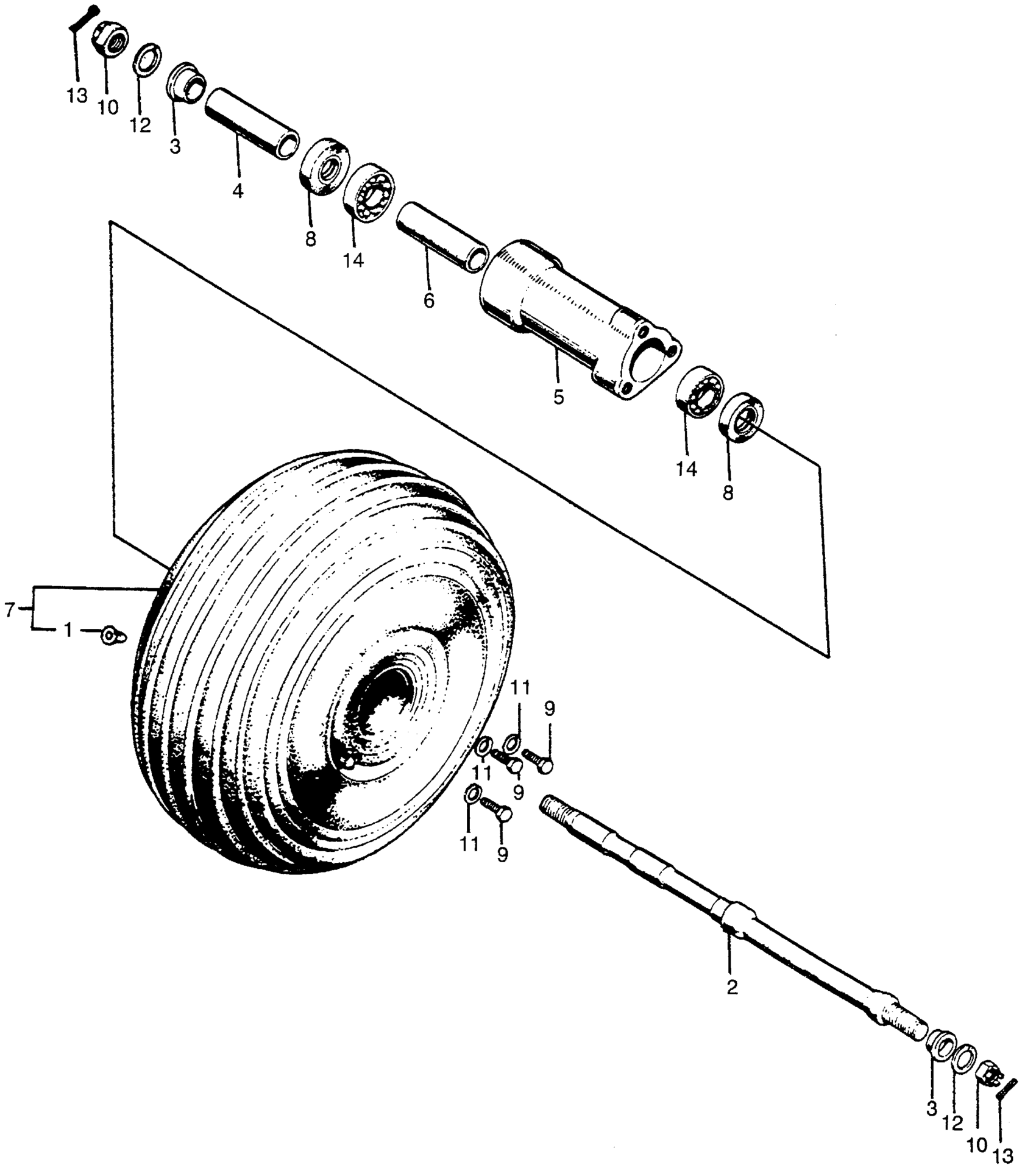

Honda ATC90A ALL-TERRAIN, JPN, VIN# US90-100122 FRONT WHEEL + AXLE Diagram

TIRE PLUG (NOT AVAILABLE)

42712-918-000

Unavailable

AXLE, FR. WHEEL This part replaces 44301-918-020.

44301-942-000

Unavailable

AXLE, FR. WHEEL

44301-942-000

Unavailable

COLLAR, FR. AXLE

44302-918-000

Unavailable

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-918-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE)

44601-918-030

Unavailable

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-918-010

Unavailable

TIRE, RR. (22X11.0-3.5) (OHTSU) (NOT AVAILABLE)

42710-918-007

Unavailable

TIRE, WHEEL (22X11-3.5) (OHTSU) (NOT AVAILABLE)

44710-918-007

Unavailable

DUST SEAL (35X20X7) (ARAI) This part replaces 91201-918-025.

91257-HB3-003

$8.80

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

NUT, CASTLE (12MM)

94011-12000-0S

$1.54

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (12MM)

94111-12000

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
