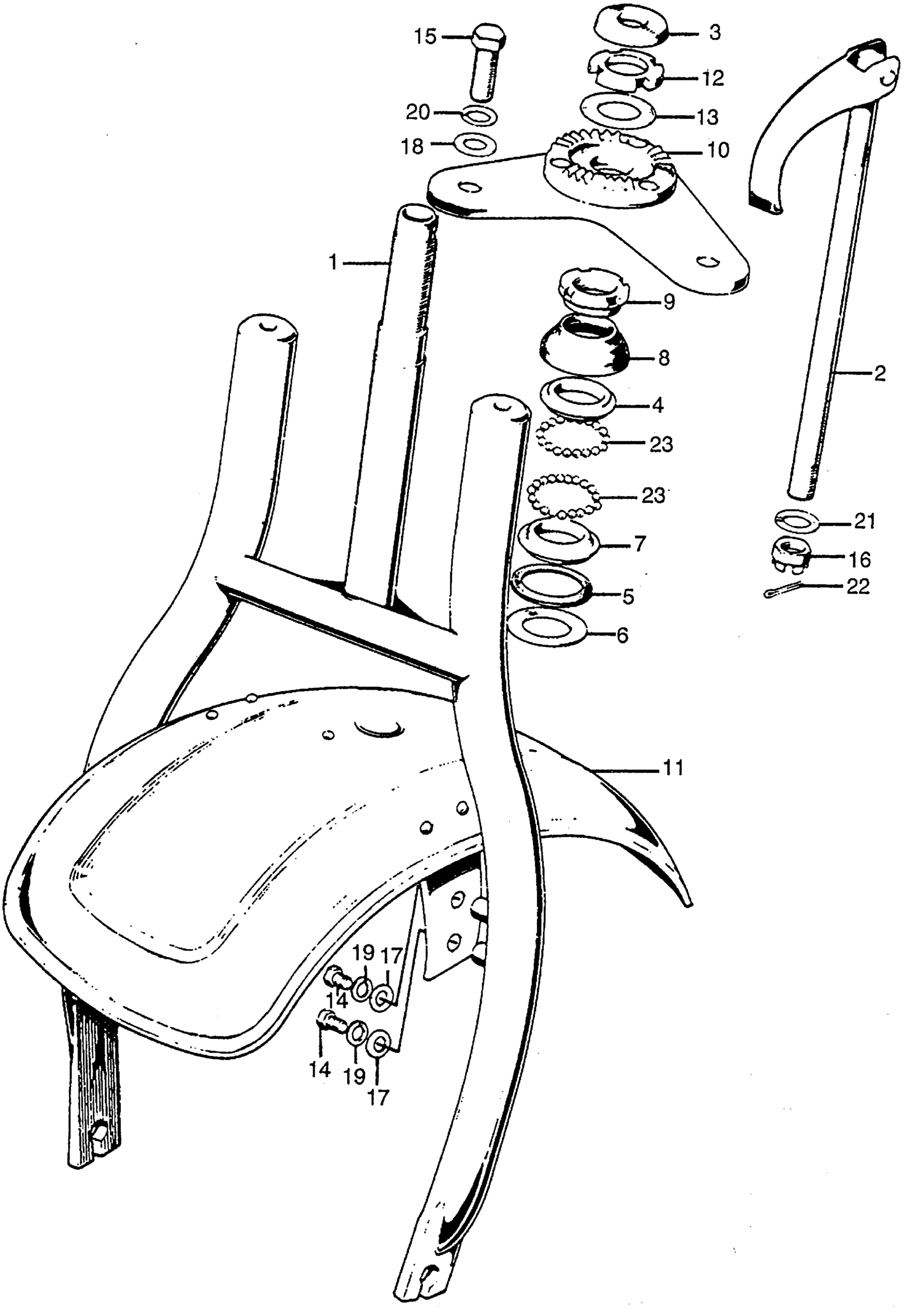

Honda ATC90A ALL-TERRAIN, JPN, VIN# US90-100122 FRONT FORK + FRONT FENDER K-K1 Diagram

#

Description
Price

1

FORK, FR. *R23* (TAHITIAN RED)

51400-918-040EC

Unavailable

1

FORK, FR. *G31* (MIGHTY GREEN)

51400-918-040NE

Unavailable

1

FORK, FR.

51400-918-040Z

Unavailable

2

LEVER, HANDLEBAR CLAMP (NOT AVAILABLE)

53130-102-000

Unavailable

3

WASHER, HANDLEBAR CLAMP LEVER (NOT AVAILABLE)

53133-102-000

Unavailable

4

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

4

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-GF8-000

$4.17

6

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

7

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

SPLASH GUARD, STEERING HEAD TOP (NOT AVAILABLE)

53222-918-000

Unavailable

9

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53229-098-310

Unavailable

10

BRIDGE, FORK TOP *NH35* (CLOUD SILVER)

53230-918-000AU

Unavailable

11

FENDER, FR. (NOT AVAILABLE)

61100-918-030Z

Unavailable

11

FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

61100-918-030EC

Unavailable

11

FENDER, FR. *G31* (MIGHTY GREEN) (NOT AVAILABLE)

61100-918-030NE

Unavailable

12

NUT C, STEERING STEM

95020-13100

Unavailable

13

WASHER, STEERING STEM

90503-051-870

$2.84

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

BOLT, HEX. (10X22) This part replaces 92000-10022-0A.

92101-10022-0A

Unavailable

16

NUT, CASTLE (14MM)

94012-14000-0S

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, PLAIN (10MM)

94101-10000

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

WASHER, SPRING (8MM)

94111-10000

$1.49

21

WASHER, SPRING (14MM)

94111-14000

Unavailable

22

PIN, COTTER (3.0X45)

94201-30450

$1.49

23

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
