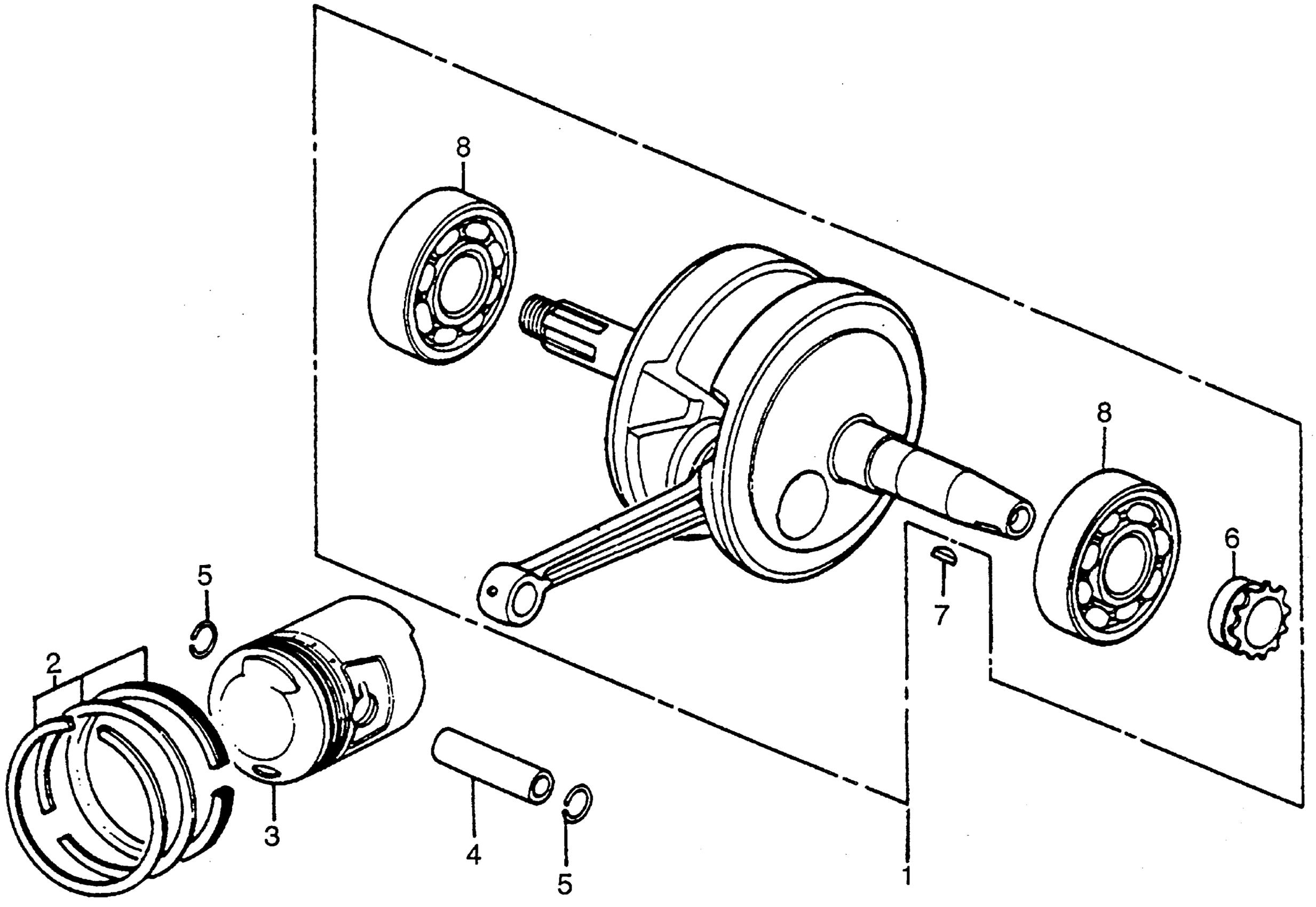

Honda ATC90A ALL-TERRAIN, JPN, VIN# US90-100122 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-071-010

Unavailable

2

RING SET, PISTON (OS 0.25)

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50)

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75)

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00)

130D1-121-762

Unavailable

2

RING SET, PISTON This part replaces 13010-028-025.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-035.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-121-732.

13011-121-762

$23.12

2

RING SET, PISTON

13011-121-762

$23.12

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-025.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-028-035.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-121-732.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-028-025.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-028-035.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-121-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-028-025.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-028-035.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) This part replaces 13040-121-732.

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-028-025.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-028-035.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13050-121-732.

130D1-121-762

Unavailable

3

PISTON (STD)

13101-028-070

Unavailable

3

PISTON (OS 0.25)

13102-028-070

$37.74

3

PISTON (OS 0.50)

13103-028-070

Unavailable

3

PISTON (0.75)

13104-028-070

Unavailable

3

PISTON (1.00)

13105-028-070

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

6

SPROCKET, TIMING (15T)

14311-071-000

Unavailable

7

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

8

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05
