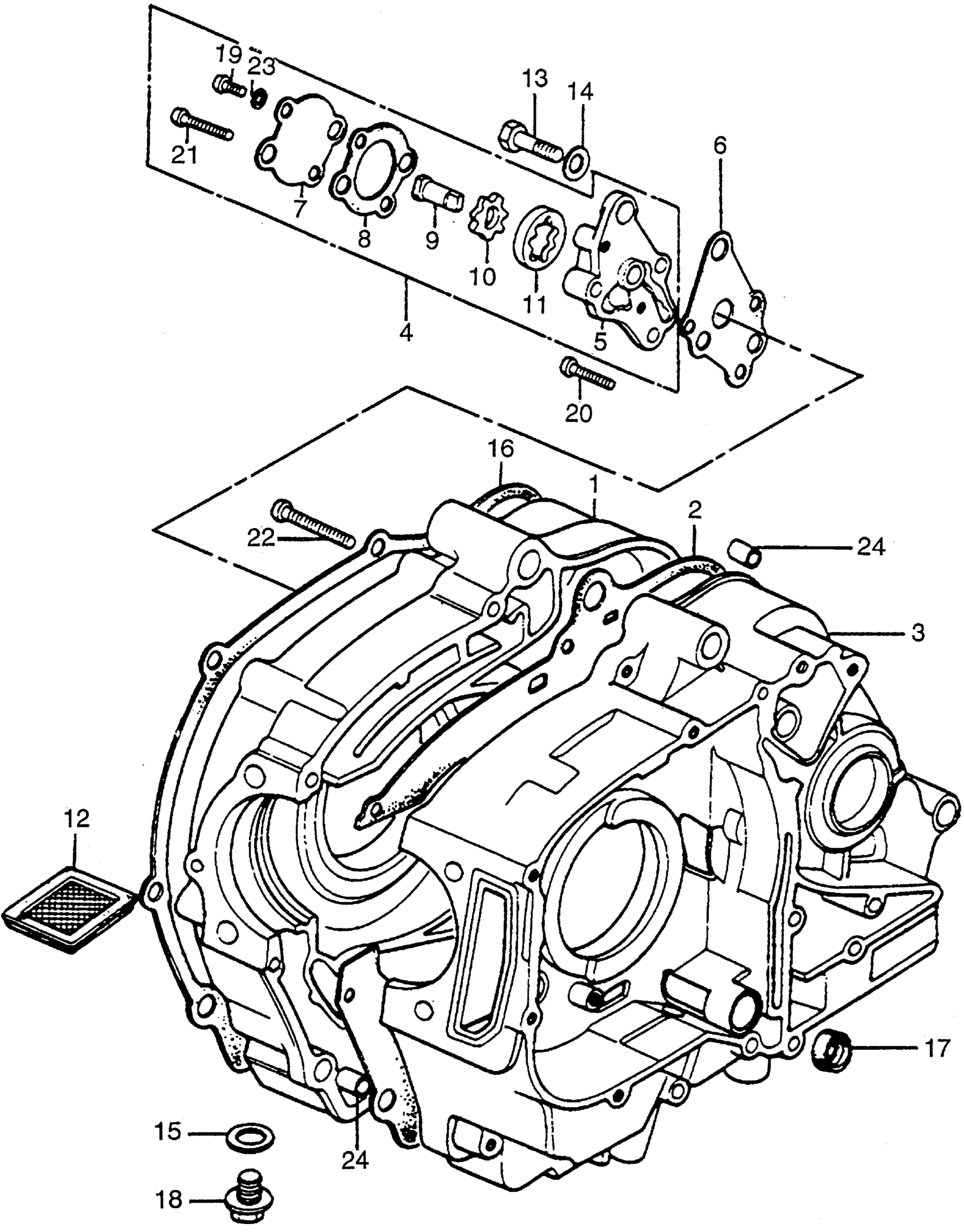

Honda ATC90A ALL-TERRAIN, JPN, VIN# US90-100122 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-052-040

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-052-000.

11191-052-306

Unavailable

3

CRANKCASE, L.

11200-918-000

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE)

15100-053-010

Unavailable

5

BODY, OIL PUMP

15111-053-020

Unavailable

6

GASKET, OIL PUMP BODY This part replaces 15119-028-030.

15119-028-306

Unavailable

6

GASKET, OIL PUMP BODY

15119-028-306

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15121-028-060

Unavailable

8

GASKET, OIL PUMP COVER

15128-028-030

Unavailable

9

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15181-028-050

Unavailable

10

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) This part replaces 15331-035-000.

15331-035-004

Unavailable

10

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-035-004

Unavailable

11

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-035-000.

15332-035-004

Unavailable

11

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-035-004

Unavailable

12

SCREEN, OIL FILTER

15421-035-010

$3.80

13

BOLT, OIL JOINT (NOT AVAILABLE)

90015-028-000

Unavailable

14

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

16

GASKET, R. CRANKCASE COVER This part replaces 11393-028-020.

11393-028-306

$12.58

16

GASKET, R. CRANKCASE COVER

11393-028-306

$12.58

17

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

17

OIL SEAL (11.6X19X6) This part replaces 91204-071-003.

91204-HB2-003

$7.40

17

OIL SEAL (11.6X19X6) This part replaces 91204-121-711.

91204-HB2-003

$7.40

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (5X12)

93500-05012-0A

$1.49

20

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

20

SCREW, PAN (6X16)

93500-06016-0A

$1.49

21

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

22

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

22

SCREW, PAN (6X40)

93500-06040-0A

$1.49

23

WASHER, SPRING (5MM)

94111-05000

$1.49

24

PIN A, DOWEL (10X14)

94301-10140

$2.28
