1969 Yamaha AS2C (AS2C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

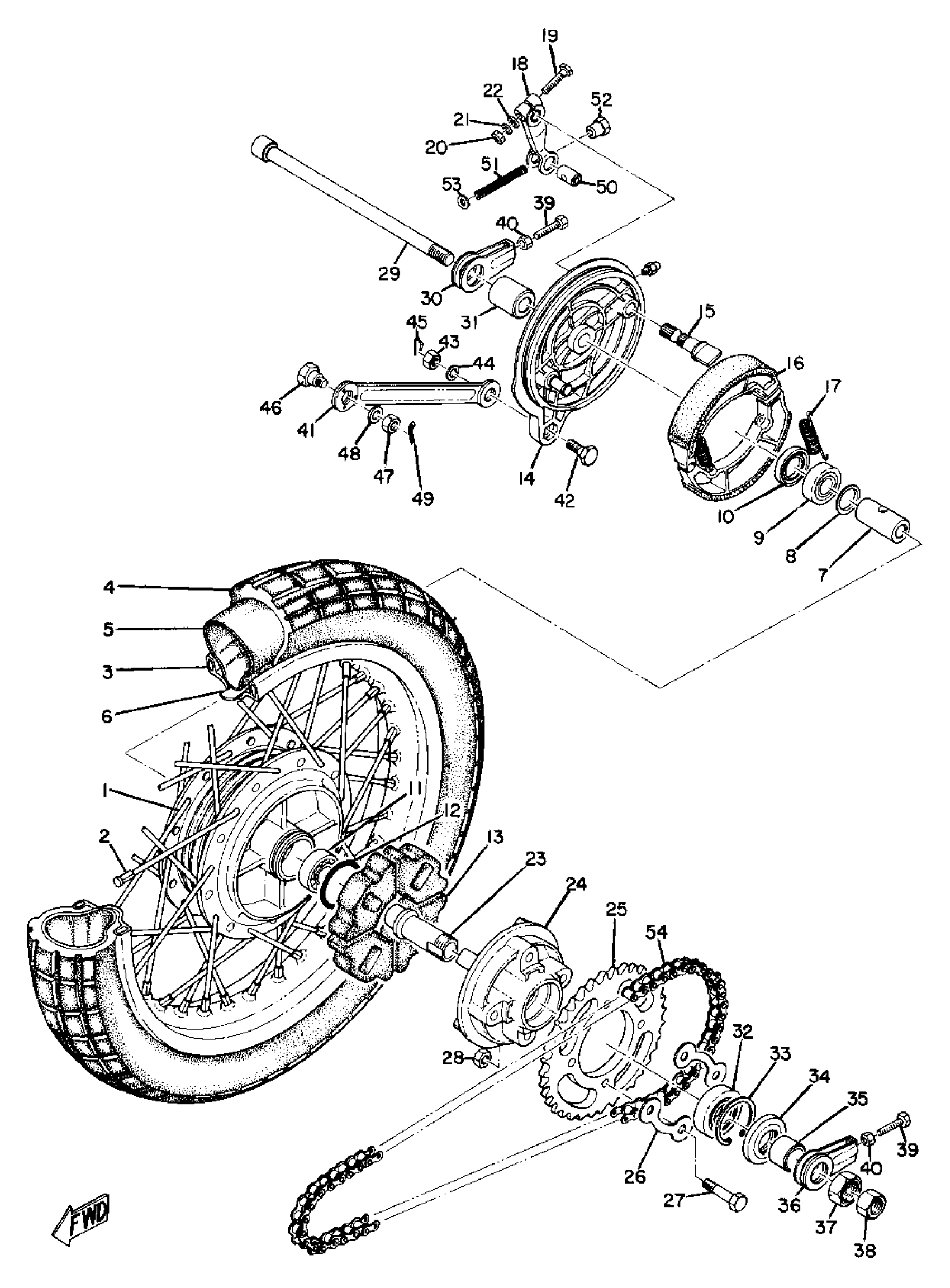

1969 Yamaha AS2C (AS2C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

183-25311-00-00

1
Out of stock

2

SPOKE SET, REAR

183-25304-01-00

1
Out of stock

3

RIM 1.60X18

(94416-18018-00)

1
Out of stock

4

275X18 YOKO Y93C

(94127-18312-00)

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

10

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

12

O-RING (183)

93210-42101-00

—

$7.74

In stock

13

DAMPER, CLUTCH

304-25364-01-00

1

$21.12

In stock

14

BRAKE SHOE PLT ASSEMBLY

(507-25320-10-00)

1
Out of stock

15

CAMSHAFT

(183-25351-00-00)

1
Out of stock

16

BRAKE SHOE SET-2PCS

183-W2536-00-00

1
Out of stock

17

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

18

LEVER, CAM SHAFT

122-25355-00-00

—
Out of stock

19

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

SHAFT, SPROCKET

183-25387-00-00

—
Out of stock

24

CLUTCH, HUB

58K-25366-00-00

1
Out of stock

25

SPROCKET, DRVN 37T

183-25437-20-00

1
Out of stock

25

SPROCKET, DRIVN 39T

183-25439-20-00

1
Out of stock

26

WASHER

4AW-25412-00-00

—

$4.24

In stock

27

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

AXLE, WHEEL

382-25381-00-00

1
Out of stock

30

PULLER, CHAIN 2

(183-25389-00-00)

1
Out of stock

31

COLLAR

90387-15425-00

1
Out of stock

32

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

33

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

34

SEAL,OIL

93106-26005-00

—

$6.67

In stock

35

COLLAR 183253860000

90387-20165-00

—

$5.77

In stock

36

PULLER, CHAIN 1

(183-25388-00-00)

1
Out of stock

37

NUT, HEXAGON

90170-20167-00

—
Out of stock

38

NUT(6TC)

95337-14600-00

—

$10.25

In stock

39

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

40

NUT(650)

95380-06700-00

—

$6.17

In stock

41

BAR, TENSION

27L-25371-00-00

—
Out of stock

42

BOLT 1092537300

90109-08063-00

—
Out of stock

43

. NUT

95380-08700-00

1

$3.07

In stock

44

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

45

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

46

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

47

NUT(6L2)

95333-08600-00

—

$3.20

In stock

48

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

49

PIN, COTTER

91490-20025-00

—

$1.31

In stock

50

PIN 1562723700

90249-12008-00

—

$4.70

In stock

51

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

52

NUT (25K)

90179-06411-00

—

$5.10

In stock

53

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

54

CHAIN JOINT

54A--

1
Out of stock

54

CHAIN

9Y582-51115-00

—

$46.10

In stock
