1969 Yamaha AS2C (AS2C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

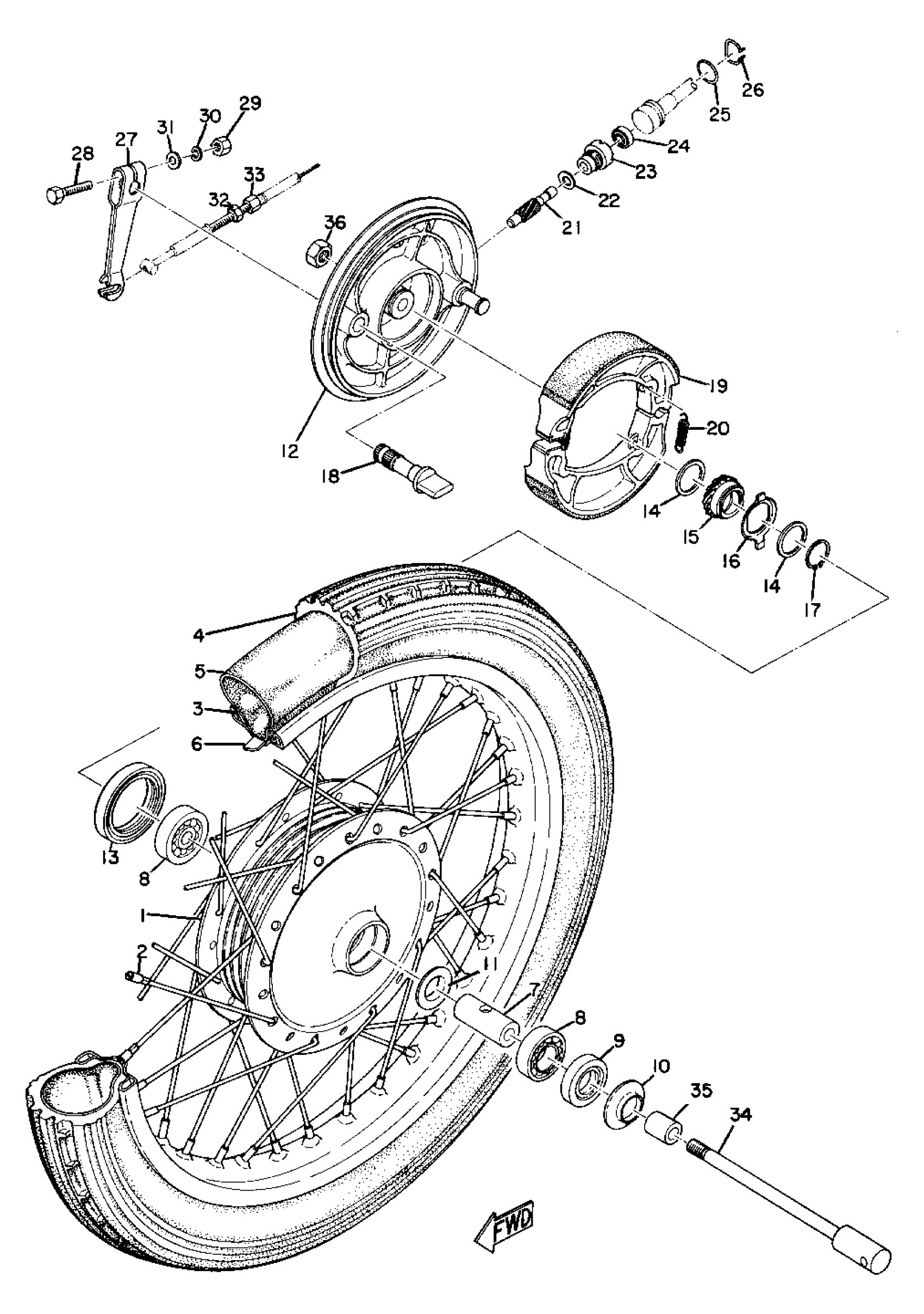

1969 Yamaha AS2C (AS2C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(183-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(183-25104-00-00)

1
Out of stock

3

RIM 1.40X18

(94414-18095-00)

1
Out of stock

4

TIRE REAR (164)

(94125-18351-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

BEARING

93306-30102-00

1
Out of stock

9

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

10

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

11

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

12

PLATE, BRAKE SHOE

(183-25121-00-00)

1
Out of stock

13

SEAL,OIL

93105-47007-00

1
Out of stock

14

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

15

GEAR, DRIVE

(183-25135-00-00)

1
Out of stock

16

CLUTCH, METER

183-25149-00-00

—
Out of stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

CAMSHAFT

(183-25351-00-00)

1
Out of stock

19

BRAKE SHOE SET-2PCS

183-W2536-00-00

1
Out of stock

20

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

21

GEAR, METER

(183-25138-00-00)

1
Out of stock

22

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

23

BUSHING

109-25136-00-00

—

$8.78

In stock

24

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

25

O-RING (26H)

93210-14579-00

—

$5.69

In stock

26

RING, STOP

102-25137-00-00

—
Out of stock

27

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

28

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

33

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

34

AXLE, WHEEL

357-25181-00-00

1
Out of stock

35

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

36

NUT(3DM)

95304-12600-00

—

$6.68

In stock
