1969 Yamaha AS2C (AS2C) Front Fork & Front Fender Diagram

← All diagrams

Find the part on the Front Fork & Front Fender diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

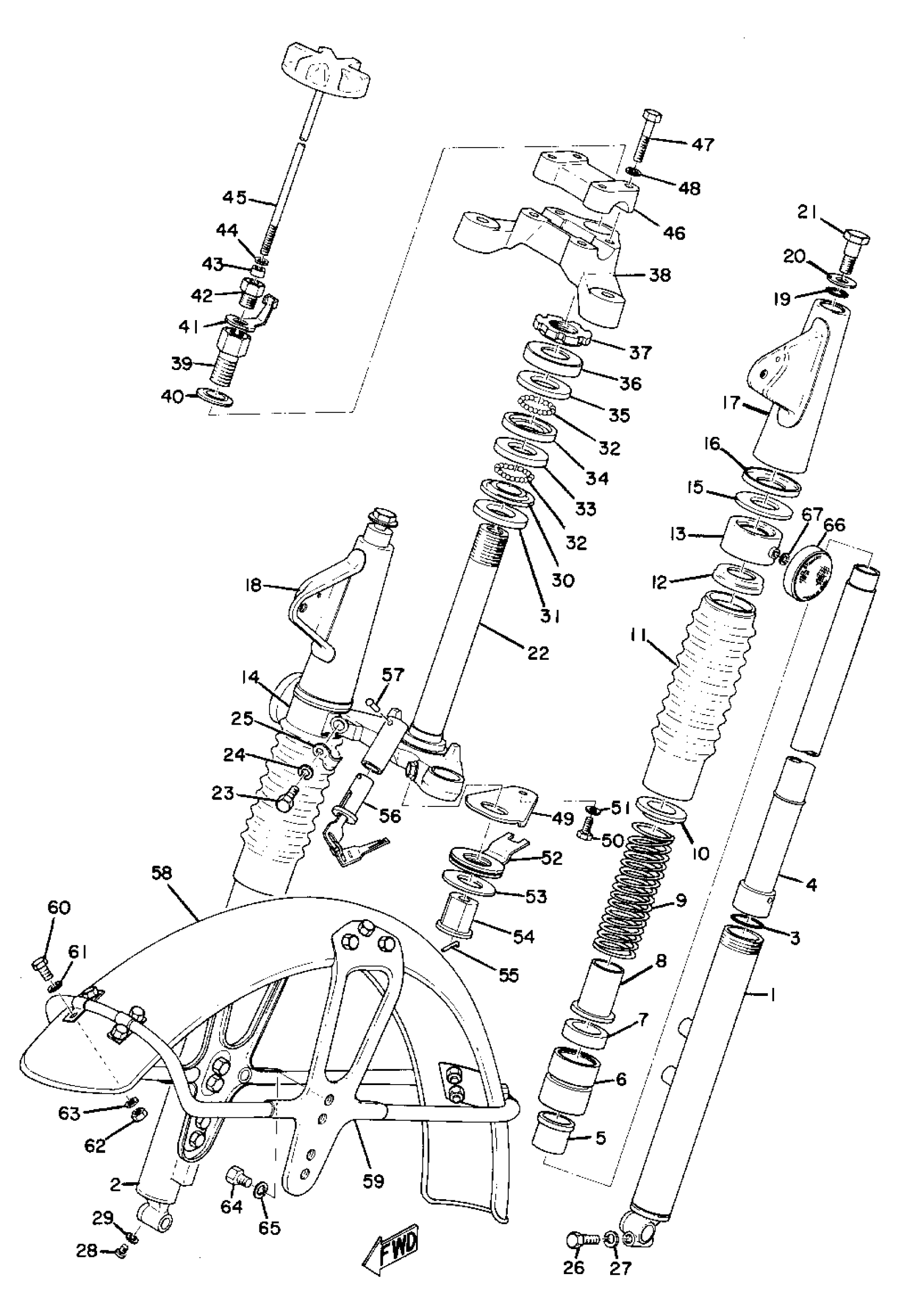

1969 Yamaha AS2C (AS2C) Front Fork & Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(183-23126-00-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(245-23100-60-62)

1
Out of stock

1

FRONT FORK ASSEMBLY

(245-23100-60-65)

1
Out of stock

2

TUBE, OUTER 2

(183-23136-00-00)

1
Out of stock

3

O-RING

(164-23147-00-00)

1
Out of stock

4

TUBE, INNER 1

(183-23124-00-00)

1
Out of stock

5

METAL, SLIDE 1

(164-23125-00-00)

1
Out of stock

6

OUTER NUT

(307-23150-01-00)

1
Out of stock

7

. OIL SEAL

164-23145-01-00

1
Out of stock

8

SEAT, SPRING LOWER

(164-23143-00-00)

1
Out of stock

9

SPRING, FRONT FORK

(183-23141-10-00)

1
Out of stock

10

SEAT, SPRING UPPER

(167-23142-00-00)

1
Out of stock

11

BOOT,FRONT FORK

183-23191-40-00

1
Out of stock

12

BOOT,FRONT FORK

183-23191-40-00

1
Out of stock

13

COVER, OUTER 1

(245-23122-60-00)

1
Out of stock

14

COVER, OUTER 2

(245-23132-60-00)

1
Out of stock

15

GASKET

(183-23163-00-00)

1
Out of stock

16

GUIDE, COVER LOWER

(183-23116-00-00)

1
Out of stock

17

COVER, UPPER 1

(183-23121-00-62)

1
Out of stock

17

COVER, UPPER 1

(183-23121-00-65)

1
Out of stock

18

COVER, UPPER 2

(183-23131-00-29)

1
Out of stock

18

COVER, UPPER 2

(183-23131-00-65)

1
Out of stock

19

GASKET

307-23114-00-00

—
Out of stock

20

WASHER, CAP

(183-23112-00-00)

1
Out of stock

21

BOLT, CAP

(307-23111-00-00)

1
Out of stock

22

UNDER BRACKET

(183-23340-00-00)

1
Out of stock

23

BOLT 1

122-23346-02-00

—
Out of stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

25

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

26

BOLT (682)

97013-08025-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

28

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

29

GASKET, DRAIN PLUG

122-23129-00-00

—
Out of stock

30

RACE, BALL 1

B6E-23411-00-00

—
Out of stock

31

SEAL, DUST

164-23462-00-00

—
Out of stock

32

BALL

93501-04011-00

—
Out of stock

33

RACE, BALL 2

B6E-23412-00-00

—
Out of stock

34

RACE,BALL 2

4FP-F3412-10-00

—
Out of stock

35

RACE, BALL 1

4FP-F3411-20-00

—
Out of stock

36

COVER, BALL RACE

136-23415-00-00

—
Out of stock

37

NUT

90179-25004-00

—
Out of stock

38

CROWN, HANDLE

(183-23435-00-38)

1
Out of stock

39

BOLT, UNION

(90401-16019-00)

1
Out of stock

40

WASHER, CROWN

(245-23443-00-00)

1
Out of stock

41

SPRING

(174-23428-00-00)

1
Out of stock

42

GUIDE, DAMPER

(174-23424-00-00)

1
Out of stock

43

WASHER, PLATE 1412342700

90202-06008-00

—
Out of stock

44

WASHER, PLATE

90201-06061-00

1
Out of stock

45

SHAFT, DAMPER

(183-23419-00-00)

1
Out of stock

46

HOLDER HANDLE UPR

164-23441-01-38

1
Out of stock

47

BOLT

97013-08035-00

—
Out of stock

48

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

49

PLATE, DAMPER 1

(174-23421-00-00)

1
Out of stock

50

BOLT(3JP)

97017-06010-00

—
Out of stock

51

WASHER, SPRING

92995-06100-00

1
Out of stock

52

PLATE, DAMPER 2

(183-23422-00-00)

1
Out of stock

53

DAMPER, FRICTION

(174-23425-00-00)

1
Out of stock

54

NUT, SPEC''L SHAPE

(90179-06032-00)

1
Out of stock

55

CLIP (156-83525-00)

90468-10050-00

—
Out of stock

56

STEERING LOCK ASSEMBLY

(122-23480-01-00)

1
Out of stock

57

RIVET

(122-23483-00-00)

1
Out of stock

58

FENDER, FRONT

(242-21510-00-93)

1
Out of stock

59

STAY, FENDER 1

(242-21513-00-00)

1
Out of stock

60

BOLT (661)

97013-06012-00

—
Out of stock

61

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

62

NUT(650)

95380-06700-00

—
Out of stock

63

WASHER, SPRING

92995-06100-00

1
Out of stock

64

BOLT(62E)

97013-08012-00

—
Out of stock

65

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

66

REFLECTOR, FRONT 1

(233-85111-00-00)

1
Out of stock

67

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
