1969 Yamaha AS2C (AS2C) Magneto Generator Diagram

← All diagrams

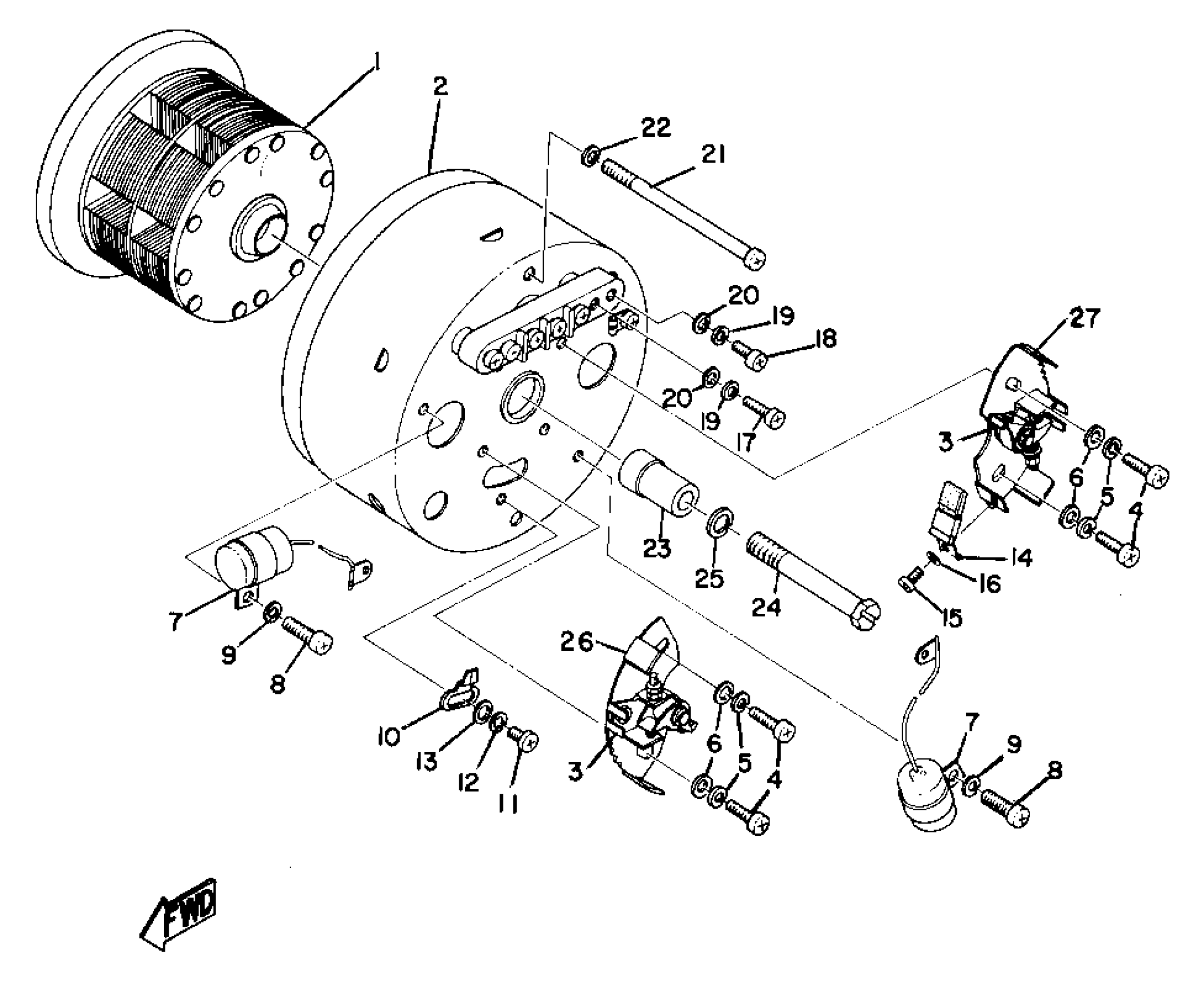

Find the part on the Magneto Generator diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha AS2C (AS2C) Magneto Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC MAGNET GEN ASSEMBLY

(183-81400-13-00)

1
Out of stock

1

ROTOR ASSEMBLY

(183-81450-12-00)

1
Out of stock

2

STATOR ASSEMBLY

(183-81410-12-00)

1
Out of stock

3

CONTACT BREAKER ASSY

183-81421-19-00

—
Out of stock

4

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

7

.. CONDENSER 1

183-81425-11-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

PLATE, TIMING

(183-81432-10-00)

1
Out of stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

LUBRICATOR

(183-81431-10-00)

1
Out of stock

15

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

18

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

20

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

21

SCREW, STATOR

(183-81435-10-00)

1
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

CAM

(183-81451-13-00)

1
Out of stock

24

BOLT

(195-81452-10-00)

1
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

PLATE, BREAKER

(183-81428-10-00)

1
Out of stock

27

PLATE, BREAKER

(183-81429-10-00)

1
Out of stock
