1969 Yamaha AS2C (AS2C) Handle & Wire Diagram

← All diagrams

Find the part on the Handle & Wire diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

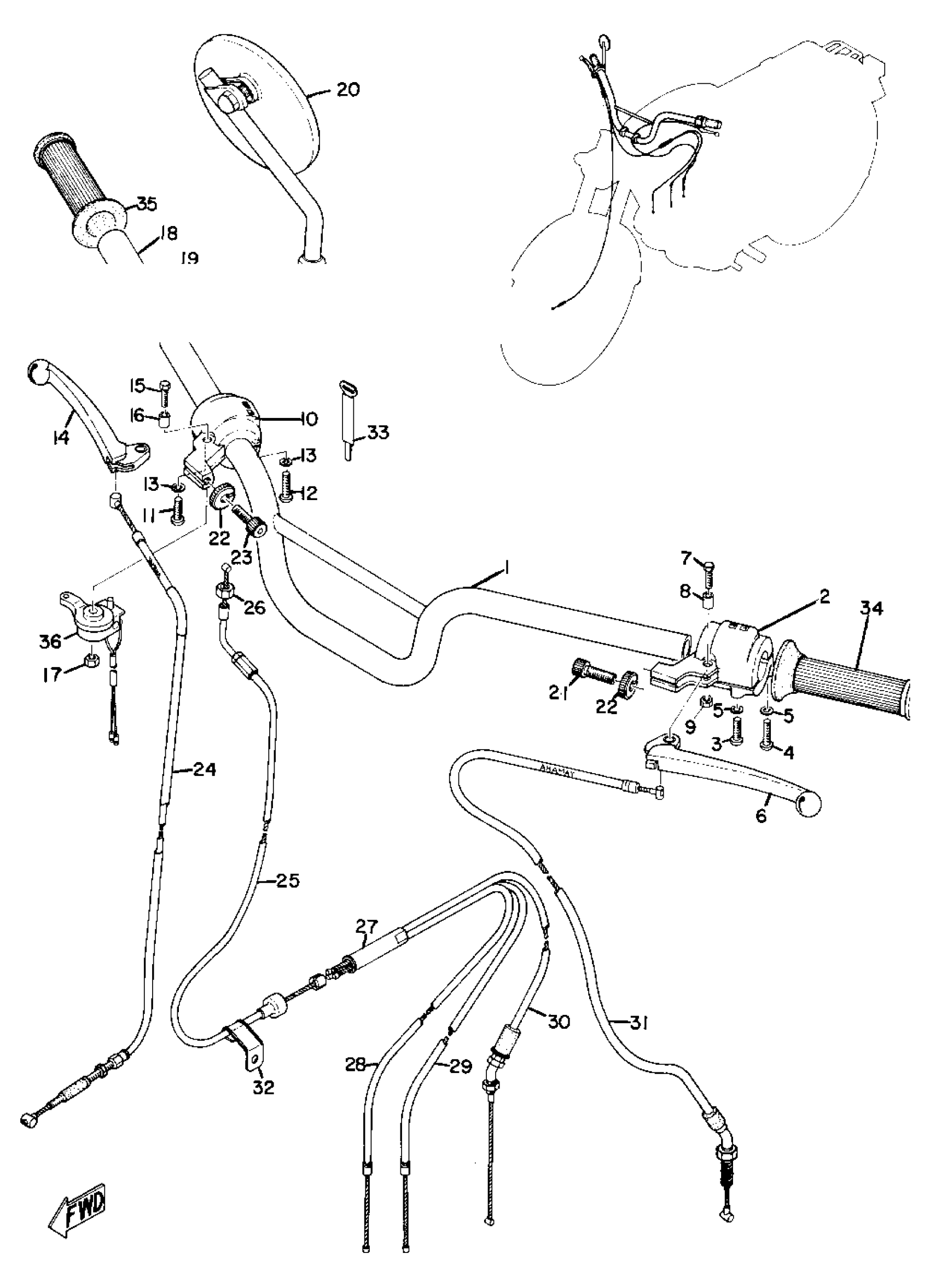

1969 Yamaha AS2C (AS2C) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(157-26111-00-00)

1
Out of stock

2

LEVER HOLDER ASSEMBLY 1

(218-82910-00-94)

1
Out of stock

3

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

4

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

LEVER L

150-83912-00-38

1
Out of stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

COLLAR, LEVER 1

(168-83913-00-00)

1
Out of stock

9

NUT(650)

95380-06700-00

1

$6.17

In stock

10

LEVER HOLDER ASSEMBLY 2

(218-82920-30-94)

1
Out of stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

LEVER R

(218-83922-30-38)

1
Out of stock

15

SCREW, LVR FITTING

(218-83915-30-00)

1
Out of stock

16

COLLAR, LEVER 1

(168-83913-00-00)

1
Out of stock

17

NUT(650)

95380-06700-00

1

$6.17

In stock

18

TUBE, GUIDE

1V1-26243-00-00

—

$14.08

In stock

19

RING, LEAF

150-26249-00-00

1
Out of stock

20

MIRROR ASY

253-26290-00-00

1
Out of stock

21

BOLT

90123-08002-00

—

$8.93

In stock

22

NUT

90179-08030-00

—

$3.78

In stock

23

BOLT

90123-08002-00

—

$8.93

In stock

24

CABLE, BRAKE

(241-26341-40-00)

1
Out of stock

25

CABLE, THROTTLE 1

(183-26311-10-00)

1
Out of stock

26

NUT, HEXAGON

90170-10038-00

—
Out of stock

27

CYLINDER, WIRE

156-26261-01-00

1
Out of stock

28

CABLE, THROTTLE 3

(183-26313-00-00)

1
Out of stock

29

CABLE, THROTTLE 3

(183-26313-00-00)

1
Out of stock

30

CABLE, PUMP

(218-26321-00-00)

1
Out of stock

31

CABLE, CLUTCH

218-26335-01-00

1
Out of stock

32

CLAMP

90465-06013-00

1
Out of stock

33

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

34

GRIP (LH)

156-26241-00-00

1
Out of stock

35

GRIP RH

(156-26242-00-00)

1
Out of stock

36

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock
