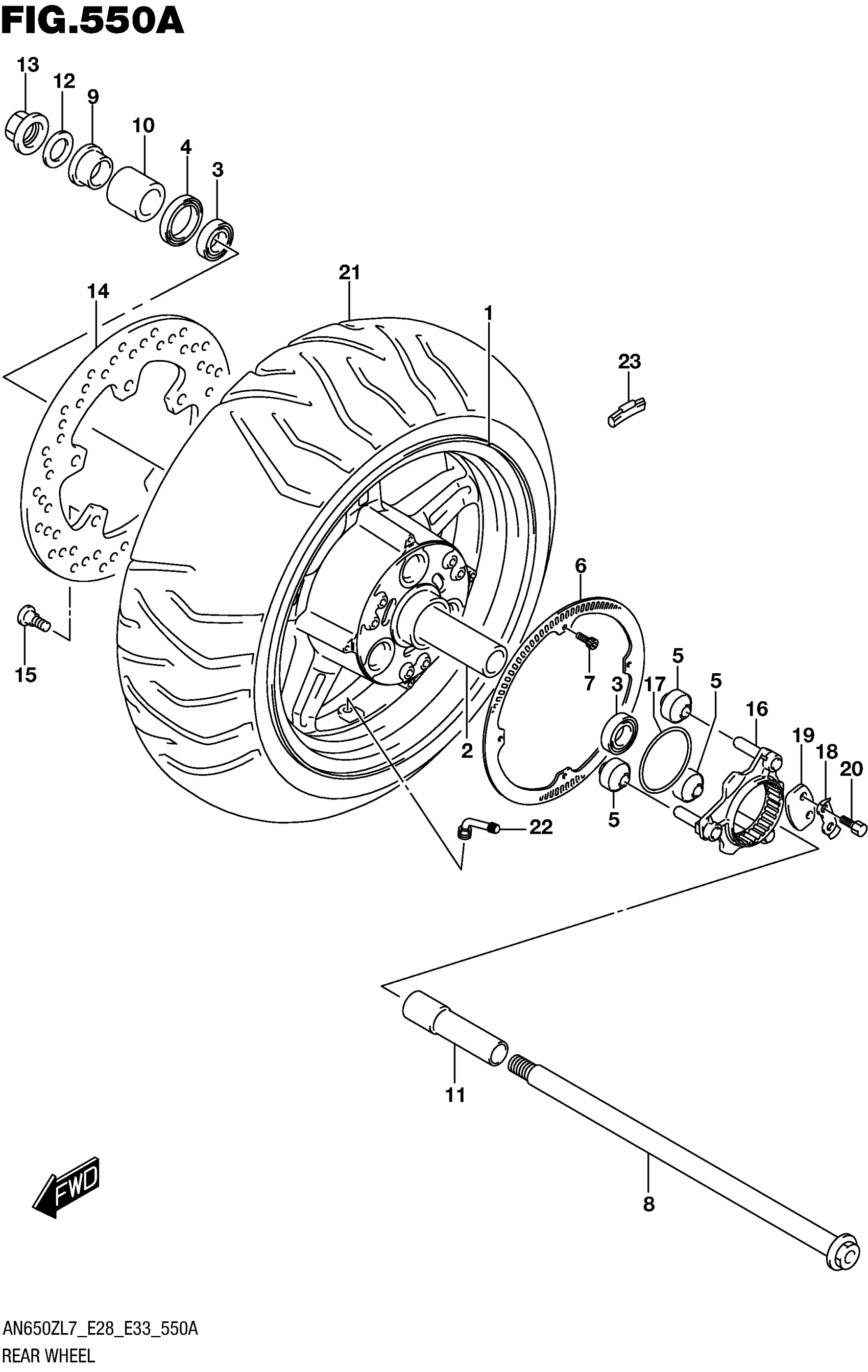

Suzuki AN650ZL7 (2017) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (14M/CXMT4.50)

64111-10G20-019

$996.13

1

(BLACK)

64111-10G20-019

$996.13

2

SPACER, REAR HUB BEARING

64731-10G00

$46.25

3

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

4

SEAL,OIL (27X47X7) This part replaces 64841-26J00.

09285-28004

$11.27

5

BUSH

09319-12062

$17.38

6

RING, SPEED SENSOR RR

64162-10G00

$266.03

7

BOLT

07130-0512A

$2.19

8

AXLE, REAR

64711-10G00

Unavailable

9

SPACER, RR AXLE RH

64741-10F00

$19.54

10

SPACER, REAR AXLE RH NO.1

64751-10G10

$17.78

11

SPACER, REAR AXLE LH

64772-10G00

Unavailable

12

WASHER

08322-0118B

$2.95

13

NUT

08319-3118A

$26.62

14

DISC, REAR BRAKE

69211-10G20

$177.40

15

BOLT (8X21)

09106-08160

$3.22

16

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

17

O RING (D:2.1,ID:65)

09280-65003

$4.03

18

WASHER

09169-06030

$3.42

19

WASHER, THRUST

64677-10G00

Unavailable

20

BOLT (6X16)

09119-06049

$1.63

21

TIRE,RR(160/60R | TH01 R This part replaces 65110-10G10.

65110-10G11

$313.43

21

TIRE,RR(160/60R | BRIDGESTONE This part replaces 65110-10G10.

65110-10G11

$313.43

22

VALVE ASSY, WHEEL RIM (PVR100

43130-39H00

$66.18

23-1

BALANCER, WHEEL NO.1 | 10G

43222-73H20

Unavailable

23-2

BALANCER, WHEEL NO.2 | 20G

43224-73H20

Unavailable

23-3

BALANCER, WHEEL NO.3 | 30G

43226-73H20

Unavailable
