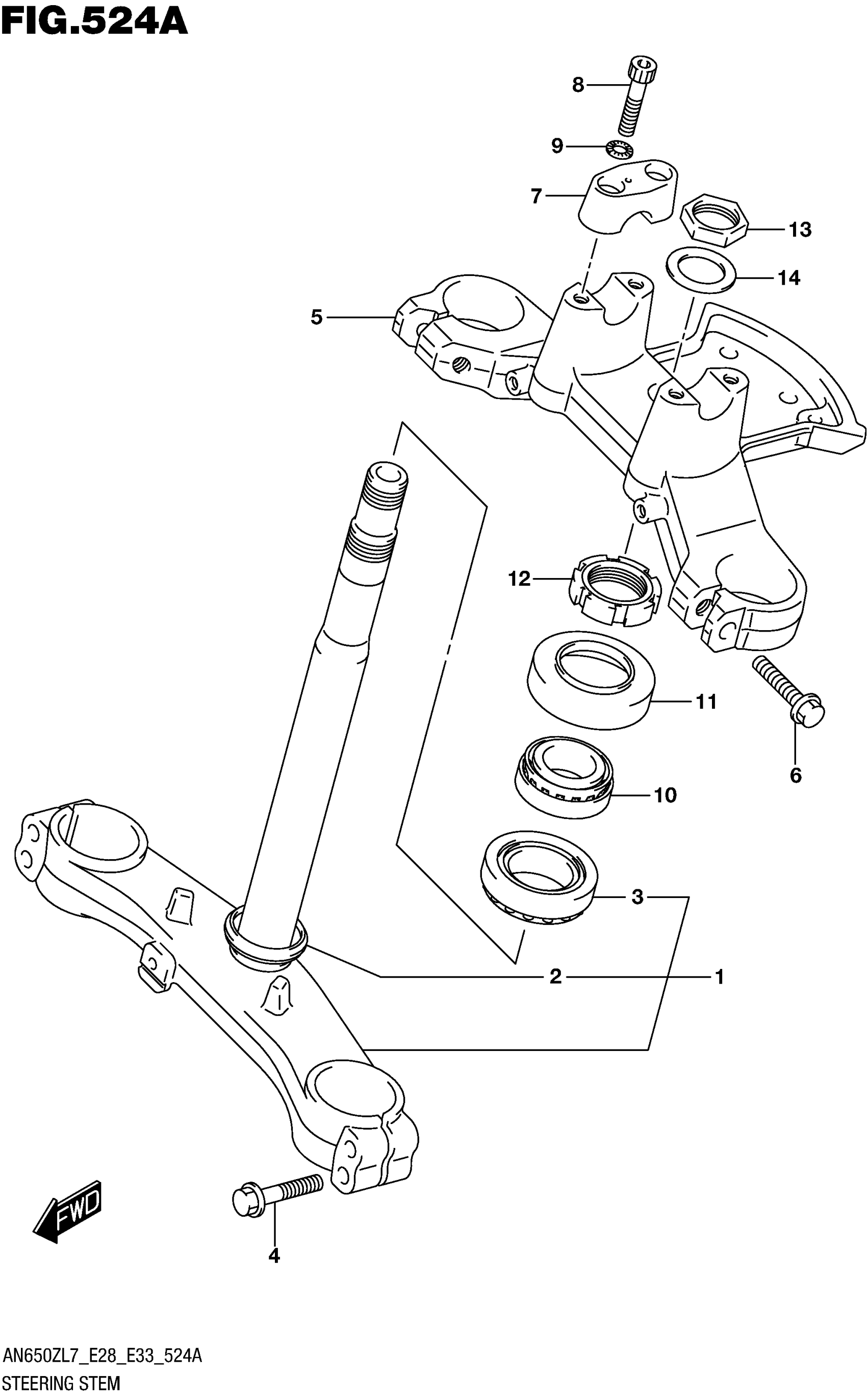

Suzuki AN650ZL7 (2017) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-10G90

Unavailable

2

.SEAL, LOWER

51644-12C00

$8.65

3

.BEARING (30X55X17)

09265-30020

$40.65

4

BOLT

51451-10G00

$4.81

5

HEAD, STEERING STEM

51311-10G90

Unavailable

6

BOLT

51352-10G00

$7.48

7

HOLDER, HANDLEBAR

56211-10G00

Unavailable

8

BOLT

07130-08307

$4.98

9

WASHER

09164-08015

$2.90

10

BEARING (25X47X15)

09265-25038

$41.11

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

12

NUT, STEERING STEM

51631-31F00

$22.42

13

NUT

51353-10G00

Unavailable

14

WASHER

51356-10D03

$8.47
