2017 Suzuki AN650ZL7 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

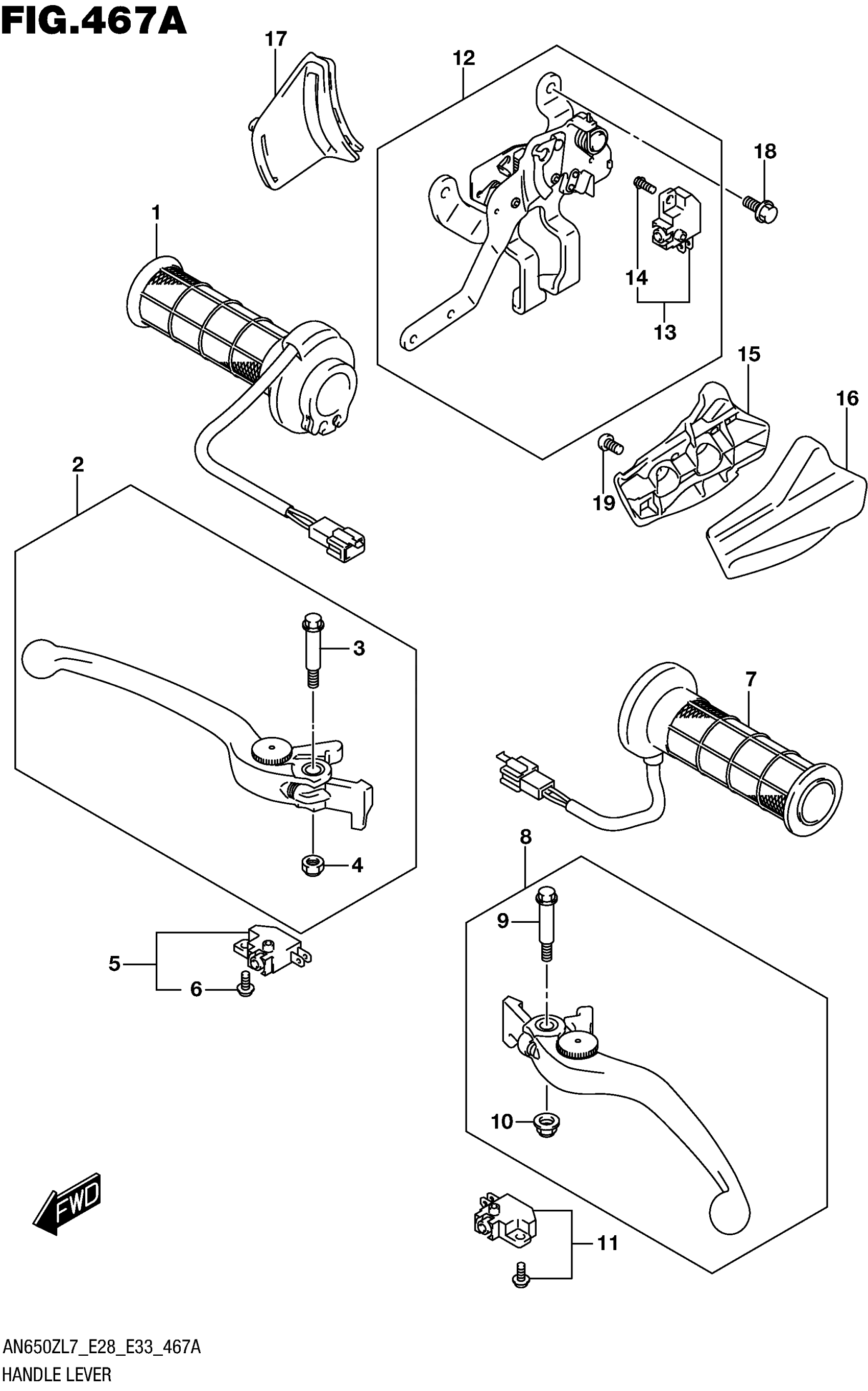

2017 Suzuki AN650ZL7 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEATER ASSY, THROTTLE GRIP

57110-05H21

1
Out of stock

2

LEVER ASSY, FRONT BRAKE

57300-10G32

1
Out of stock

3

.BOLT, PIVOT

57431-17H02

1
Out of stock

4

.NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

6

.SCREW

57465-17C00

1
Out of stock

7

HEATER ASSY, GRIP LH

57210-05H10

1
Out of stock

8

LEVER ASSY, REAR BRAKE

57500-10G32

1
Out of stock

9

.BOLT, PIVOT

57431-17H02

1
Out of stock

10

.NUT

08319-2106A

1
Out of stock

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

1
Out of stock

12

LEVER ASSY, BRAKE LOCK

57800-26J00

1
Out of stock

13

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

14

..SCREW

57465-17C00

1
Out of stock

15

KNOB, BRAKE LOCK

57821-26J00

1
Out of stock

16-1

GARNISH, BRAKE LOCK KNOB

57822-26J00-PGZ

1
Out of stock

16-1

(GRAY)

57822-26J00-PGZ

1
Out of stock

16-2

GARNISH, BRAKE LOCK KNOB

57822-26J00-RB5

1
Out of stock

16-2

(WHITE)

57822-26J00-RB5

1
Out of stock

16-3

GARNISH, BRAKE LOCK KNOB

57822-26J00-YKV

1
Out of stock

16-3

(BLACK)

57822-26J00-YKV

1
Out of stock

17

GROMMET, LEVER SEAL

57951-26J00

1
Out of stock

18

BOLT

01550-0612A

2
Out of stock

19

SCREW

02112-0508A

2
Out of stock
