2017 Suzuki AN650ZL7 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

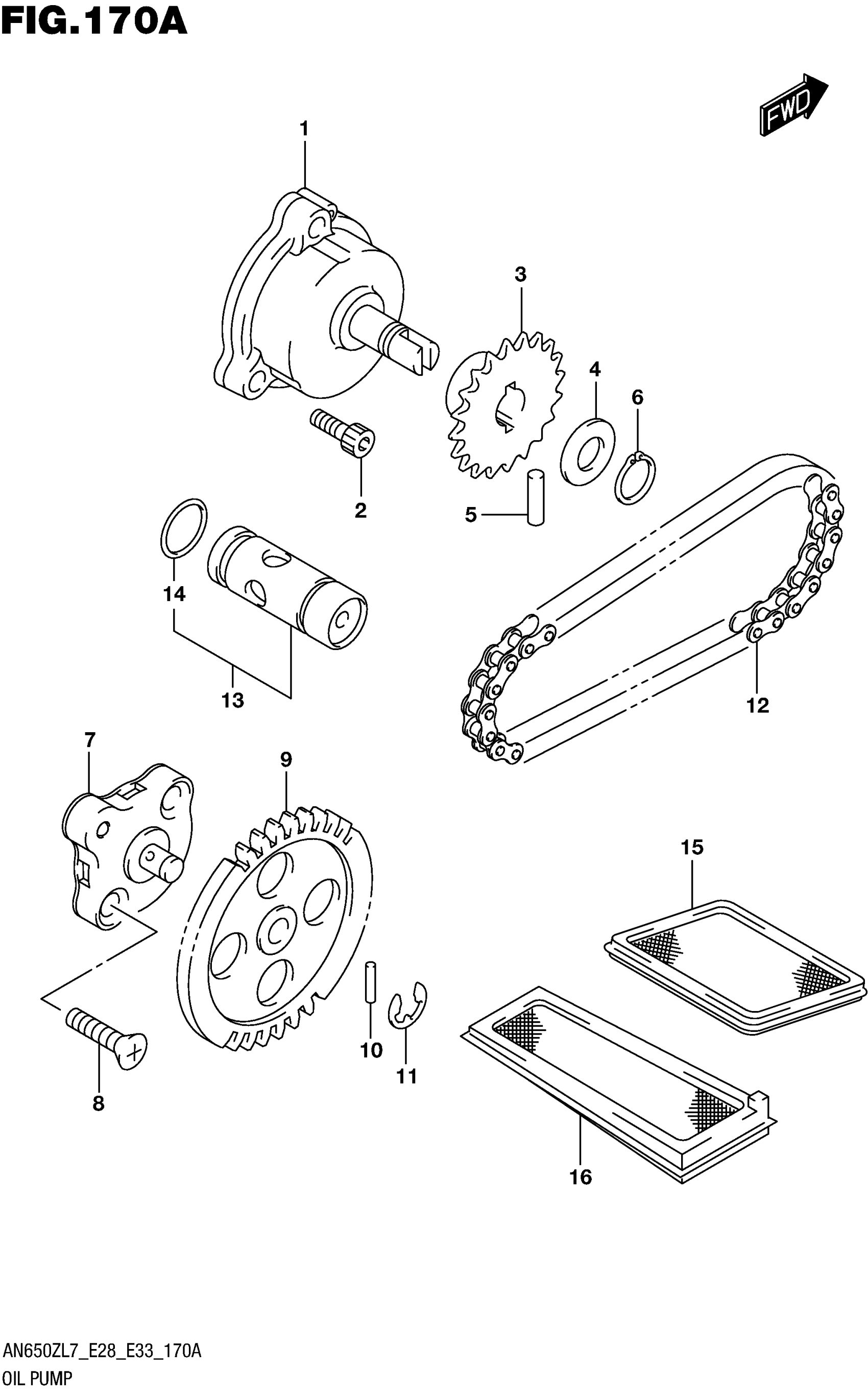

2017 Suzuki AN650ZL7 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, OIL NO.1

16400-10G00

1
Out of stock

2

BOLT (6X25)

07130-0625A

3
Out of stock

3

SPROCKET, DRIVEN NO.1 (NT:21)

16331-10G00

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

PIN (4X15.8)

09261-04009

1
Out of stock

6

CIRCLIP

08331-31109

1
Out of stock

7

PUMP ASSY, OIL NO.2

16400-10G10

1
Out of stock

8

SCREW

02122-0625A

2
Out of stock

9

GEAR, PUMP DRIVEN NO.2 (NT:35

16331-10G10

1
Out of stock

10

PIN

16421-20E00

1
Out of stock

11

CIRCLIP

16423-20E00

1
Out of stock

12

CHAIN, OIL PUMP DRIVE

16310-10G00

1
Out of stock

13

VALVE ASSY, OIL RELIEF

16440-10G00

1
Out of stock

14

.O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

15

STRAINER, ENGINE OIL

16520-10G00

1
Out of stock

16

STRAINER, ENGINE OIL NO.2

16530-10G00

1
Out of stock
