2017 Suzuki AN650ZL7 Crankcase Cover Diagram

← All diagrams

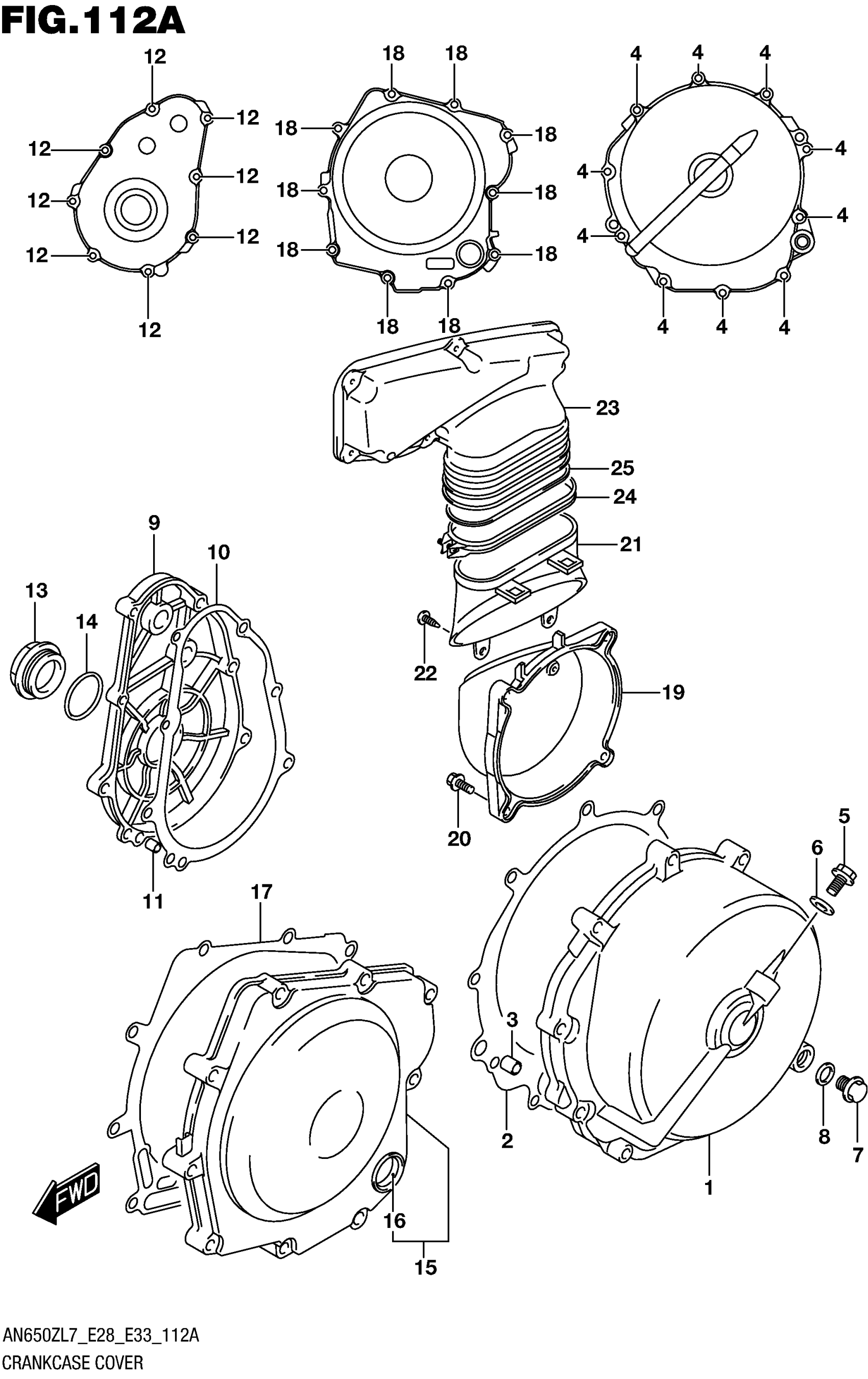

Find the part on the Crankcase Cover diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki AN650ZL7 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-10G00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-10G00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

BOLT

01547-0630A

10
Out of stock

5

BOLT (8X12)

01550-0812A

1
Out of stock

6

GASKET (8.2X14X1)

09168-08016

1
Out of stock

7

PLUG (12X10)

09247-12006

1
Out of stock

8

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

9

COVER, STARTER CLUTCH

11381-10G00

1
Out of stock

10

GASKET, STARTER CLUTCH COVER

11491-10G00

1
Out of stock

11

PIN

04211-09149

1
Out of stock

12

BOLT

01547-0625A

8
Out of stock

13

PLUG

09259-36021

1

$13.37

In stock

14

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

15

COVER, MAGNETO

11350-10G00

1
Out of stock

16

.LENS, OIL LEVEL

11971-33210

1
Out of stock

17

GASKET, MAGNETO COVER

11483-10G00

1
Out of stock

18

BOLT

01547-0630A

10
Out of stock

19

DUCT, BELT COOLING NO.1

11371-10G00

1
Out of stock

20

BOLT

01547-0625A

4
Out of stock

21

DUCT, BELT COOLING NO.2

11372-10G00

1
Out of stock

22

SCREW

03141-0512A

2
Out of stock

23

DUCT, BELT COOLING NO.3

11373-26J00

1
Out of stock

24

CLAMP, BELT COOLING DUCT

11374-10G00

1
Out of stock

25

GUIDE, BELT COOLING DUCT NO.3

11375-10G00

1
Out of stock
