2017 Suzuki AN650ZL7 Front LEG Shield Diagram

← All diagrams

Find the part on the Front LEG Shield diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

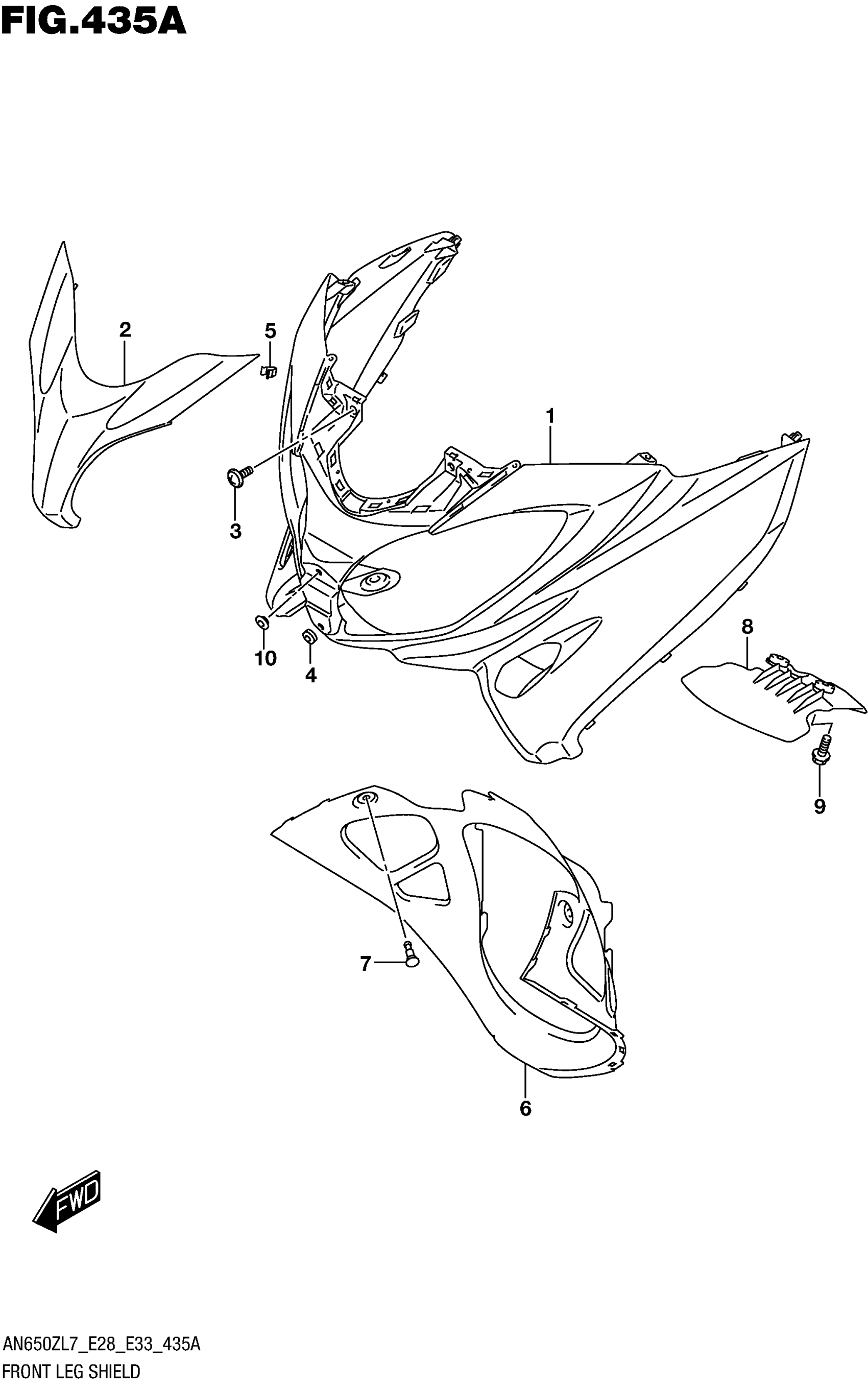

2017 Suzuki AN650ZL7 Front LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

SHIELD, LEG FRONT (GRAY)

48111-26J00-PGZ

1
Out of stock

1-2

SHIELD, LEG FRONT (WHITE)

48111-26J00-RB5

1
Out of stock

1-3

SHIELD, LEG FRONT (BLACK)

48111-26J00-YKV

1
Out of stock

2-1

COVER, FR LEG SHIELD (GRAY)

48131-26J01-PGZ

1
Out of stock

2-2

COVER, FR LEG SHIELD (WHITE)

48131-26J01-RB5

1
Out of stock

2-3

COVER, FR LEG SHIELD (BLACK)

48131-26J01-YKV

1
Out of stock

3

SCREW

09136-06002

4
Out of stock

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

1
Out of stock

5

CLIP

09409-08326

2
Out of stock

6

SHIELD, LEG LOWER

48137-26J50

1
Out of stock

7

CLIP, METER PANEL FRONT

94479-35F00

4
Out of stock

8

COVER, LOWER BRACKET

94458-10G00

1
Out of stock

9

BOLT (6X12)

09111-06107

2
Out of stock

10

CUSHION

09320-06026

1
Out of stock
