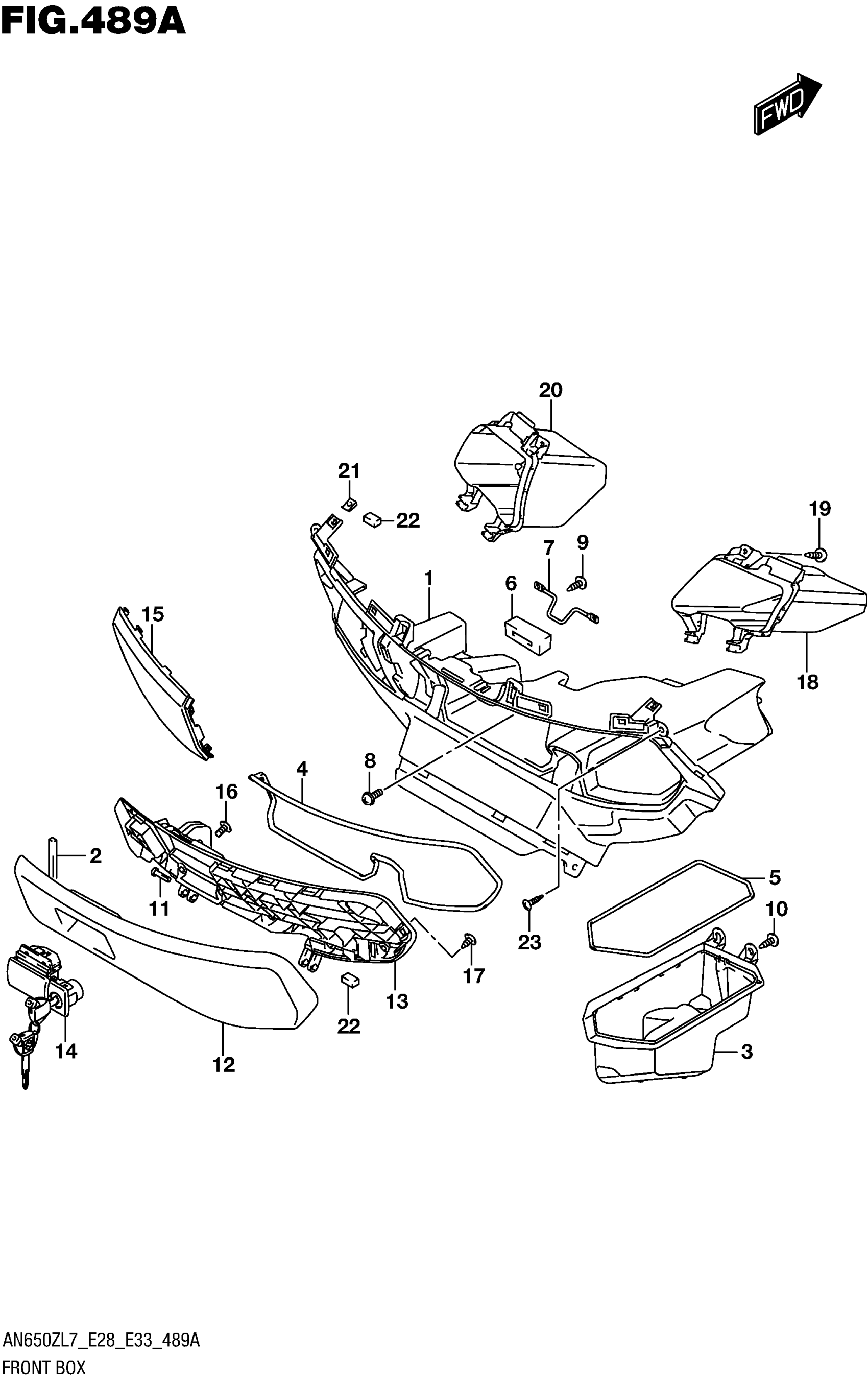

Suzuki AN650ZL7 (2017) FRONT BOX Diagram

#

Description
Price

1

BOX,FRONT This part replaces 92111-26J50.

92111-26J51

$104.27

2

CUSHION, FRONT BOX OUTER LID

92123-26J00

Unavailable

3

COVER, FRONT BOX INNER

92112-26J00

Unavailable

4

CUSHION, FRONT BOX NO.1

92114-26J00

$10.82

5

CUSHION, FRONT BOX INNER

92113-26J00

$4.63

6

CUSHION, FRONT BOX NO.3

92116-10G00

$9.08

7

STRIKER, FRONT BOX

92171-26J00

$6.53

8

SCREW (6X16)

09136-06157

$3.08

9

SCREW

03541-0516A

$1.37

10

SCREW

03541-0516A

$1.37

11

PIN, GLOVE BOX HINGE

73423-50G00

$5.75

12-1

LID, FRONT BOX OUTER (GRAY)

92121-26J00-PGZ

Unavailable

12-2

LID, FRONT BOX OUTER (WHITE)

92121-26J00-RB5

$126.75

12-3

LID, FRONT BOX OUTER (BLACK)

92121-26J00-YKV

$111.10

13

LID, FRONT BOX INNER

92122-26J50

$28.88

14

LOCK SET, LID

92100-10841

$185.10

15-1

LID, CLNR MAINT (GRAY)

92161-26J01-PGZ

$75.80

15-2

LID, CLNR MAINT (WHITE)

92161-26J01-RB5

$78.72

15-3

LID, CLNR MAINT (BLACK)

92161-26J01-YKV

$64.25

16

SCREW

02142-0512B

$1.90

17

SCREW

03541-0412B

$1.55

18

BOX, FRONT PANEL RH

92141-26J00

$25.16

19

SCREW

03541-0516A

$1.37

20

BOX, FRONT PANEL LH

92151-26J00

Unavailable

21

NUT

09148-05038

$1.97

22

CUSHION | CUT AS REQUIRED

17798-39G00

$6.12

23

SCREW

03541-0516A

$1.37
