2017 Suzuki AN650ZL7 Footboard Diagram

← All diagrams

Find the part on the Footboard diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

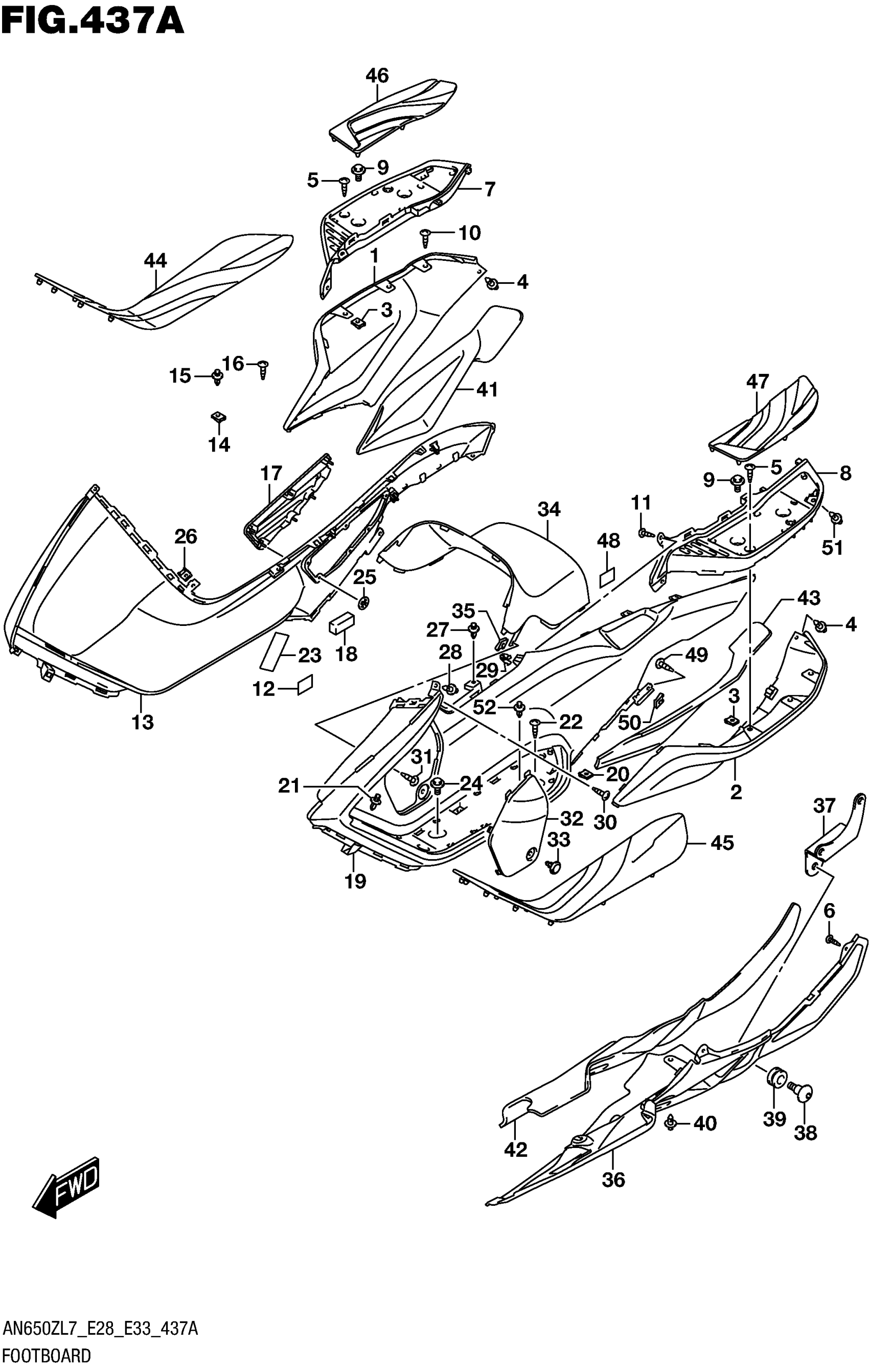

2017 Suzuki AN650ZL7 Footboard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTBOARD,REAR This part replaces 48127-26J01-YKV.

48127-26J20-YKV

1
Out of stock

1

FOOTBOARD,REAR This part replaces 48127-26J01-YKV.

48127-26J20-YKV

1
Out of stock

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

1
Out of stock

2

FOOTBOARD,REAR This part replaces 48128-26J01-YKV.

48128-26J20-YKV

1
Out of stock

3

NUT

09148-05038

4
Out of stock

4

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

5

SCREW

03541-0512A

4
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

FOOTBOARD, REAR UPPER RH

48125-26J50

1
Out of stock

8

FOOTBOARD, REAR UPPER LH

48126-26J50

1
Out of stock

9

BOLT (6X14.8)

09111-06109

4
Out of stock

10

SCREW

03541-0512A

2
Out of stock

11

SCREW

03541-0516A

2
Out of stock

12

CUSHION, FOOTBOARD NO.2

33652-13G00

1
Out of stock

13

FOOTBOARD, RH

48120-26J50

1
Out of stock

14

.NUT

09148-05038

3
Out of stock

15

.CLIP (BLACK)

09409-06314-5PK

4
Out of stock

16

.SCREW

03541-0512A

3
Out of stock

17

LOUVER, AIR RH

48123-26J50

1
Out of stock

18

CUSHION, FOOTBOARD NO.1

48127-10G00

2
Out of stock

19

FOOTBOARD, LH

48130-26J50

1
Out of stock

20

.NUT

09148-05038

4
Out of stock

21

.CLIP (BLACK)

09409-06314-5PK

3
Out of stock

22

.SCREW

03541-0512A

4
Out of stock

23

SHIELD, FOOTBOARD RH

48327-26J00

1
Out of stock

24

BOLT (6X14.8)

48196-26J00

—
Out of stock

25

NUT

09148-03010

6
Out of stock

26

NUT

09148-05038

2
Out of stock

27

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

28

CLIP

09409-06329

2
Out of stock

29

CLIP

09409-08326

4
Out of stock

30

SCREW

03541-0516A

2
Out of stock

31

SCREW

03541-0516A

1
Out of stock

32

LID,MAINTENANCE This part replaces 48191-26J50.

48191-26J51

1
Out of stock

33

CLIP, MAINTENANCE LID

94479-35F00

1
Out of stock

34

COVER, CENTER

48124-26J50

1
Out of stock

35

NUT

09148-05038

1
Out of stock

36

COVER, UNDER CTR

48138-26J50

1
Out of stock

37

BRACKET, UNDER COVER

48330-10G00

1
Out of stock

38

BOLT (6X20)

09139-06190

2
Out of stock

39

CUSHION

09320-09016

2
Out of stock

40

CLIP

09409-07333

2
Out of stock

41

CUSHION,RR FOOT This part replaces 48313-26J00.

48313-26J01

1
Out of stock

42

CUSHION, UNDER COVER LOWER

48316-26J00

1
Out of stock

43

CUSHION, REAR FOOTBOARD LOWER

48323-26J00

1
Out of stock

44

MAT,FLOOR FR RH This part replaces 48211-26J00-291.

48211-26JA0-291

1
Out of stock

45

MAT,FLOOR FR LH This part replaces 48221-26J00-291.

48221-26JA0-291

1
Out of stock

46

MAT,FLOOR RR RH This part replaces 48231-26J00-291.

48231-26JA0-291

1
Out of stock

47

MAT,FLOOR RR LH This part replaces 48241-26J00-291.

48241-26JA0-291

1
Out of stock

48

CUSHION, FOOTBOARD NO.3

17798-29E30

1
Out of stock

49

SCREW

03541-0516A

2
Out of stock

50

NUT

09148-05038

2
Out of stock

51

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

52

CLIP (BLACK) | LH

09409-06314-5PK

1
Out of stock
