2016 Suzuki AN650L6 Seat Diagram

← All diagrams

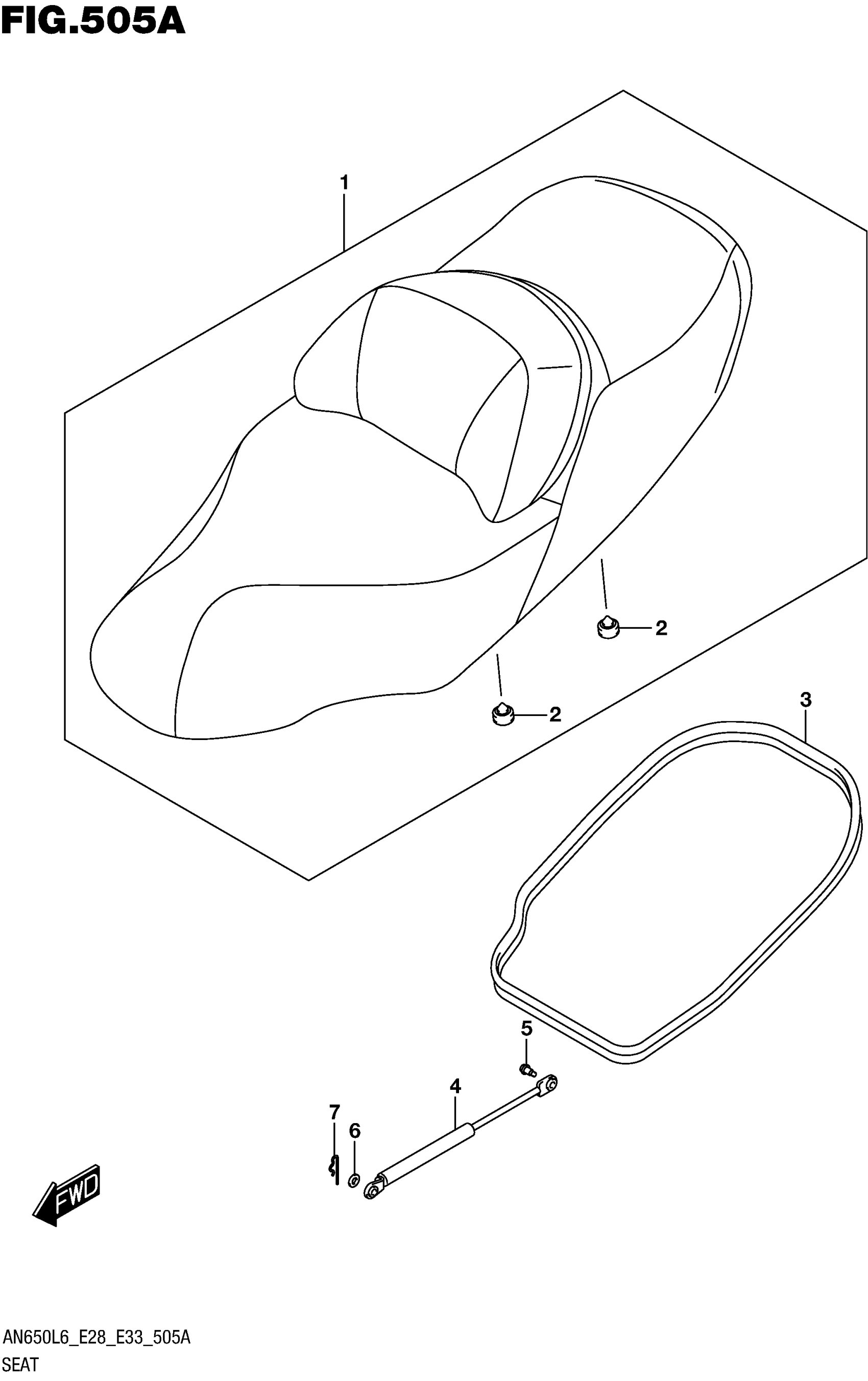

Find the part on the Seat diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki AN650L6 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,080.80

In stock

2

.CUSHION (11.5X22X20)

09321-10002

4

$2.35

In stock

3

MOLDING, SEAT

45211-26J00

1
Out of stock

4

DAMPER ASSY, SEAT

45270-26J00

1

$136.03

In stock

5

BOLT (6X18.6)

09111-06112

1
Out of stock

6

WASHER

08322-0108A

1

$2.27

In stock

7

PIN

09385-08003

1

$1.87

In stock
