2016 Suzuki AN650L6 Rear View Mirror Diagram

← All diagrams

Find the part on the Rear View Mirror diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

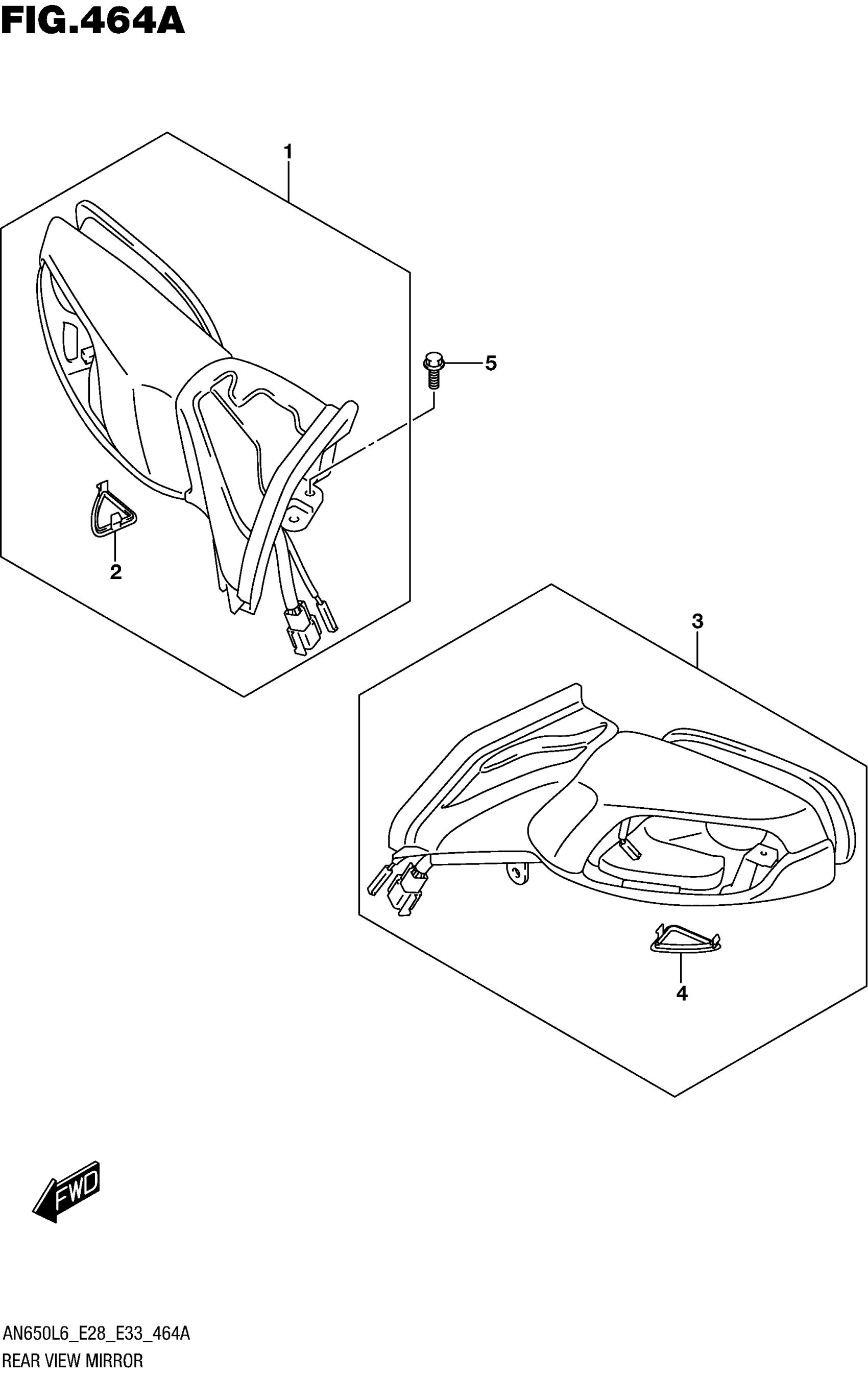

2016 Suzuki AN650L6 Rear View Mirror Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

MIRROR ASSY,REA This part replaces 56500-26J03-PGZ.

56500-26J04-PGZ

1
Out of stock

1-1

MIRROR ASSY,REA This part replaces 56500-26J03-PGZ.

56500-26J04-PGZ

1
Out of stock

1-2

MIRROR ASSY,REA This part replaces 56500-26J03-RB5.

56500-26J04-RB5

1
Out of stock

1-2

MIRROR ASSY,REA This part replaces 56500-26J03-RB5.

56500-26J04-RB5

1
Out of stock

1-3

MIRROR ASSY,REA This part replaces 56500-26J03-YKV.

56500-26J04-YKV

1
Out of stock

1-3

MIRROR ASSY,REA This part replaces 56500-26J03-YKV.

56500-26J04-YKV

1
Out of stock

2

.CAP

56581-26J00

—
Out of stock

3-1

MIRROR ASSY,REA This part replaces 56600-26J03-PGZ.

56600-26J04-PGZ

1
Out of stock

3-1

MIRROR ASSY,REA This part replaces 56600-26J03-PGZ.

56600-26J04-PGZ

1
Out of stock

3-2

MIRROR ASSY,REA This part replaces 56600-26J03-RB5.

56600-26J04-RB5

1
Out of stock

3-2

MIRROR ASSY,REA This part replaces 56600-26J03-RB5.

56600-26J04-RB5

1
Out of stock

3-3

MIRROR ASSY,REA This part replaces 56600-26J03-YKV.

56600-26J04-YKV

1
Out of stock

3-3

MIRROR ASSY,REA This part replaces 56600-26J03-YKV.

56600-26J04-YKV

1
Out of stock

4

.CAP

56681-26J00

—
Out of stock

5

BOLT

01550-0616A

6
Out of stock
